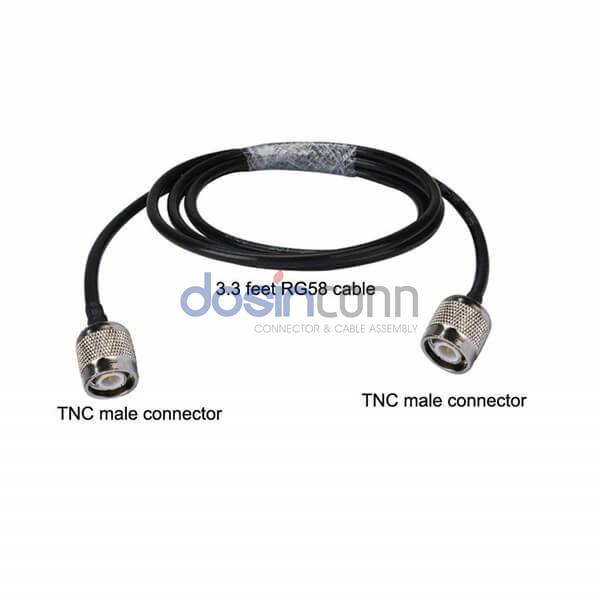

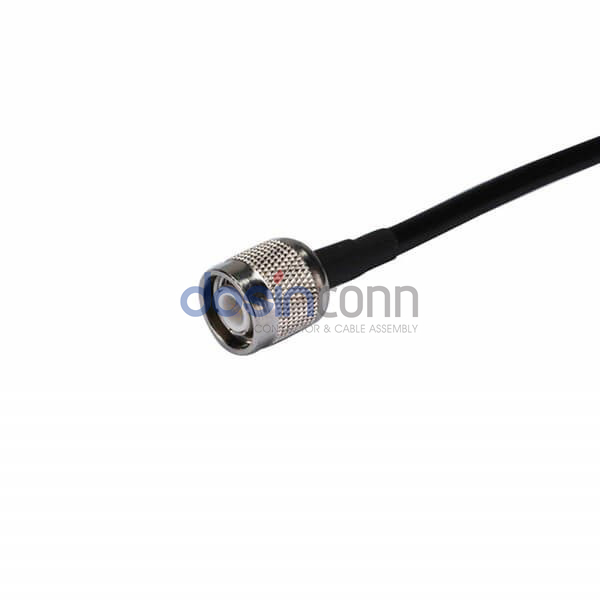

TNC Plug to TNC Plug RF Cable Assemblies 100cm RG58 Cable 50ohm

Part NO.: R02-T01-10002-100 Category:

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Applications

Basic Specifications

Style

TNC to TNC
1st Connector

TNC Plug
1st Contact Gender

Male
1st Connector Orientation

Straight
2nd Connector

TNC Plug
2nd Contact Gender

Male
2nd Connector Orientation

Straight
Cable Type

Cable Length

1m

Electrical Specifications

Impedance

50 Ξ©
Frequency Range

0-14GHz
Style

TNC to TNC
1st Connector

TNC Plug
1st Contact Gender

Male
1st Connector Orientation

Straight
2nd Connector

TNC Plug
2nd Contact Gender

Male
2nd Connector Orientation

Straight
Impedance

50 Ξ©
Frequency Range

0-14GHz
Cable Type

Cable Length

1m
