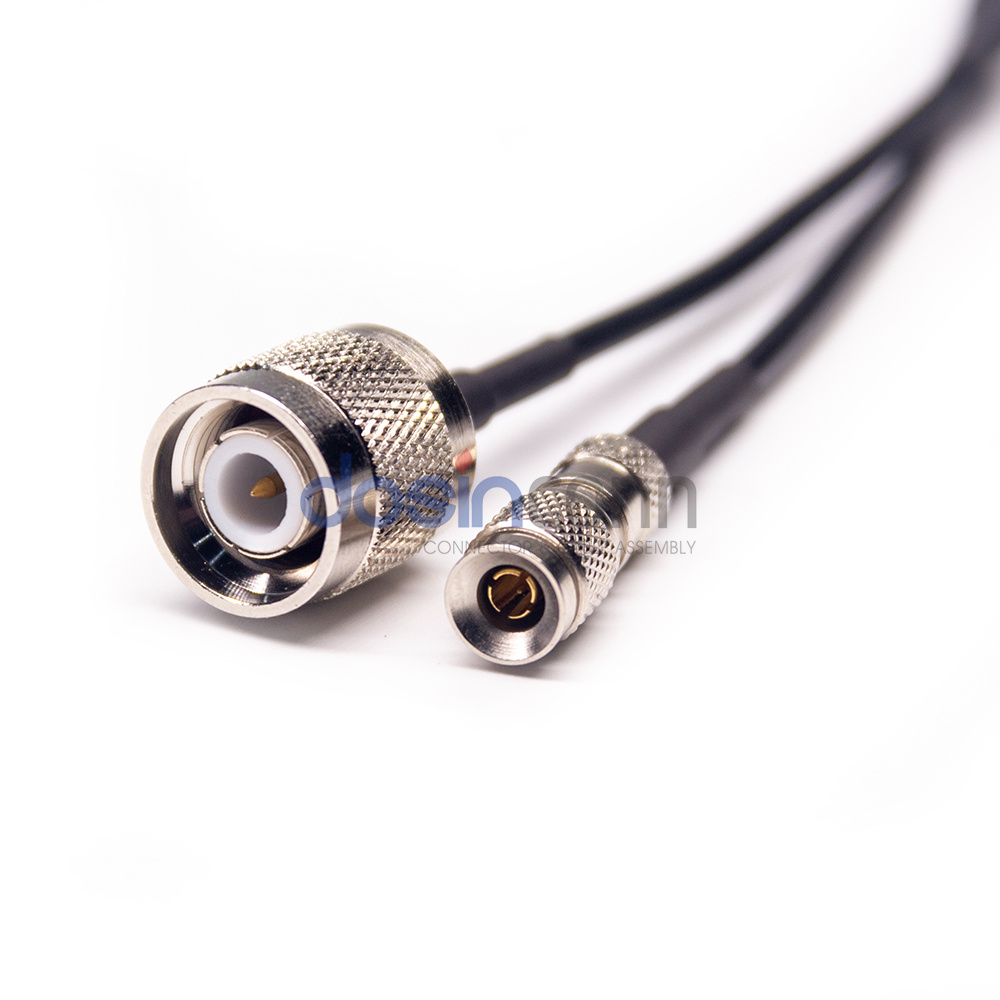

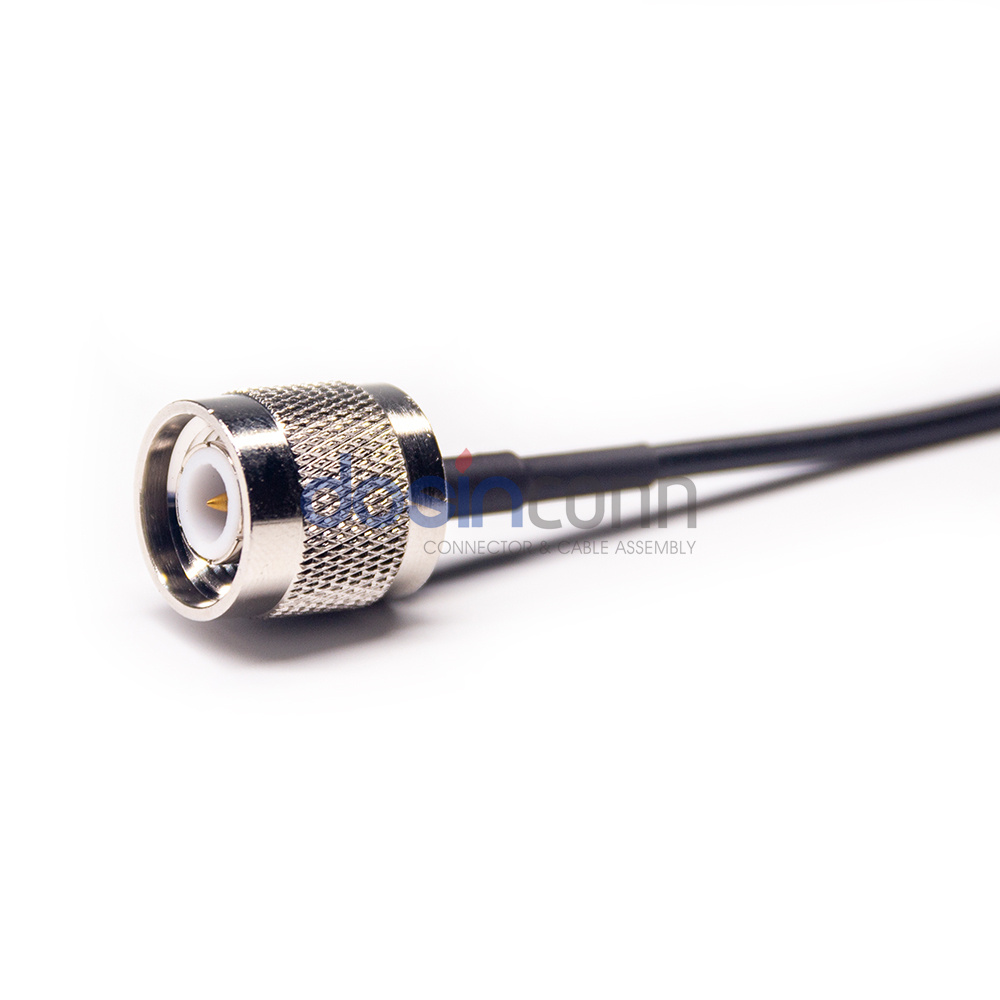

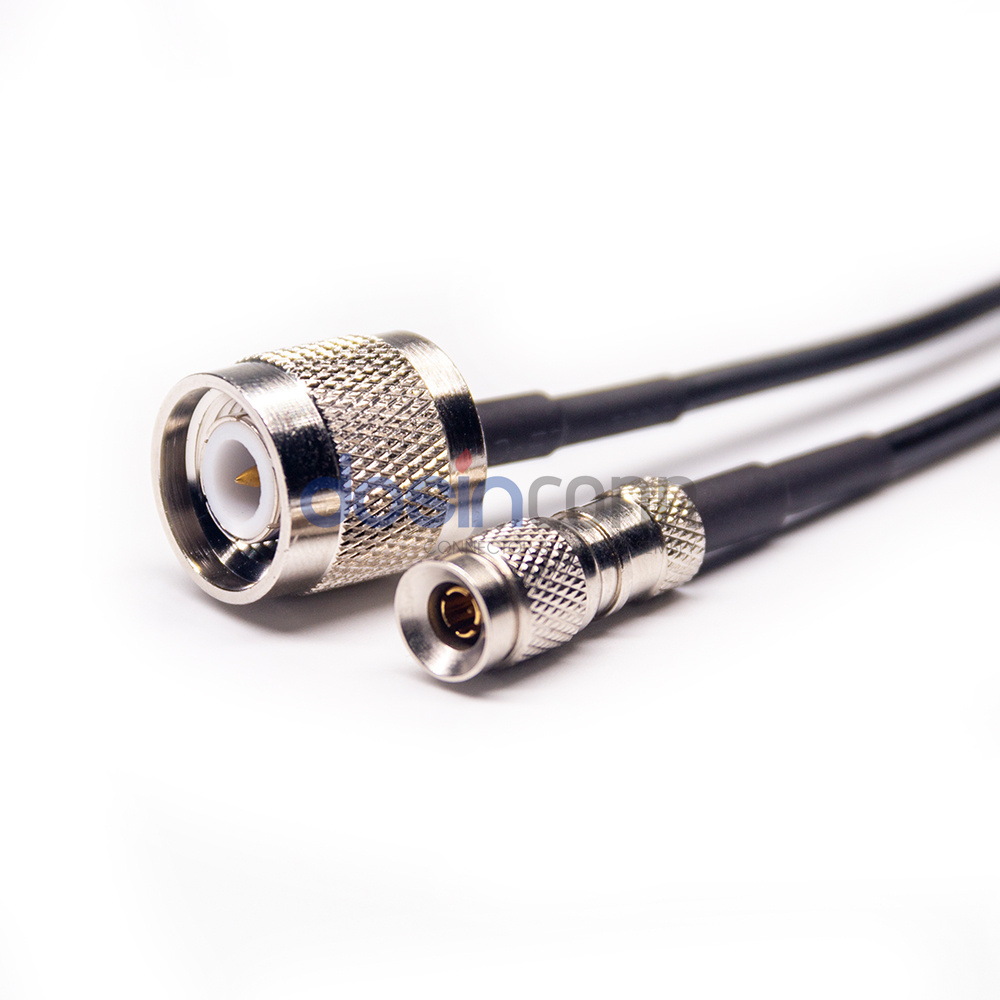

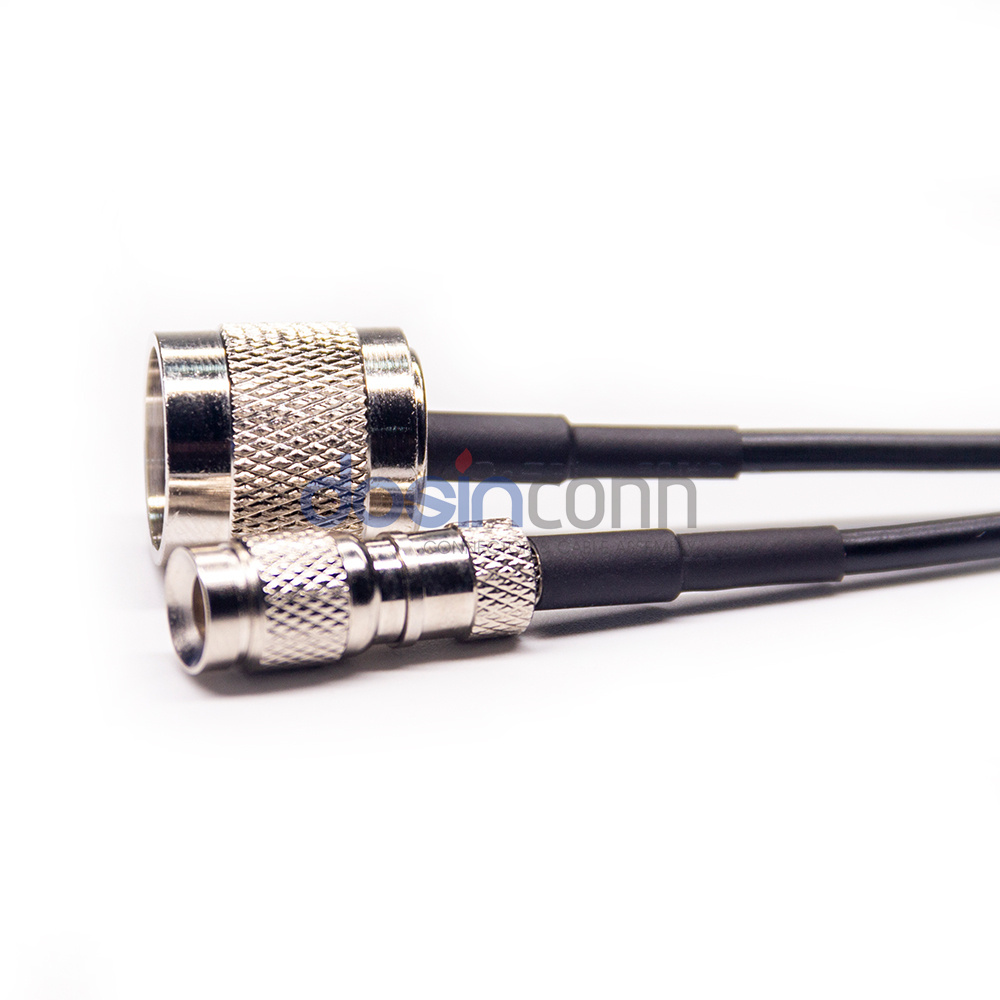

TNC Plug to 1.0/2.3 Plug RF Cable Assemblies 20cm RG174 Cable 50ohm

Part NO.: R02-T01-10015-20 Category:

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Applications

Basic Specifications

Style

TNC to 1.0/2.3
1st Connector

TNC Plug
1st Contact Gender

Male
1st Connector Orientation

Straight
2nd Connector

1.0/2.3 Plug
2nd Contact Gender

Male
2nd Connector Orientation

Straight
Cable Type

Cable Length

20cm

Electrical Specifications

Impedance

50 Ξ©
Frequency Range

0-14GHz
Style

TNC to 1.0/2.3
1st Connector

TNC Plug
1st Contact Gender

Male
1st Connector Orientation

Straight
2nd Connector

1.0/2.3 Plug
2nd Contact Gender

Male
2nd Connector Orientation

Straight
Impedance

50 Ξ©
Frequency Range

0-14GHz
Cable Type

Cable Length

20cm
