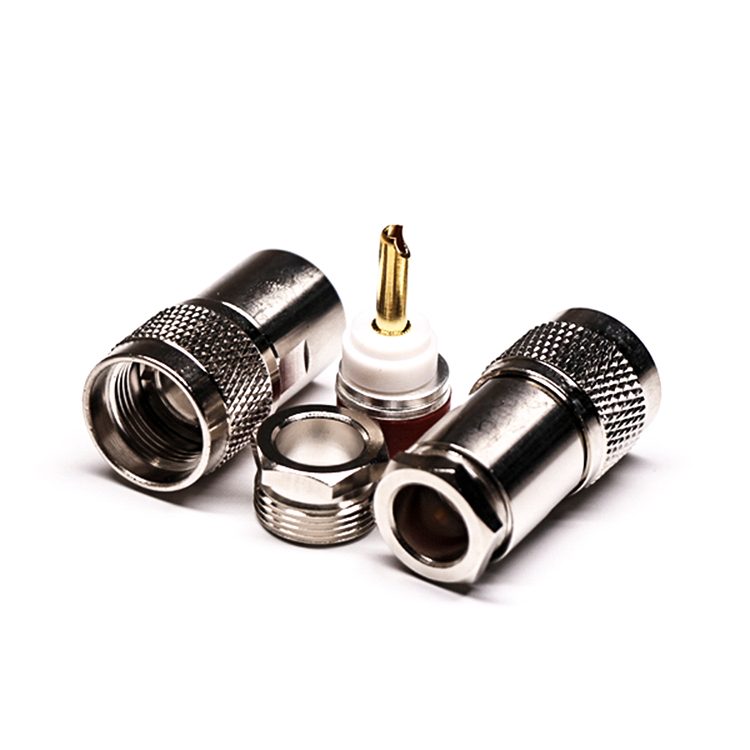

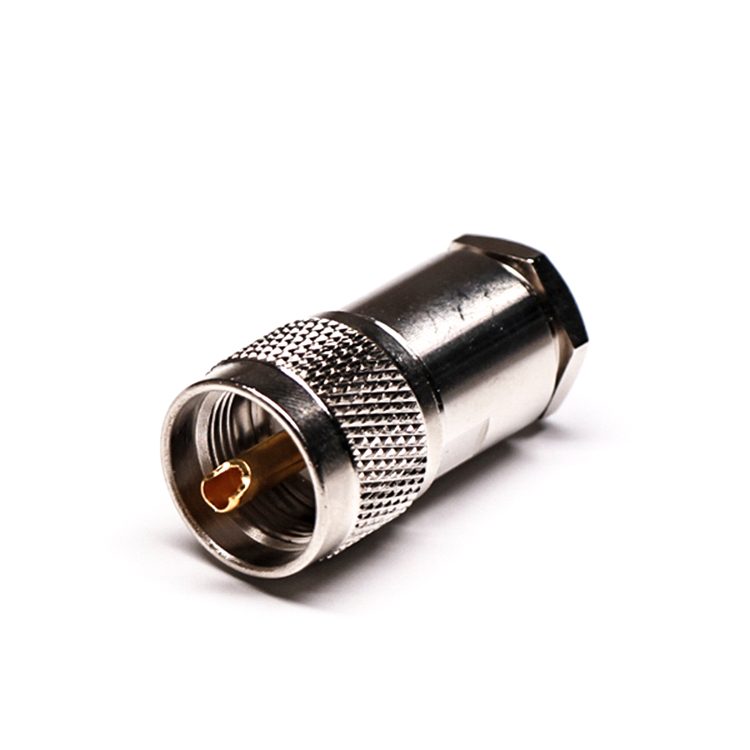

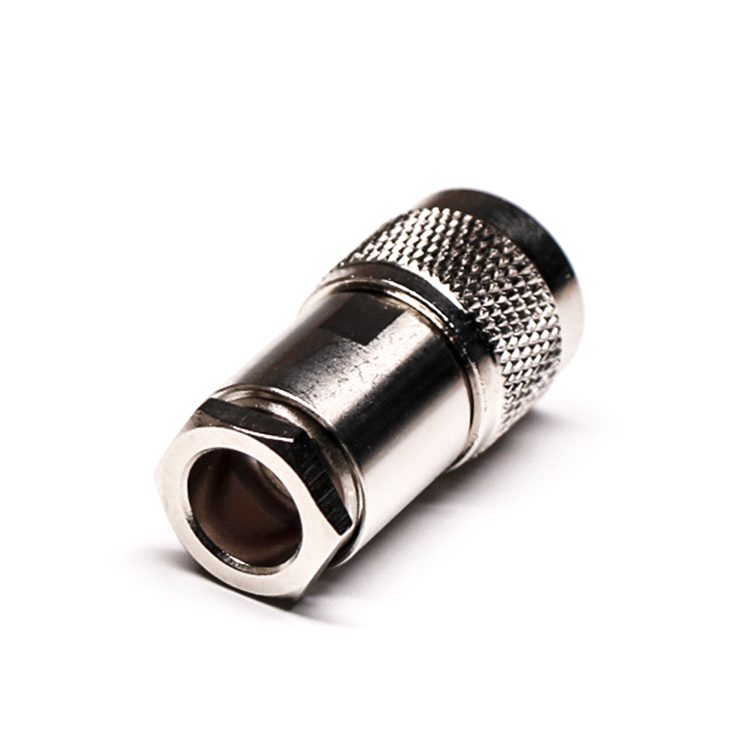

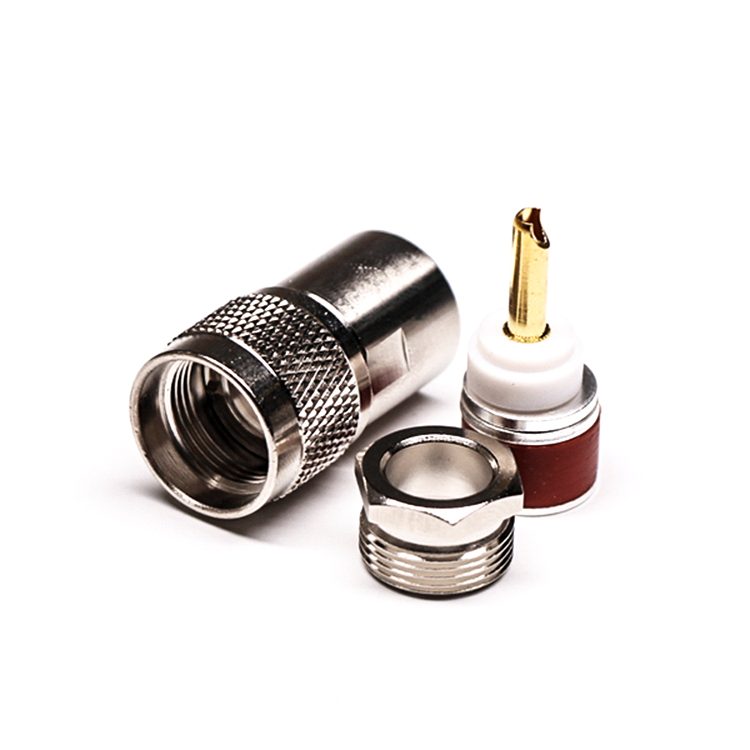

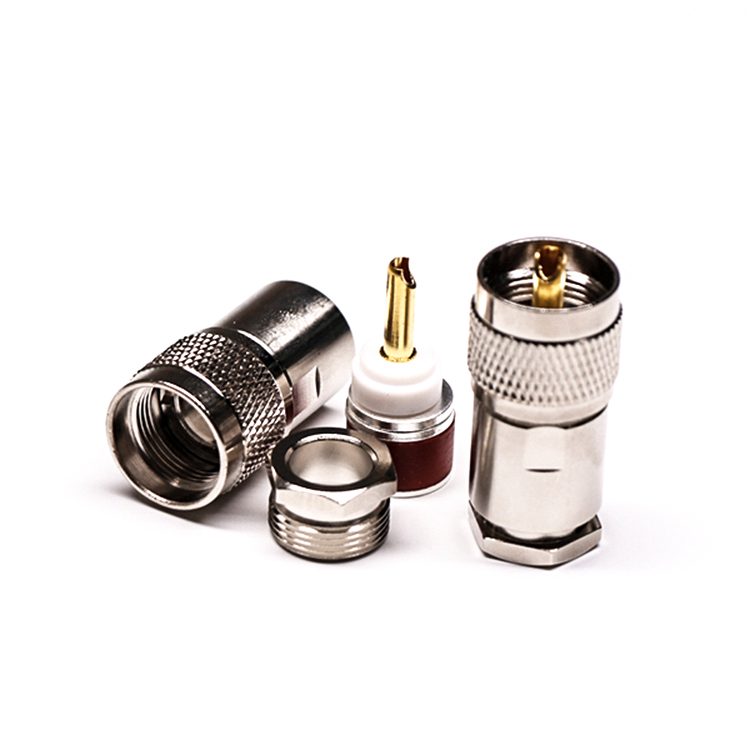

Straight UHF Male Clamp Cable Type

Part NO.: DOSIN-847-0104 Category:

Authorized Sellers

  • Can be Customized for unique material or performance requirements
  • Designed for low-frequency systems from 0.6-300MHz
  • The threaded coupling mechanism is easy to assembly with high durability
  • Reduce your cost for simple spec demands

UHF connector is designed in World War II or earlier, and invented in the 1930’s by an Amphenol engineer Edward Clarke Quackenbush for use in the radio industry. The most popular cable plug and corresponding chassis-mount socket carry the old Signal Corps nomenclatures PL-259 (plug) and SO-239 (socket).

The UHF connector is a name for a threaded RF connector. UHF coax connectors reliably carry signals at frequencies up to 100 MHz with thread coupling. Widely used for Antennas, Public Address Systems, Low-frequency applications, etc.

UHF

UHF Cable Connector

UHF

UHF PCB/Panel Connector

UHF Connector

UHF Connector Interface

Application

Basic Specifications

RF Series

UHF Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Shield Termination

Mounting Type

Number of Ports

Body Material

Body Plating

Nickel Plating

Insulator Material

Teflon White

Contact Material

Brass

Contact Plating

Silver Plating

Mechanical Specifications

Fastening Type

5/8-24 Threaded

Mating Durability

β‰₯500 cycles (For Beryllium Copper Contact)

Electrical Specifications

Impedance

50 Ξ©

Frequency - Max

300MHz

Insultation Resistance

5000 MΩ Min

RF Series

UHF Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Shield Termination

Mounting Type

Fastening Type

5/8-24 Threaded

Number of Ports

Impedance

50 Ξ©

Frequency - Max

300MHz

Body Material

Body Plating

Nickel Plating

Insulator Material

Teflon White

Contact Material

Brass

Contact Plating

Silver Plating

Insultation Resistance

5000 MΩ Min

Mating Durability

β‰₯500 cycles (For Beryllium Copper Contact)



Download Drawing
