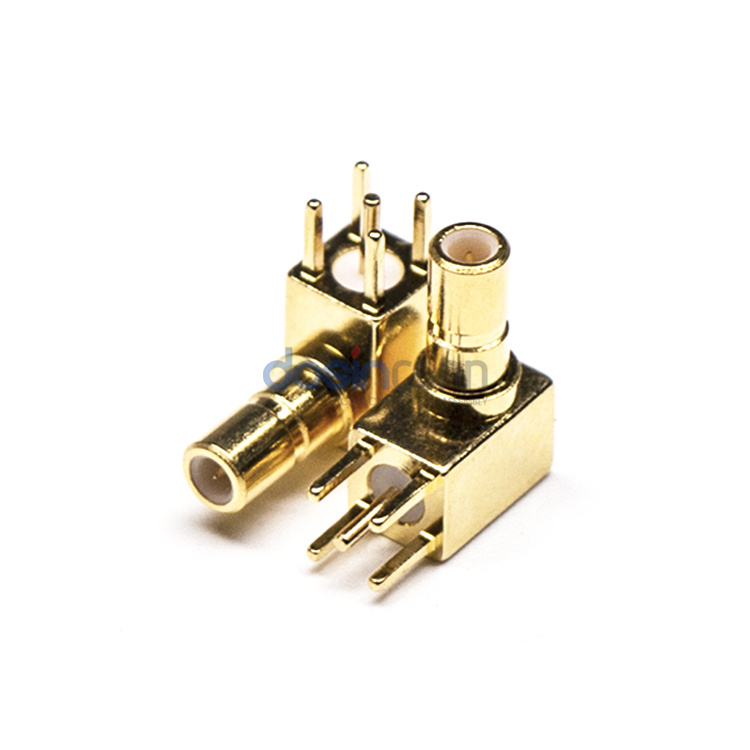

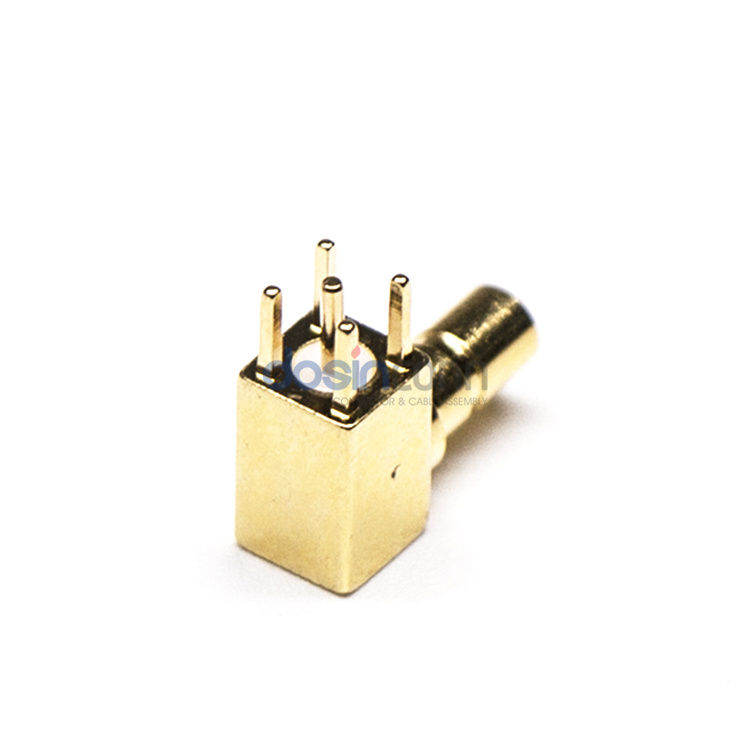

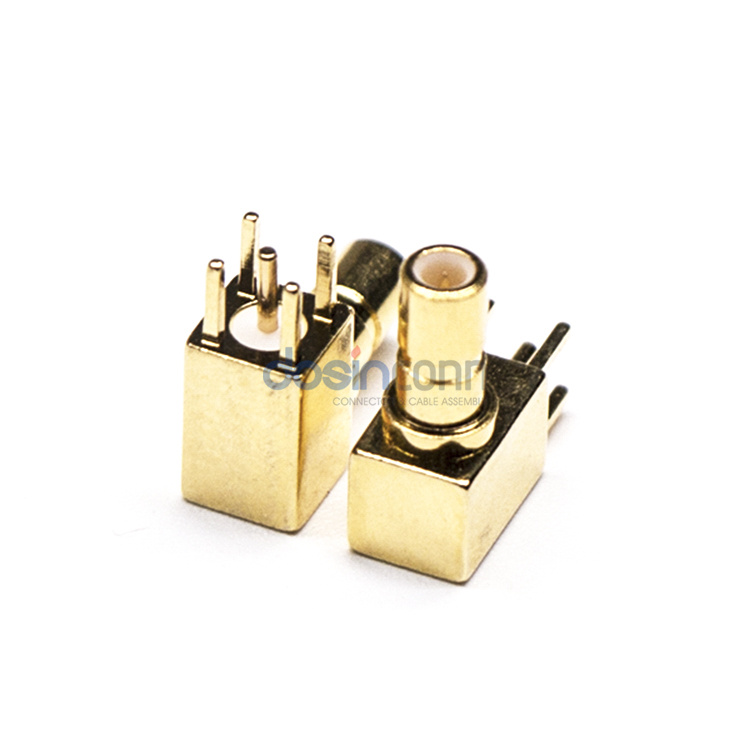

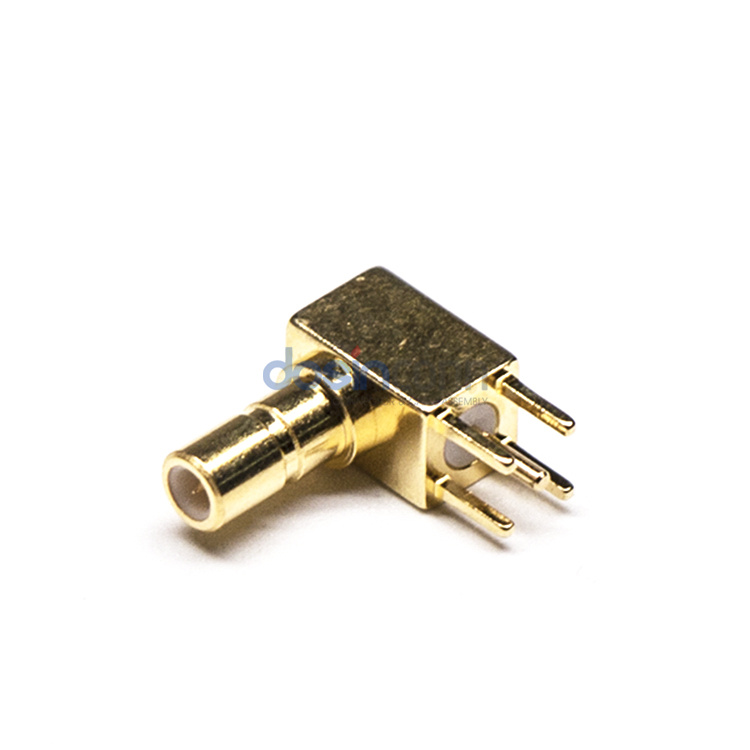

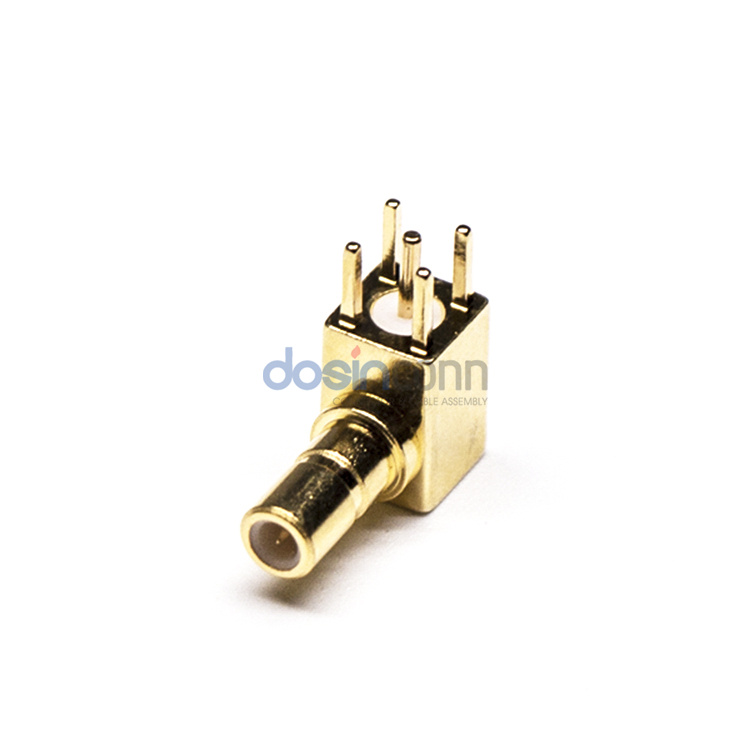

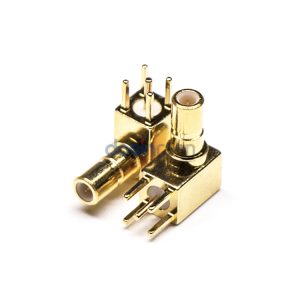

SSMB connector is an alternative to larger connectors like SMA and SMB connectors. With quick snap-on mating design for fast connection. It has compact design, high durability, and outstanding electronic performance have made it one of the most widely used connectors in RF and Microwave applications across the board.
| RF Series | SSMB Type |
|---|---|
| Connector Type | Jack |
| Orientation | Right Angle |
| Contact Type | Female Pin |
| Contact Termination Style | |
| Shield Termination | |
| Mounting Type | |
| Mounting Feature | |
| Number of Ports | |
| Body Material | |
| Body Plating | Gold Plating |
| Insulator Material | Teflon White |
| Contact Material | Brass |
| Contact Plating | Gold Plating |
| Fastening Type | Snap On |
|---|---|
| Mating Durability | β₯ 500 Cycles |
| Impedance | 50 Ξ© |
|---|---|
| Frequency Range | 0~8 GHz |
| VSWR | 1.5MAX |
| Insultation Resistance | 5000 M⦠Min |
| Working Voltage | 500 V rms |
| Temperature Range | β65Β°C to +165Β°C |
|---|
| RF Series | SSMB Type |
|---|---|
| Connector Type | Jack |
| Orientation | Right Angle |
| Contact Type | Female Pin |
| Contact Termination Style | |
| Shield Termination | |
| Mounting Type | |
| Mounting Feature | |
| Fastening Type | Snap On |
| Number of Ports | |
| Impedance | 50 Ξ© |
| Frequency Range | 0~8 GHz |
| Body Material | |
| Body Plating | Gold Plating |
| Insulator Material | Teflon White |
| Contact Material | Brass |
| Contact Plating | Gold Plating |
| VSWR | 1.5MAX |
| Insultation Resistance | 5000 M⦠Min |
| Temperature Range | β65Β°C to +165Β°C |
| Working Voltage | 500 V rms |
| Mating Durability | β₯ 500 Cycles |
