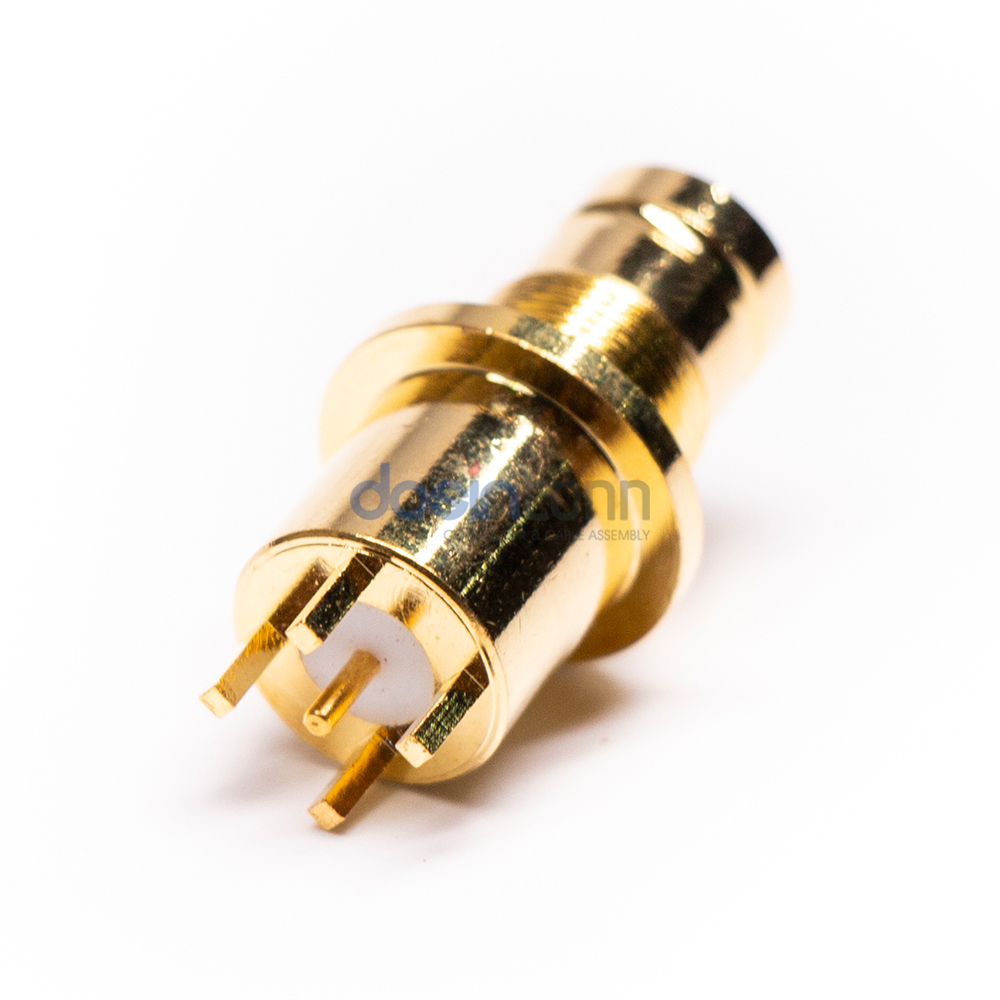

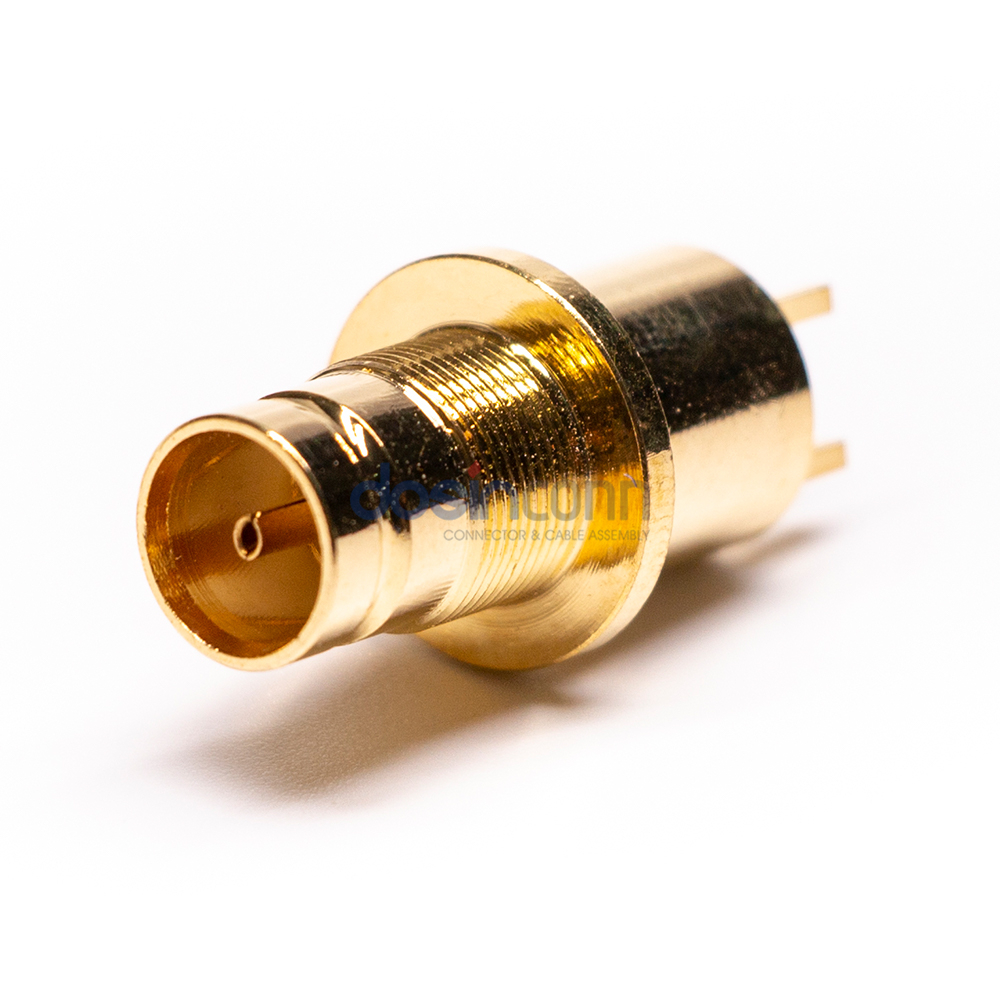

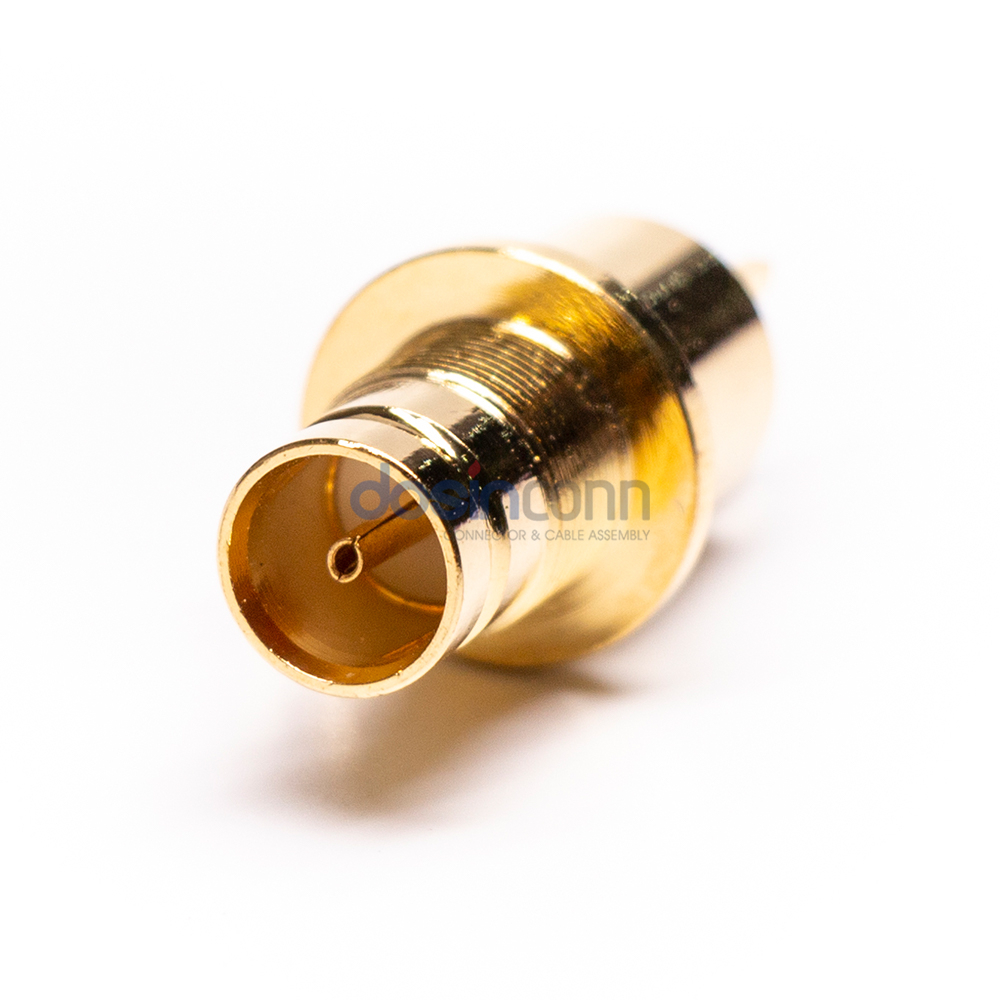

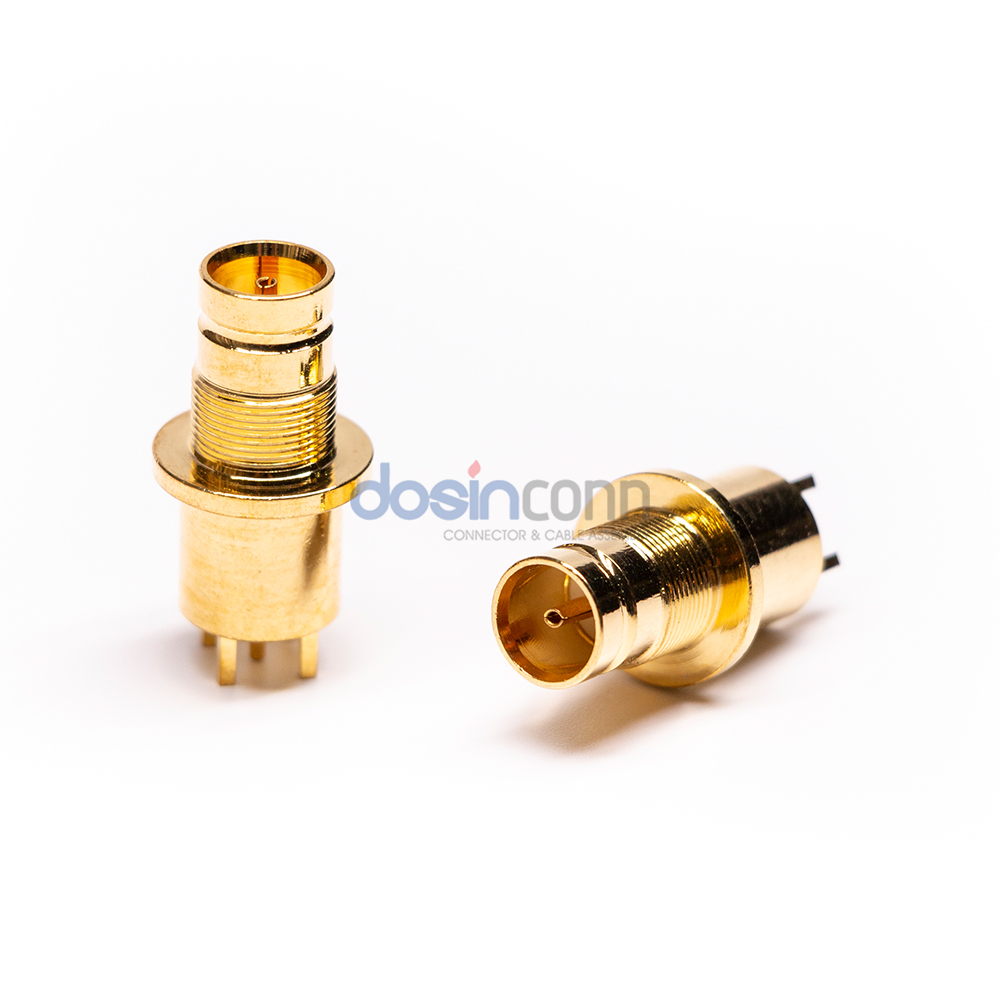

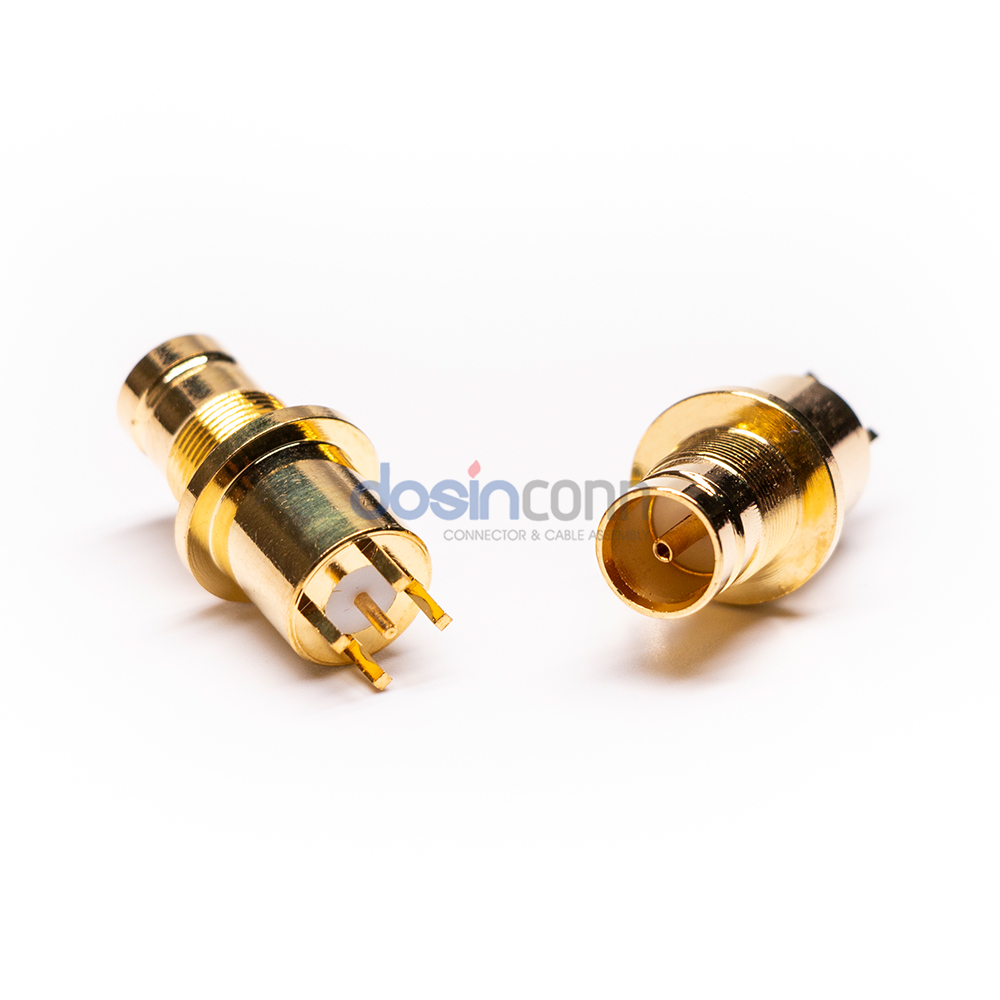

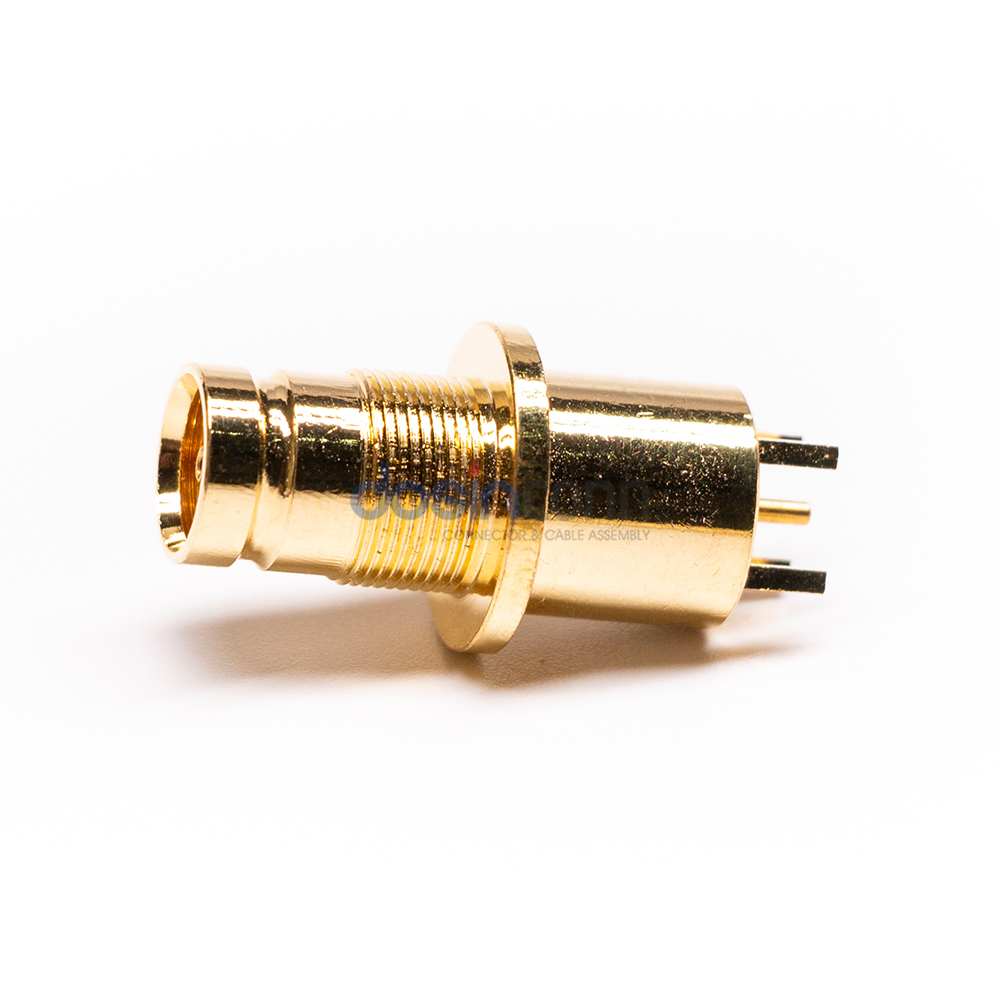

Straight DIN 1.6/5.6 Jack Solder Panel Mount Through Hole 75ohm

Part NO.: RHT-618-0688 Category:

Authorized Sellers

  • Quick connect and disconnect
  • Space-saving compact design
  • Ideal for high vibration applications
  • Available for a wide variety of cable types
  • Delivers high conductivity and corrosion resistance
  • Self-flared design uses standard hand tools for easy installation

The 1.6-5.6 series performs at 75 ohm up to 1 GHz. The 1.6-5.6 product series has two coupling versions: threaded and push-pull. The threaded coupling version provides positive, familiar mating, while the push-pull coupling version allows quick installation.

DIN 1.6/5.6 Connector Interface





Basic Specifications

RF Series

DIN 1.6/5.6
Connector Type

Jack
Orientation

Straight
Contact Type

Female Pin
Contact Termination Style

Shield Termination

Mounting Type

Mounting Feature

Number of Ports

Body Material

Body Plating

Gold Plating
Insulator Material

PTFE
Contact Material

Beryllium Copper
Contact Plating

Gold Plating

Mechanical Specifications

Fastening Type

Push-Pull
Mating Durability

β‰₯ 500 Cycles

Electrical Specifications

Impedance

75 Ξ©
Rated Voltage

335 Volts RMS Continuous
Dielectric Withstanding Voltage

1000 VRMS Max
Frequency Range

DC-1GHz

Environmental Specifications

Temperature Range

βˆ’40Β°C to +155Β°C
RF Series

DIN 1.6/5.6
Connector Type

Jack
Orientation

Straight
Contact Type

Female Pin
Contact Termination Style

Shield Termination

Mounting Type

Mounting Feature

Fastening Type

Push-Pull
Number of Ports

Impedance

75 Ξ©
Body Material

Body Plating

Gold Plating
Insulator Material

PTFE
Contact Material

Beryllium Copper
Contact Plating

Gold Plating
Rated Voltage

335 Volts RMS Continuous
Dielectric Withstanding Voltage

1000 VRMS Max
Temperature Range

βˆ’40Β°C to +155Β°C
Mating Durability

β‰₯ 500 Cycles
Frequency Range

DC-1GHz



Download Drawing
