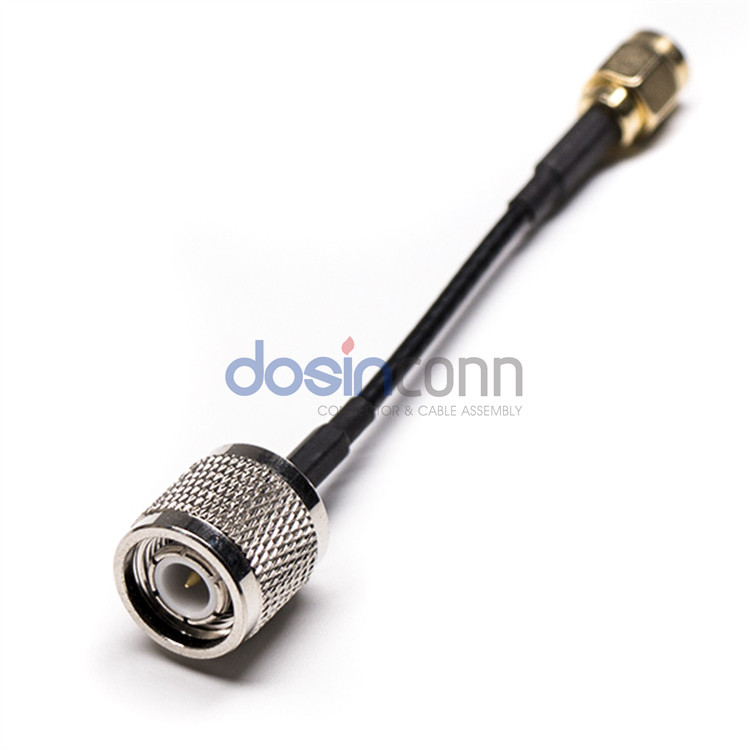

SMA Plug to TNC Plug RF Cable Assemblies 10cm RG174 Cable 50ohm

Part NO.: R02-S01-10019-10 Categories: ,

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Applications

Basic Specifications

Style

SMA to TNC

1st Connector

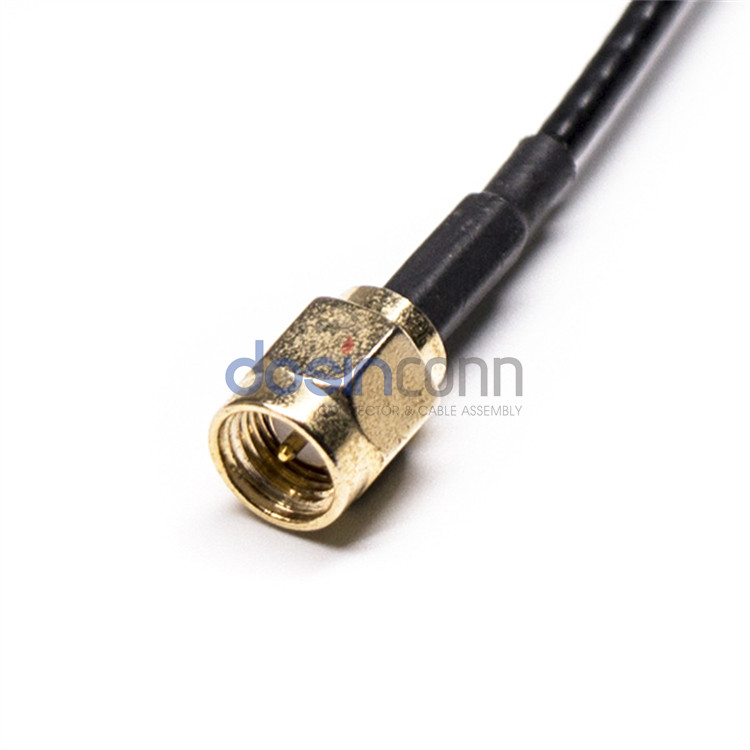

SMA Plug

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

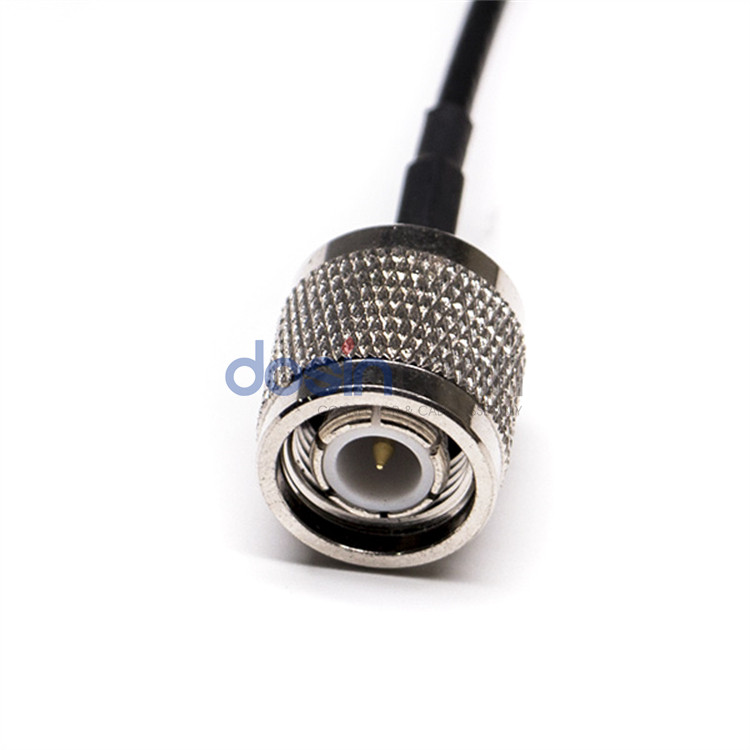

TNC Plug

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Cable Type

Cable Length

10cm

Electrical Specifications

Impedance

50 Ξ©

Frequency Range

0-6GHz

Style

SMA to TNC

1st Connector

SMA Plug

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

TNC Plug

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Impedance

50 Ξ©

Frequency Range

0-6GHz

Cable Type

Cable Length

10cm
