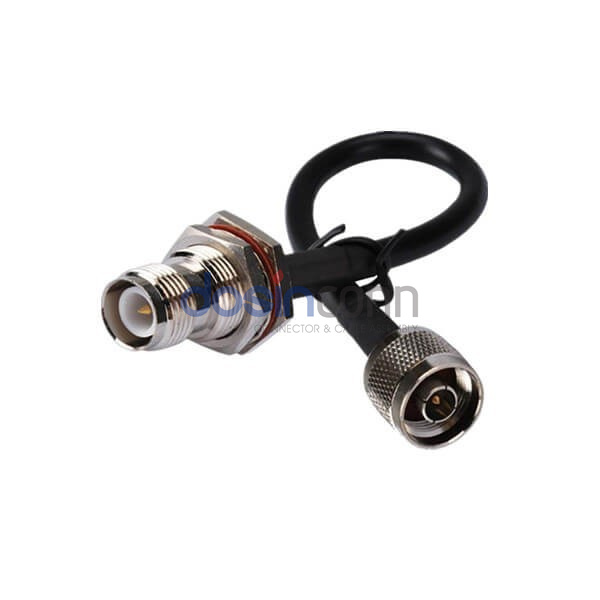

RP TNC Jack to N Plug RF Cable Assemblies 10cm RG58 Cable 50ohm

Part NO.: R02-N01-10003-10 Categories: ,

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Applications

Basic Specifications

Style

TNC to N

1st Connector

RP TNC Jack

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

N Plug

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Cable Type

Cable Length

10cm

Electrical Specifications

Impedance

50 Ξ©

Frequency Range

0-6GHz

Style

TNC to N

1st Connector

RP TNC Jack

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

N Plug

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Impedance

50 Ξ©

Frequency Range

0-6GHz

Cable Type

Cable Length

10cm
