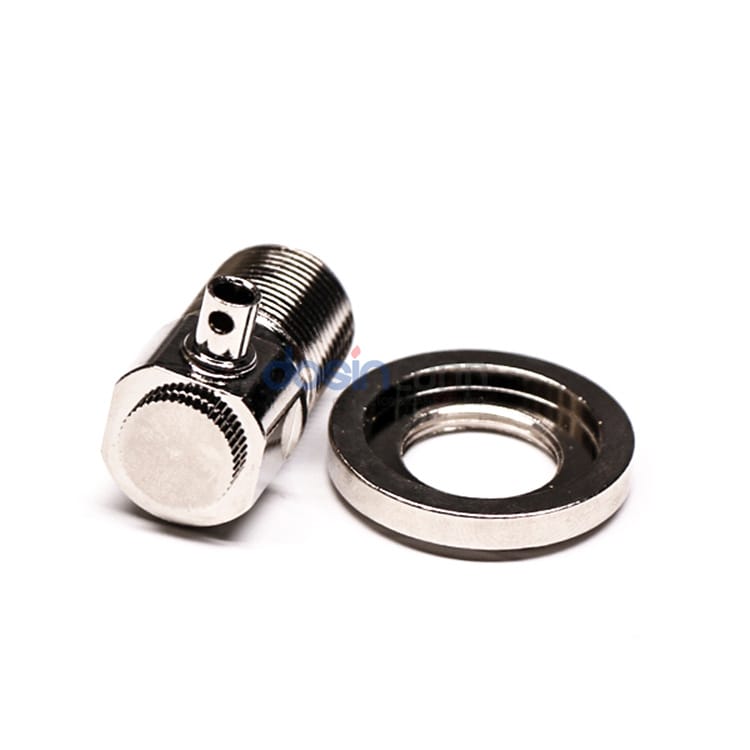

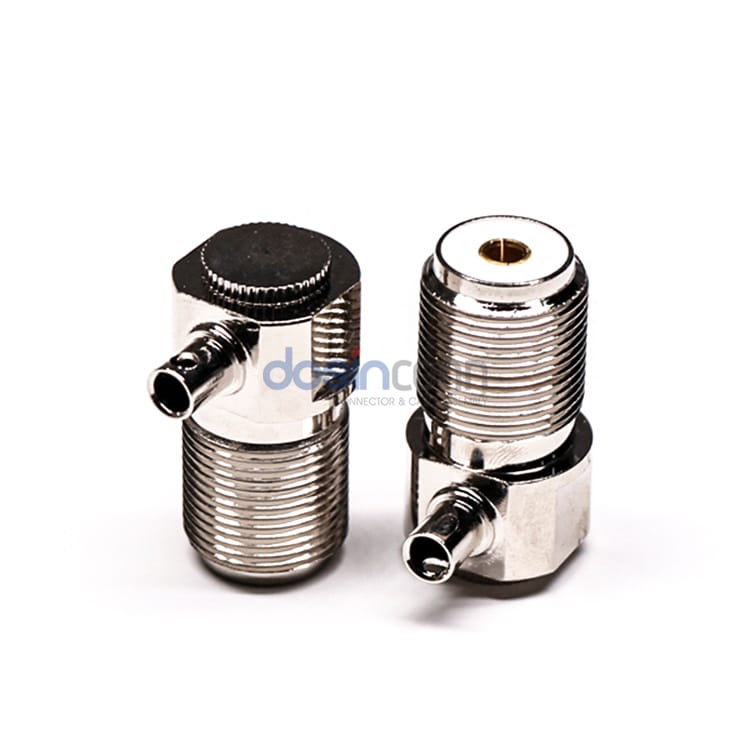

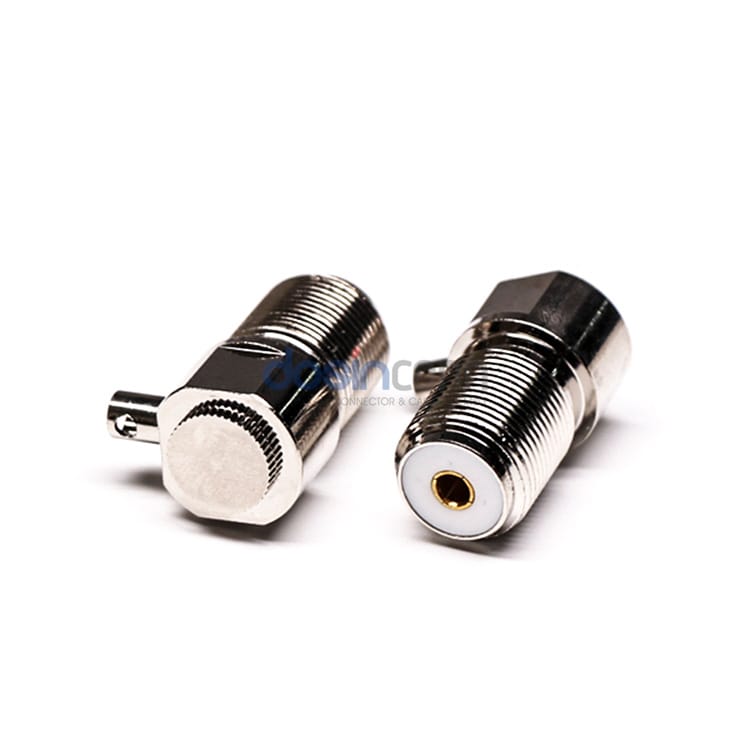

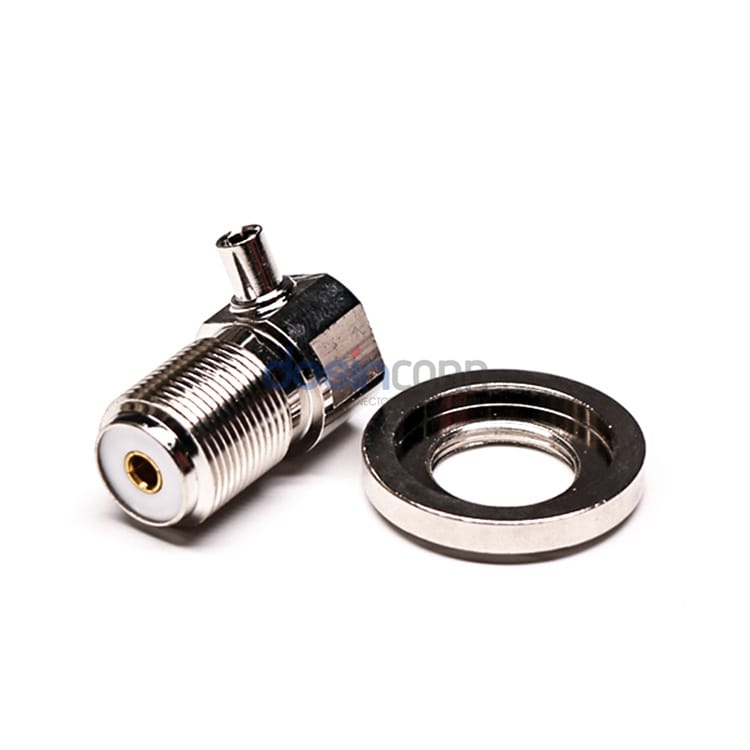

Right SO 239 Angle UHF Jack Crimp Panel Mount Bulkhead

Part NO.: RHT-630-0134 Category:

Authorized Sellers

  • Can be Customized for unique material or performance requirements
  • Designed for low-frequency systems from 0.6-300MHz
  • The threaded coupling mechanism is easy to assembly with high durability
  • Reduce your cost for simple spec demands

UHF connector is designed in World War II or earlier, and invented in the 1930’s by an Amphenol engineer Edward Clarke Quackenbush for use in the radio industry. The most popular cable plug and corresponding chassis-mount socket carry the old Signal Corps nomenclatures PL-259 (plug) and SO-239 (socket).

The UHF connector is a name for a threaded RF connector. UHF coax connectors reliably carry signals at frequencies up to 100 MHz with thread coupling. Widely used for Antennas, Public Address Systems, Low-frequency applications, etc.

UHF

UHF Cable Connector

UHF

UHF PCB/Panel Connector

UHF Connector

UHF Connector Interface

Application



Download Drawing
