TS-9 (or TS9) is an uncommon RF coaxial connector found in cellular devices such as 3G and 4G mobile broadband modems to support the connection of an external antenna. The design and production of the TS-9 connector do not follow any defined international standard, nor does the design follow a proprietary specification.
The TS-9 Female connector comprises a very simple circular brass housing with an outer diameter of 3.5 mm. The connector is typically attached to the PCB by a Surface Mount or End-Launch mounting. The connector is most popularly found on wireless broadband devices manufactured by Netgear and Sierra Wireless.

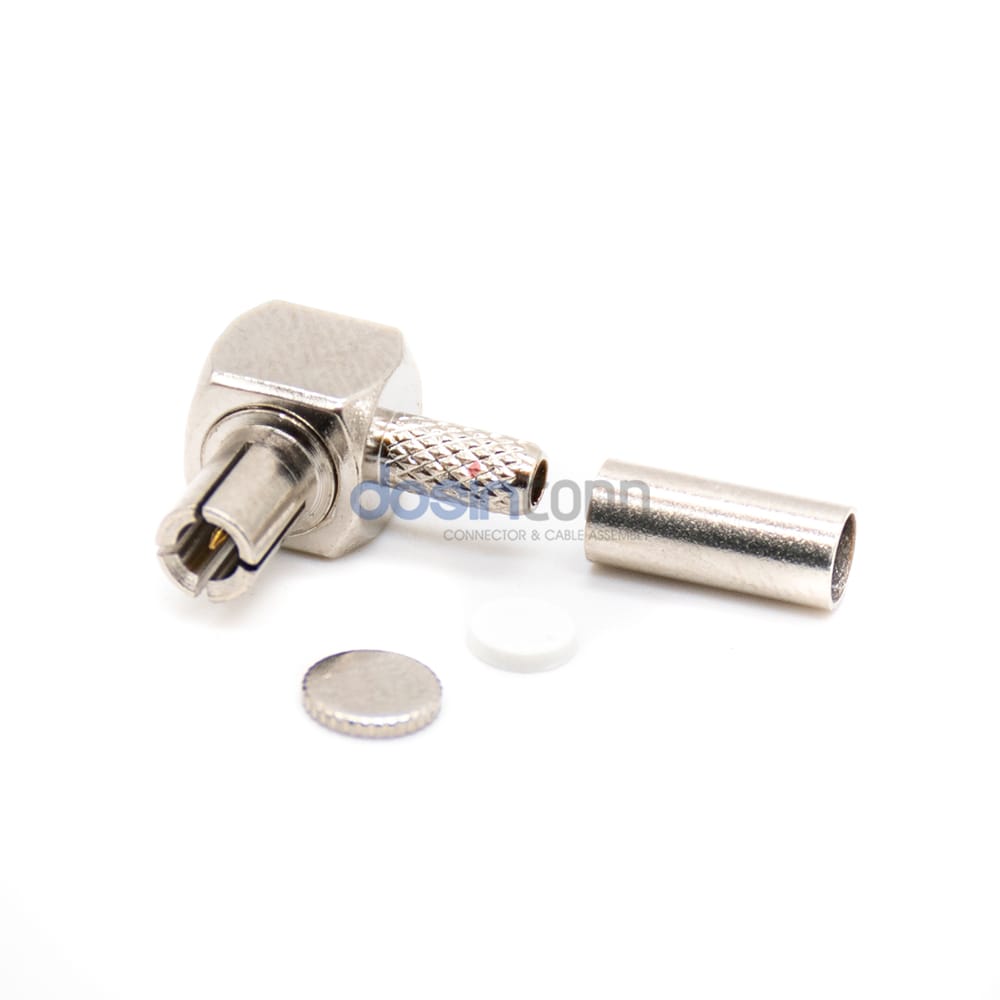

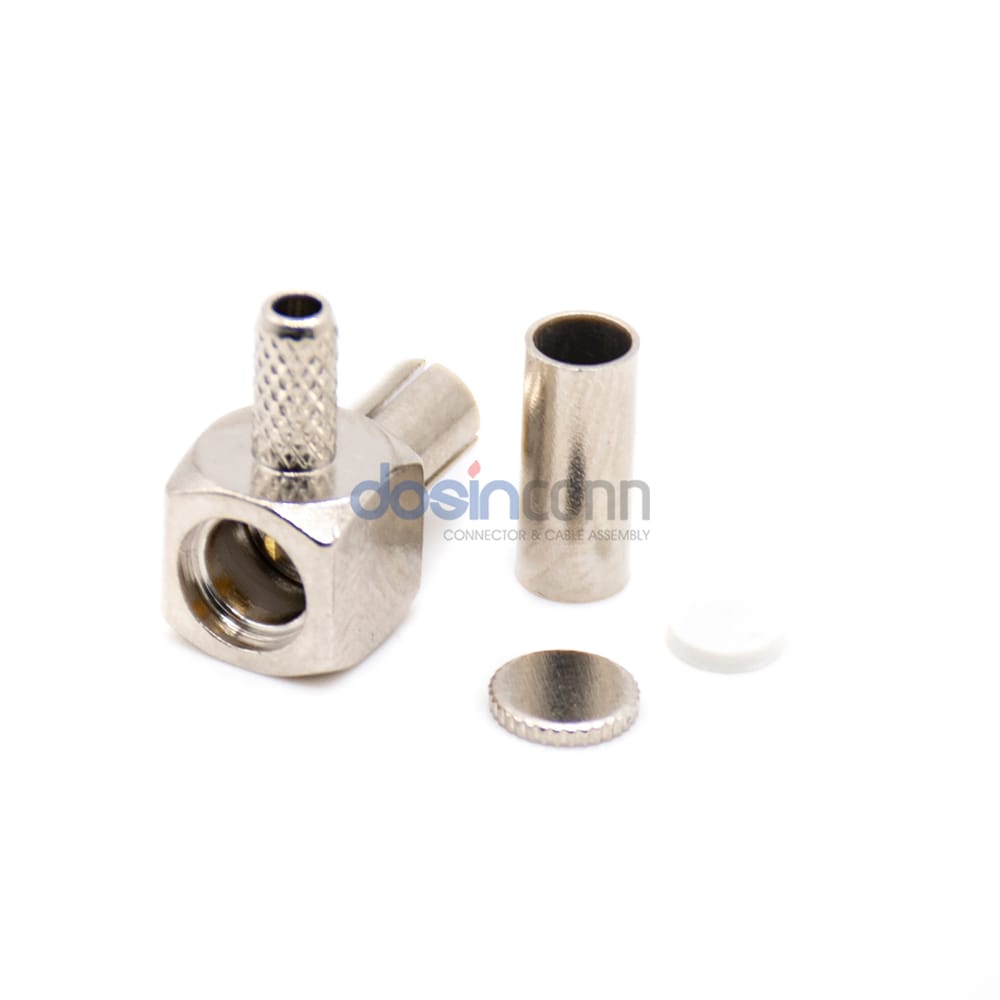

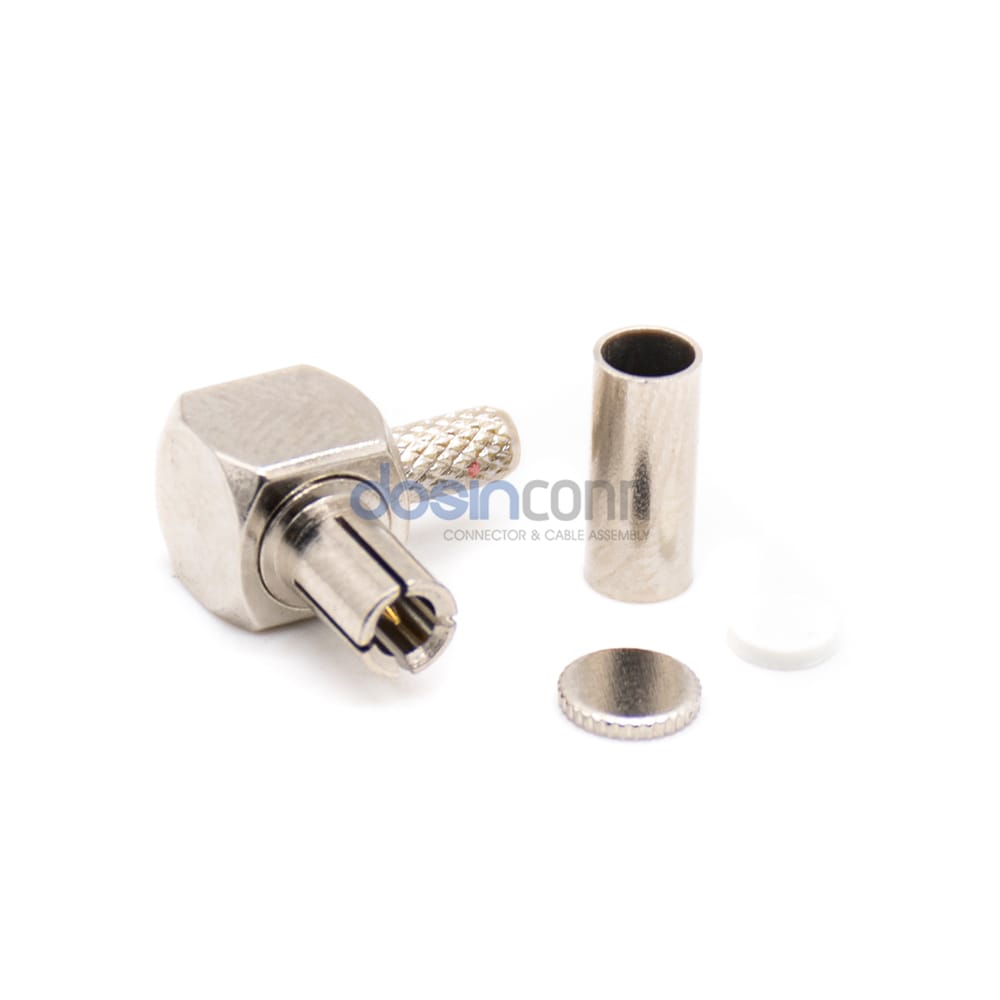

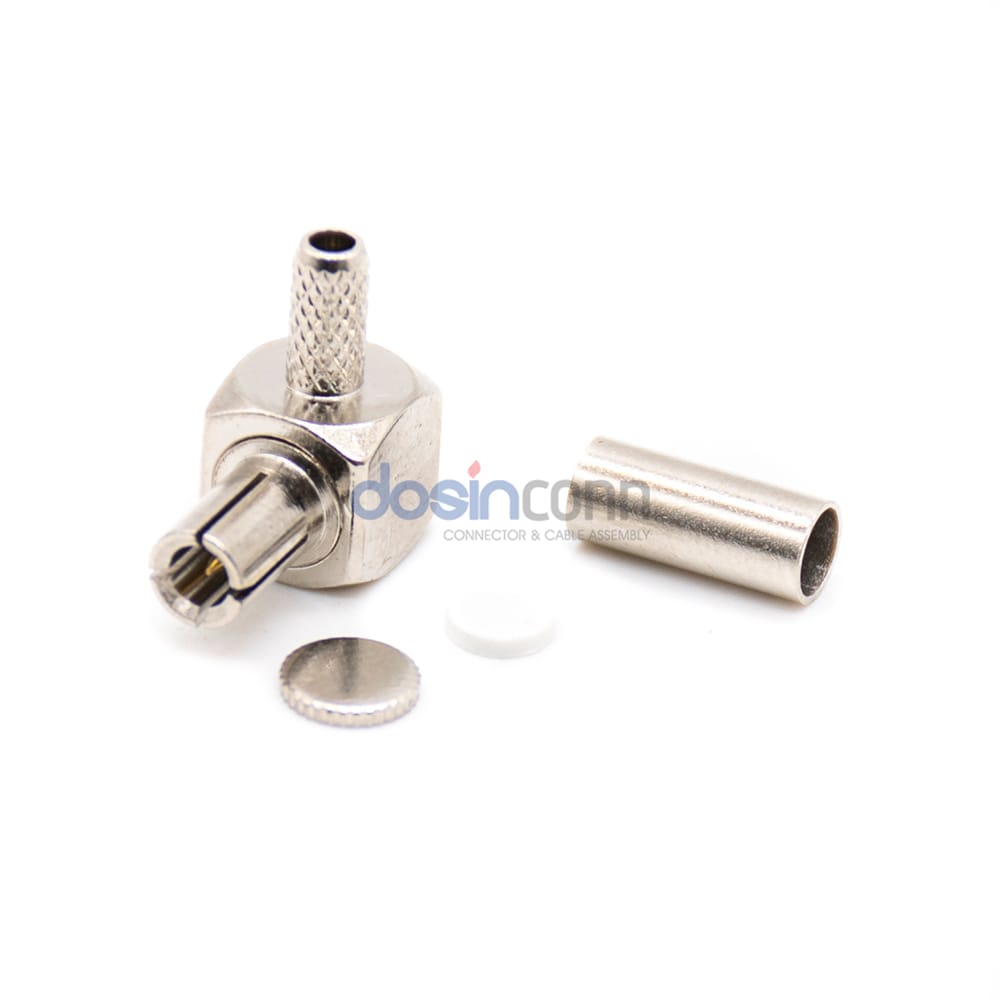

TS-9 Male connectors have no controlled manufacture. However, they are identified by a 3.5 mm inner diameter and 3.8 mm outer diameter. The male connector is mostly found on interconnecting coaxial cables, although occasionally on small direct connecting external antennas.
Application
External Antennas for Cellular data applications: Internet access via cellular devices
Terminate the end of the TS9 antenna cable to facilitate connections to an antenna or an RF device
Mobile telephone and hand-held radio antennas
USB wireless dongles (software-defined) and WiFi antenna systems
Cellular Wireless Infrastructure
