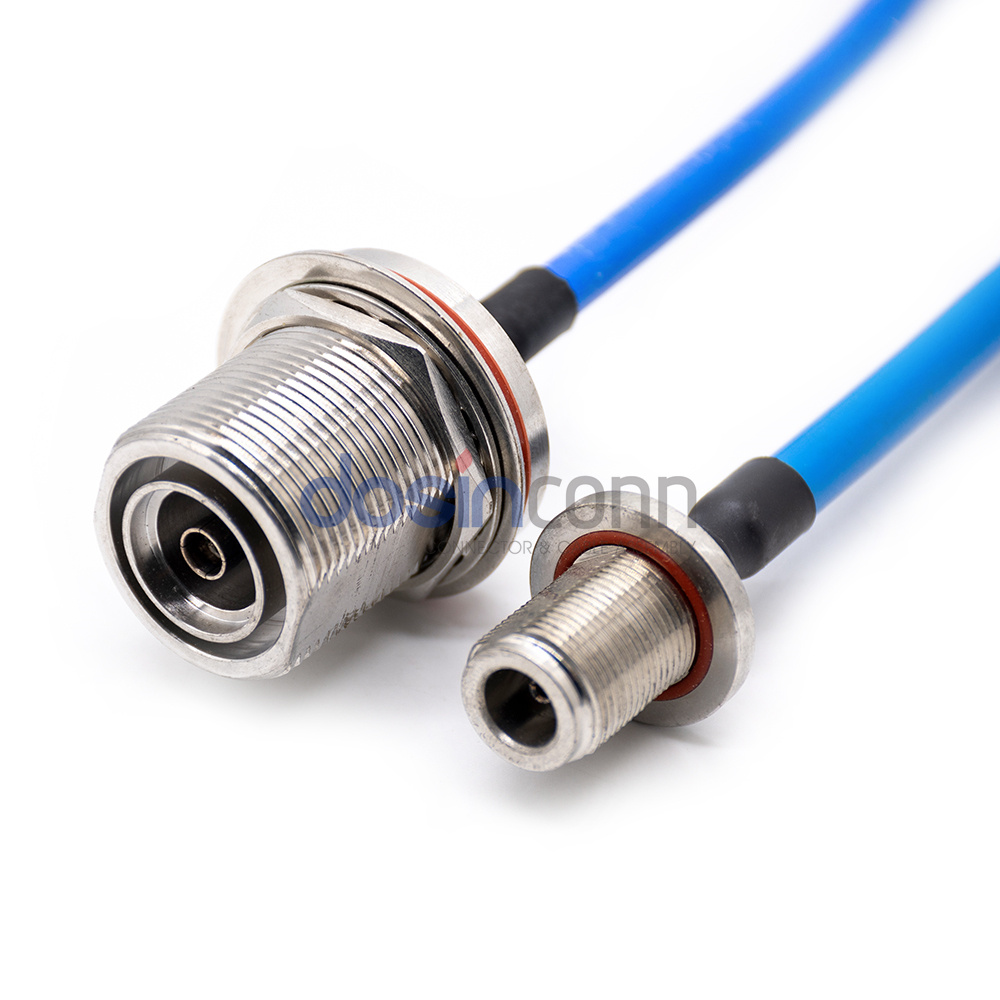

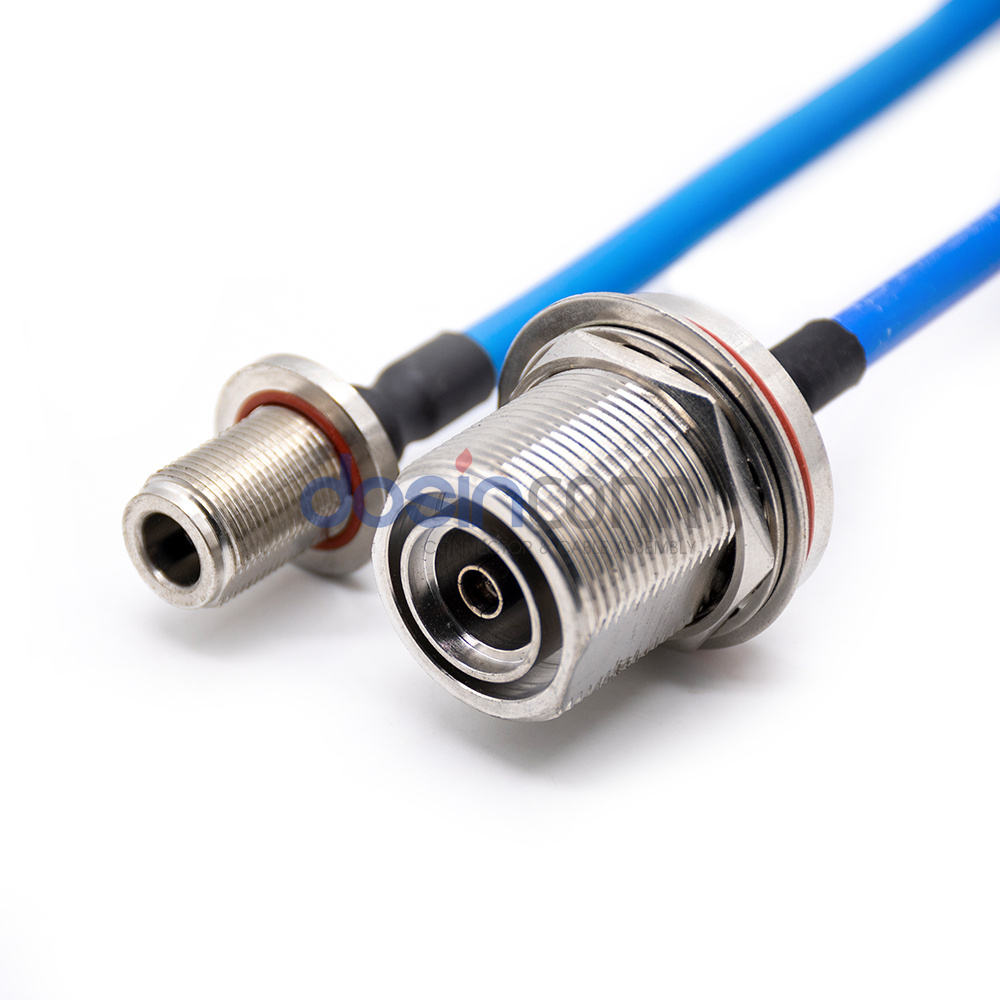

N Jack to 7/16 Jack RF Cable Assemblies 20cm RG405 Cable 50ohm

Part NO.: R02-N01-10037-20 Categories: ,

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Applications

Basic Specifications

Style

N to 7/16
1st Connector

N Jack
1st Contact Gender

Female
1st Connector Orientation

Straight
2nd Connector

7/16 Jack
2nd Contact Gender

Female
2nd Connector Orientation

Straight
Cable Type

Cable Length

20cm

Electrical Specifications

Impedance

50 Ξ©
Frequency Range

0-6GHz
Style

N to 7/16
1st Connector

N Jack
1st Contact Gender

Female
1st Connector Orientation

Straight
2nd Connector

7/16 Jack
2nd Contact Gender

Female
2nd Connector Orientation

Straight
Impedance

50 Ξ©
Frequency Range

0-6GHz
Cable Type

Cable Length

20cm
