RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

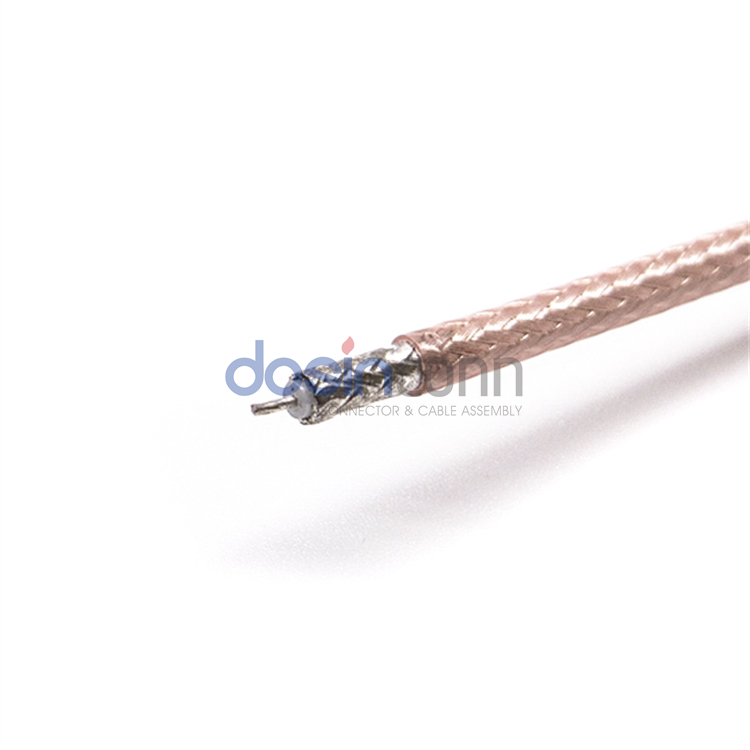

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

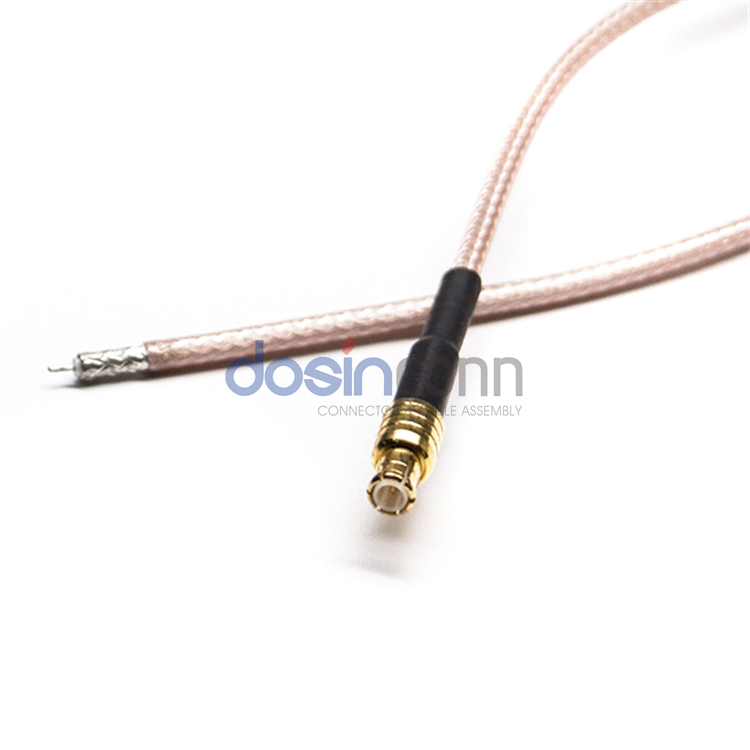

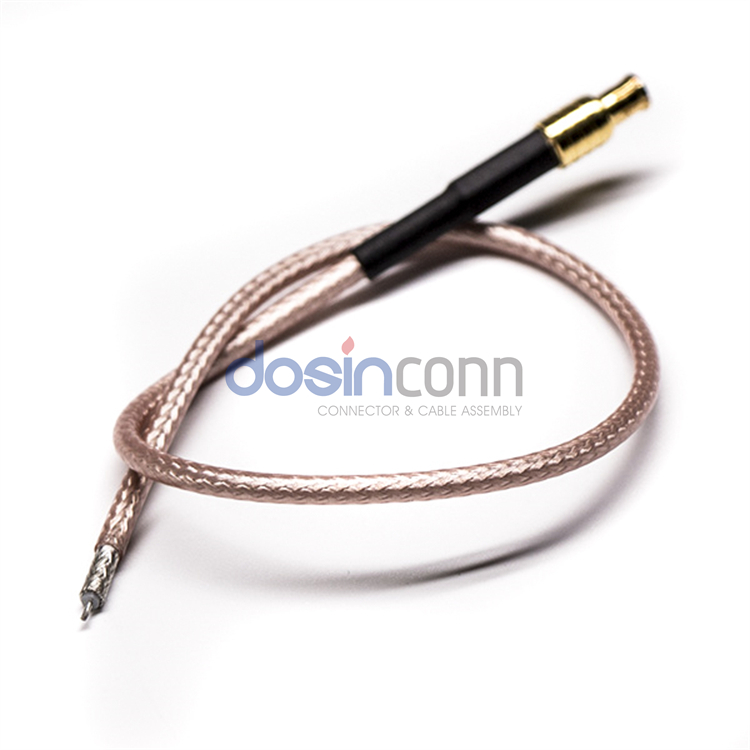

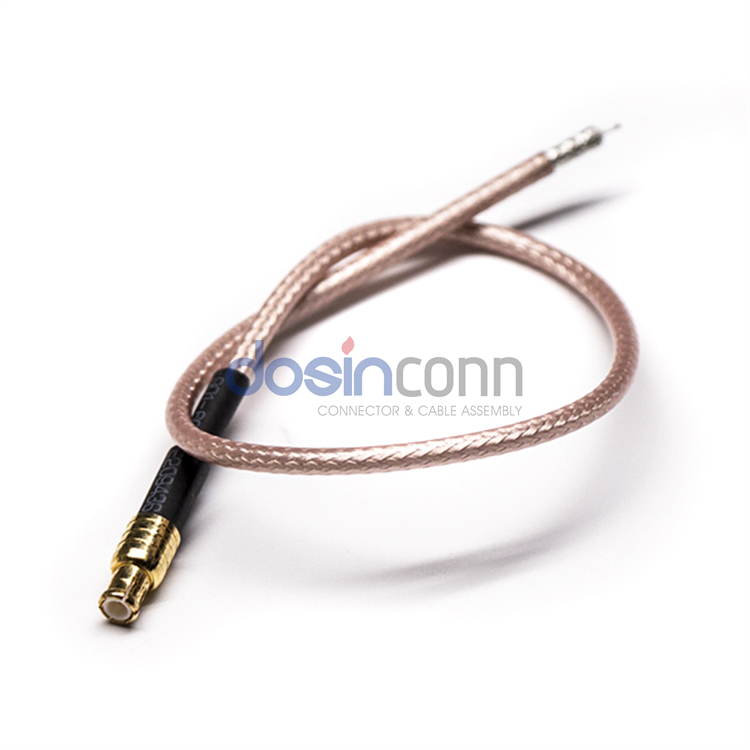

| RF Cable Style | MCX to TD |
|---|---|

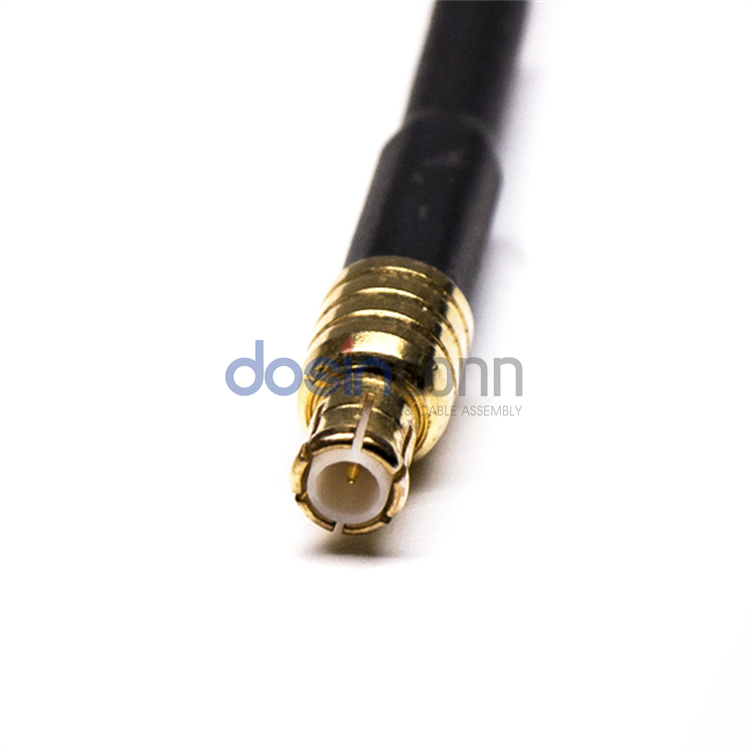

| RF Cable 1st Connector | MCX Plug |
| 1st Contact Gender | Male |
| 1st Connector Orientation | Straight |
| RF Cable 2nd Connector | TD |
| Cable Type | |
| Cable Length | 30cm |
| Cable Color | Brown |
| Impedance | 50 Ξ© |
|---|---|
| Frequency Range | 0-6GHz |
| Temperature Range | β40Β°C to +85Β°C |
|---|
| RF Cable Style | MCX to TD |
|---|---|
| RF Cable 1st Connector | MCX Plug |
| 1st Contact Gender | Male |
| 1st Connector Orientation | Straight |
| RF Cable 2nd Connector | TD |
| Impedance | 50 Ξ© |
| Frequency Range | 0-6GHz |
| Cable Type | |
| Cable Length | 30cm |
| Cable Color | Brown |
| Temperature Range | β40Β°C to +85Β°C |
