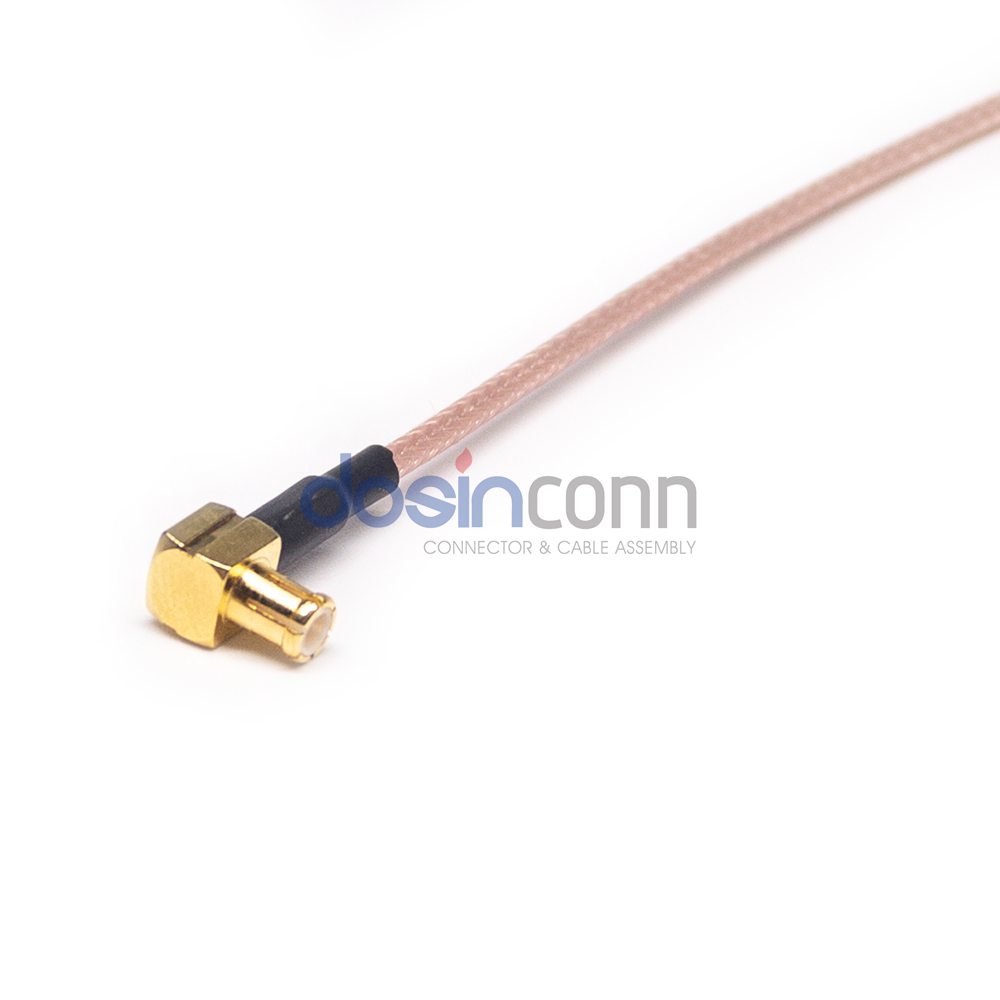

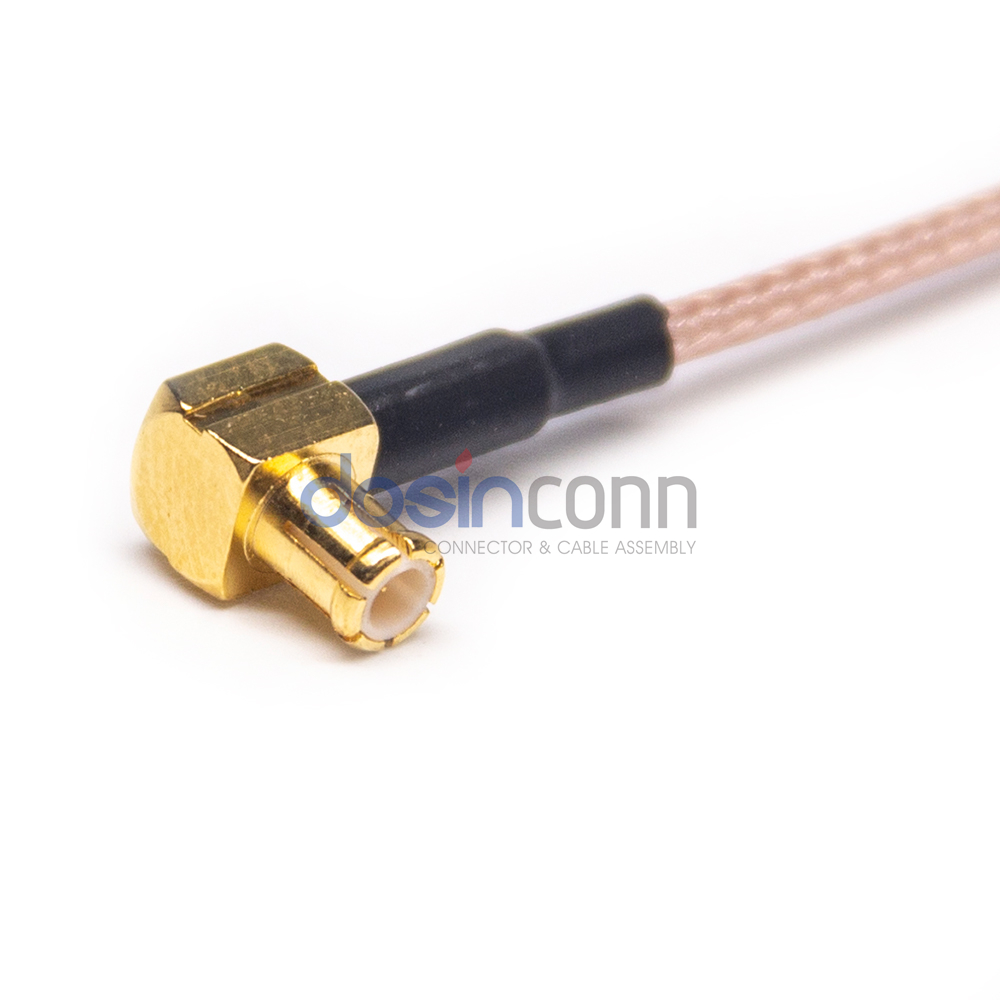

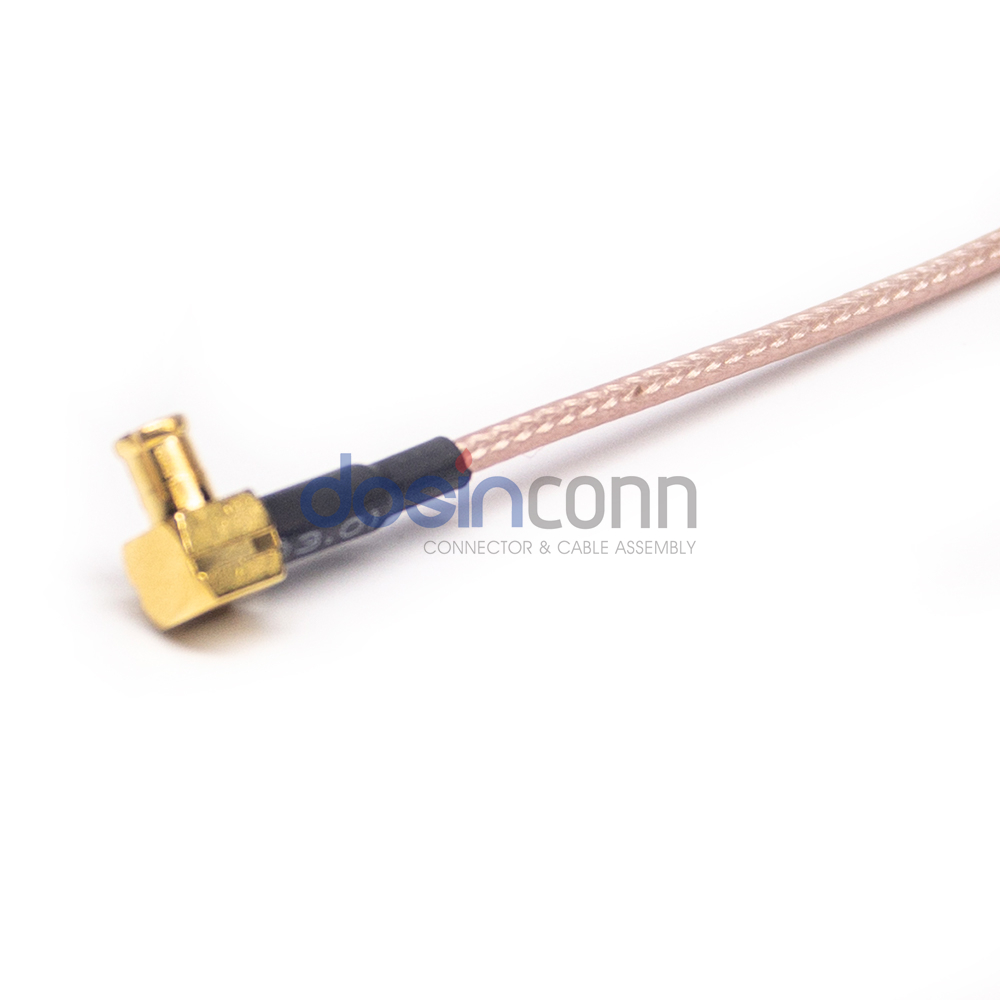

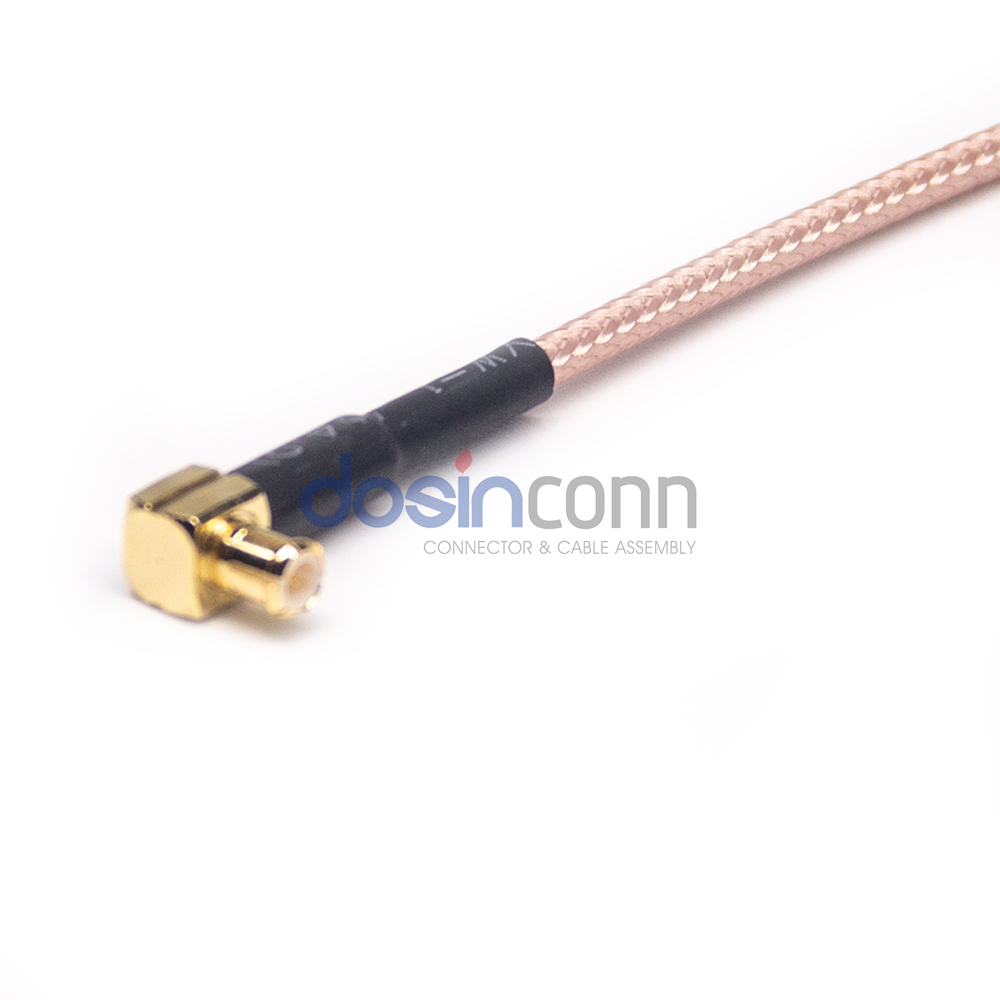

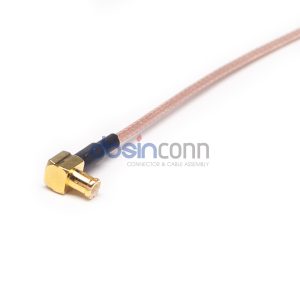

MCX Plug to TD RF Cable Assemblies 15cm RG178 Cable 50ohm

Part NO.: R01-M02-10003-15 Category:

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Applications

Basic Specifications

Style

MCX Single Ended

1st Connector

MCX Plug

1st Contact Gender

Male

1st Connector Orientation

Right Angle

Cable Type

Cable Length

15cm

Electrical Specifications

Impedance

50 Ξ©

Frequency Range

0-14GHz

Style

MCX Single Ended

1st Connector

MCX Plug

1st Contact Gender

Male

1st Connector Orientation

Right Angle

Impedance

50 Ξ©

Frequency Range

0-14GHz

Cable Type

Cable Length

15cm
