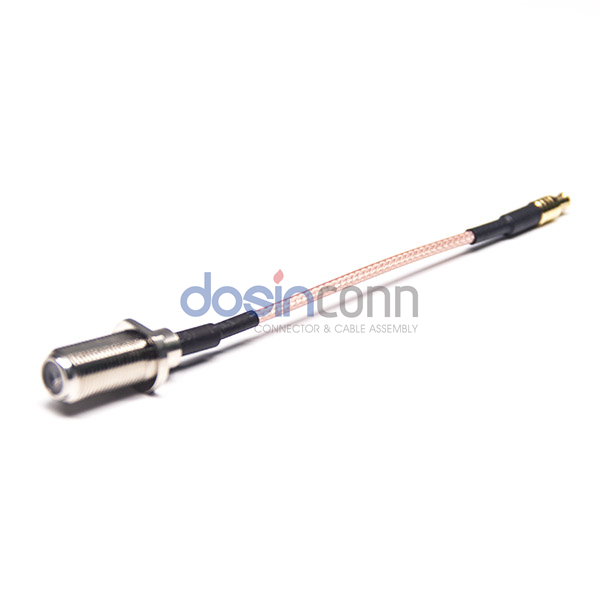

MCX Plug to F Jack RF Cable Assemblies 10cm RG316 Cable 50ohm

Part NO.: R02-M02-10016-10 Categories: ,

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Applications

Basic Specifications

Style

MCX to F

1st Contact Gender

Male

1st Connector

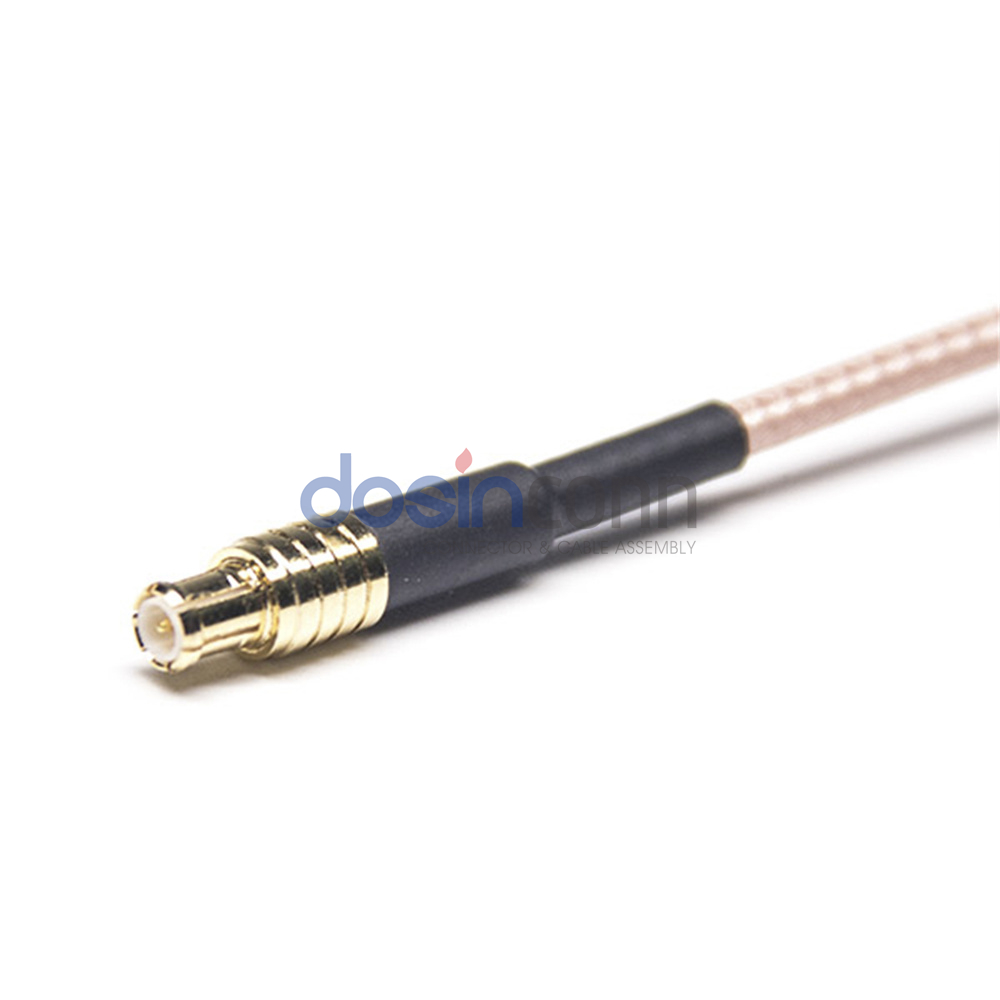

MCX Plug

1st Connector Orientation

Straight

2nd Connector

F Jack

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Cable Type

Cable Length

10cm

Electrical Specifications

Impedance

50 Ξ©

Frequency Range

0-14GHz

Style

MCX to F

1st Contact Gender

Male

1st Connector

MCX Plug

1st Connector Orientation

Straight

2nd Connector

F Jack

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Impedance

50 Ξ©

Frequency Range

0-14GHz

Cable Type

Cable Length

10cm
