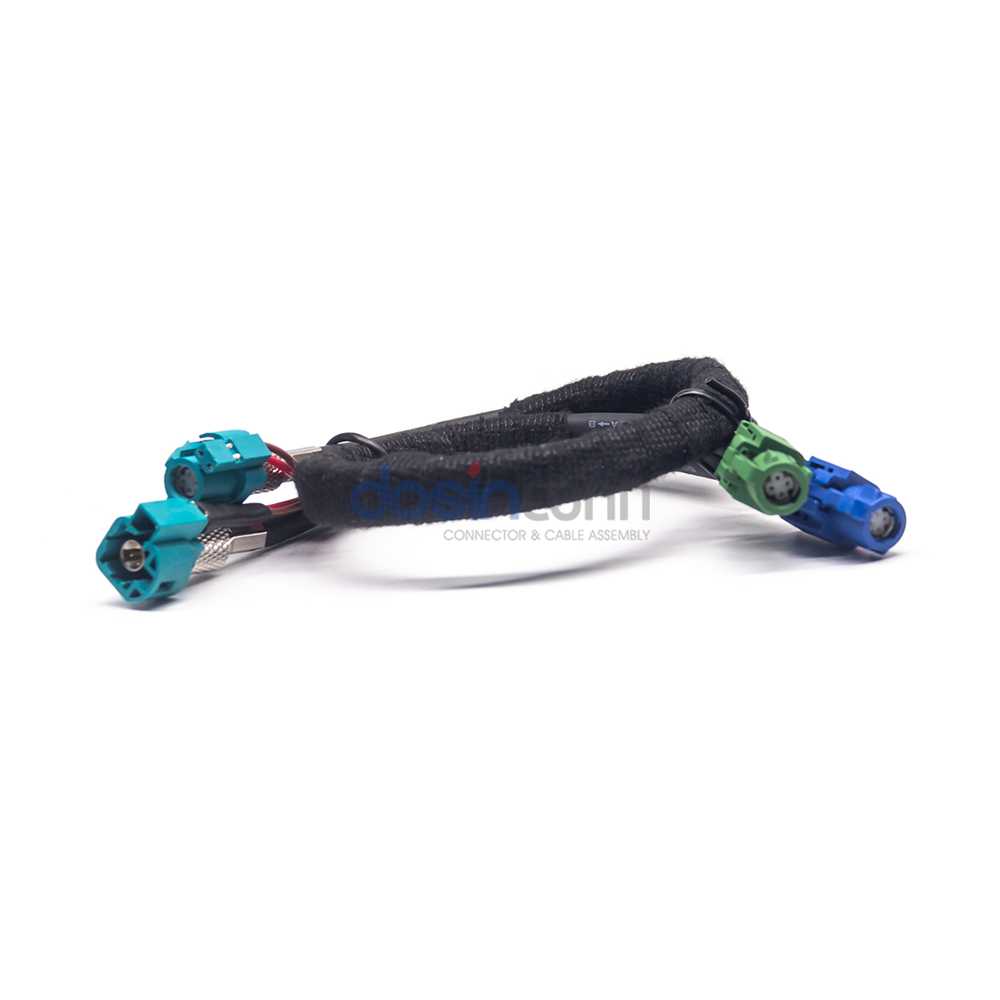

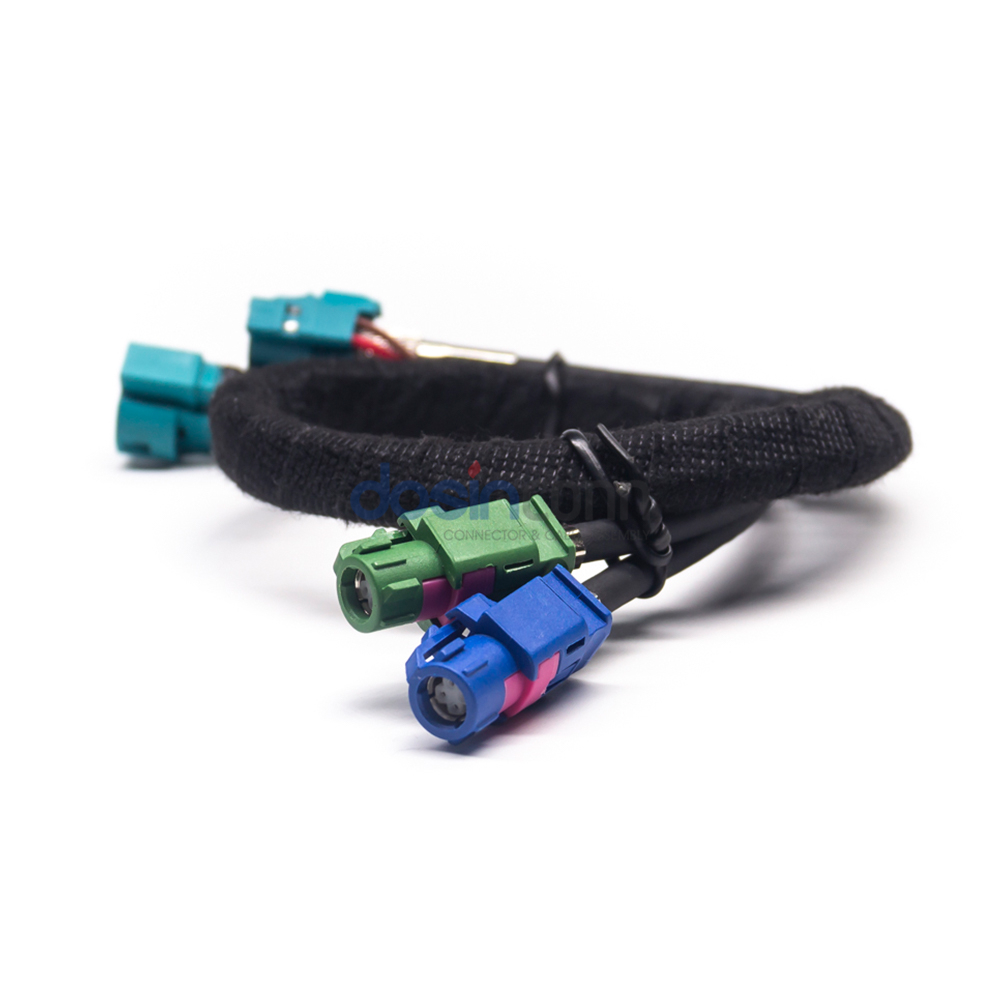

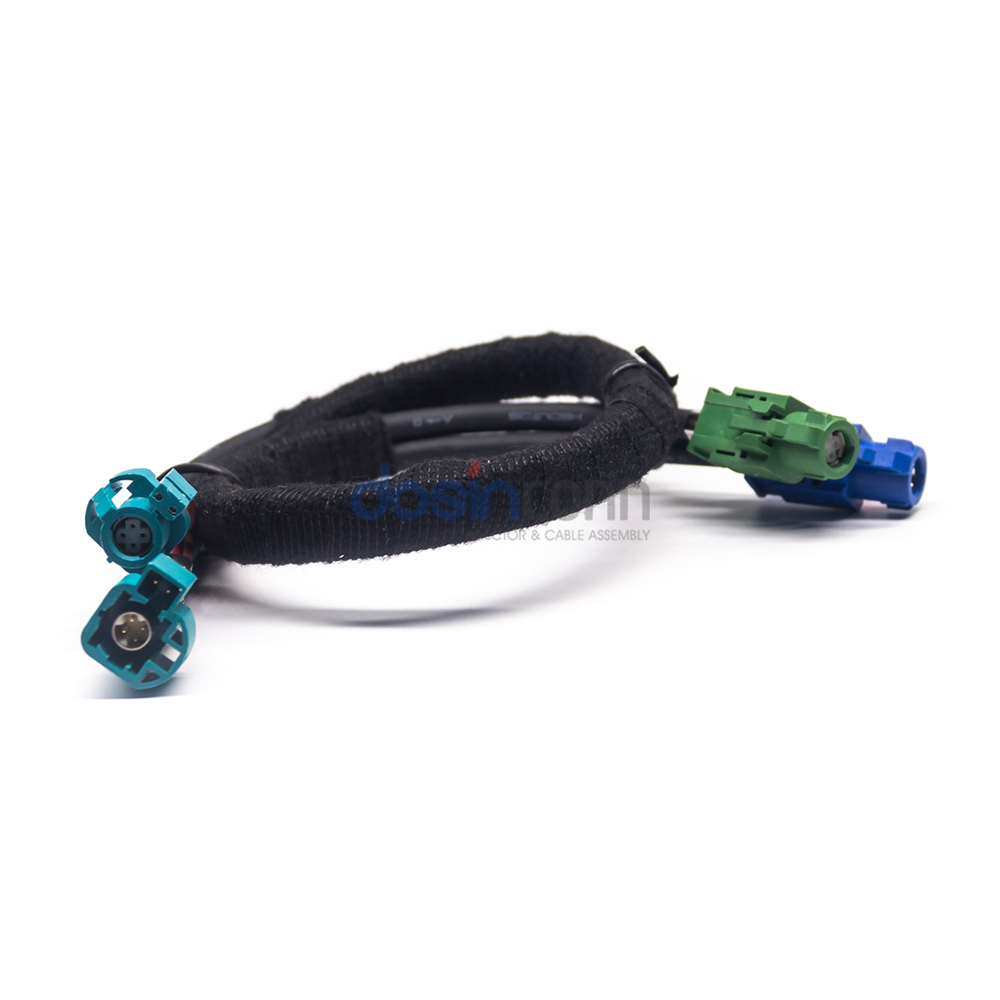

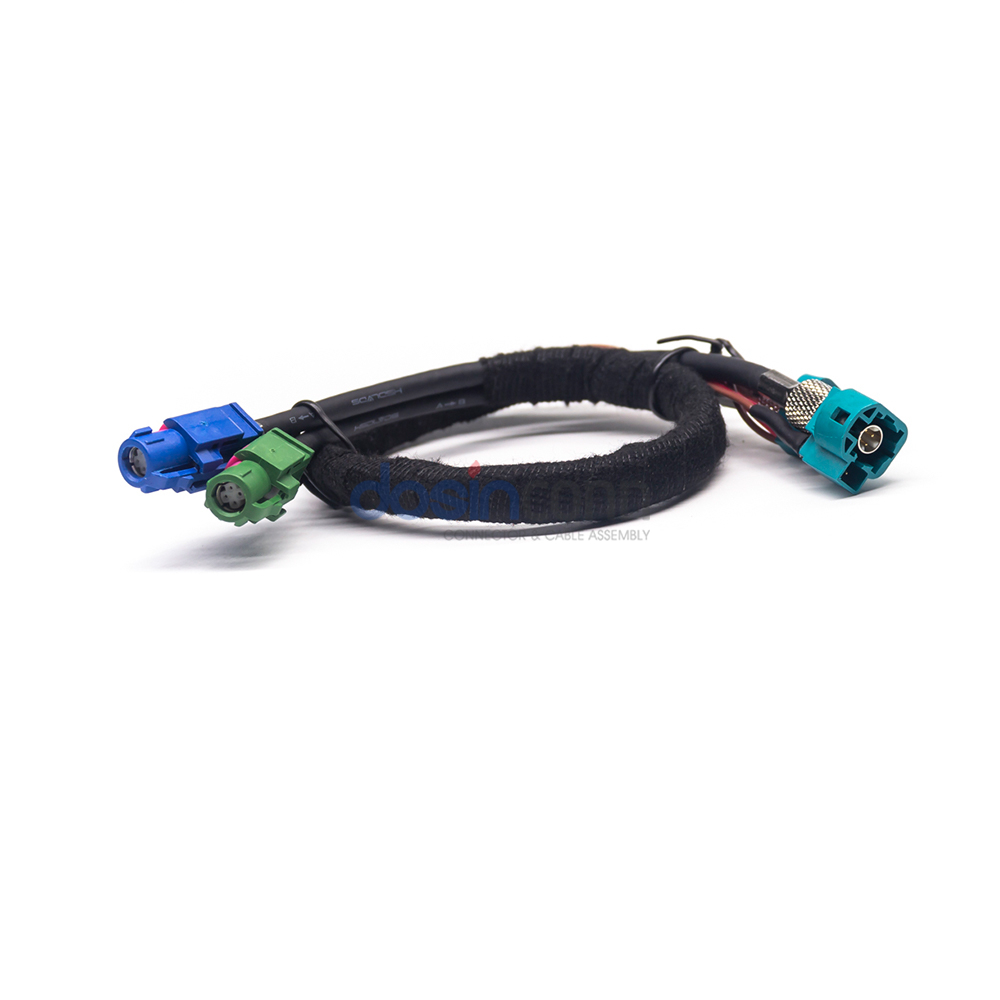

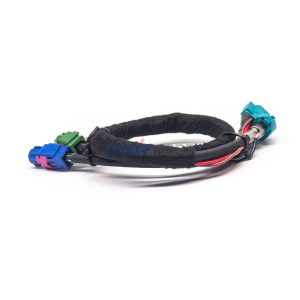

HSD to HSD, HSD 4+2Pin Z Code Male&Female to HSD 4Pin E&C Code Female Extension Cable

Part NO.: 102-12-10002 Category: Tag:

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5
  • LV214

What is HSD (High Speed Data) Connector?

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These HSD connectors can serve for hermetic applications.

HSD & FAKRA Electrotechnical Elements

HSD Interface Dimensions

HSD Pinning

HSD Coding

Basic Specifications

Style

HSD to HSD

1st Connector

HSD 4+2P, Z Code

1st Contact Gender

Female, Male

1st Connector Orientation

Straight

2nd Connector

HSD 4P , E&C Code

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Electrical Specifications

Impedance

100 Ξ©

Frequency - Max

6GHz

Insultation Resistance

β‰₯ 1000 MΞ©

Operating Voltage

100V rms

Withstand Voltage

250 V rms

Core Connection Resistance

≀ 10 MΞ©

Mechanical Specifications

Mating Durability

≧ 25 Cycles

Latch Holding Force

β‰₯110N

Style

HSD to HSD

1st Connector

HSD 4+2P, Z Code

1st Contact Gender

Female, Male

1st Connector Orientation

Straight

2nd Connector

HSD 4P , E&C Code

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Impedance

100 Ξ©

Frequency - Max

6GHz

Insultation Resistance

β‰₯ 1000 MΞ©

Operating Voltage

100V rms

Withstand Voltage

250 V rms

Core Connection Resistance

≀ 10 MΞ©

Mating Durability

≧ 25 Cycles

Latch Holding Force

β‰₯110N
