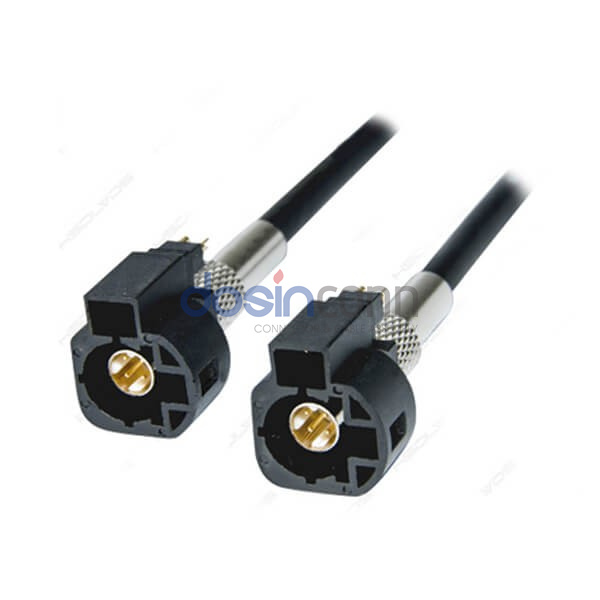

HSD 6P Plug A Code to HSD 6P Plug A Code HSD Cable Assemblies 1m LVDS cable 50ohm

Part NO.: 102-12-10062 Category: Tag:

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5
  • LV214

What is HSD (High Speed Data) Connector?

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB), and designated shield connection systems. These HSD connectors can serve for hermetic applications.

HSD & FAKRA Electrotechnical Elements

HSD Interface Dimensions

HSD Pinning

HSD Coding

Basic Specifications

Style

HSD to HSD

1st Connector

HSD 6P Plug, A Code

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

HSD 6P Plug, A Code

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Cable Type

Cable Color

Black

Electrical Specifications

Impedance

50 Ξ©

Frequency - Max

6GHz

Insultation Resistance

≧5000MΞ©

Style

HSD to HSD

1st Connector

HSD 6P Plug, A Code

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

HSD 6P Plug, A Code

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Cable Type

Cable Color

Black

Impedance

50 Ξ©

Frequency - Max

6GHz

Insultation Resistance

≧5000MΞ©
