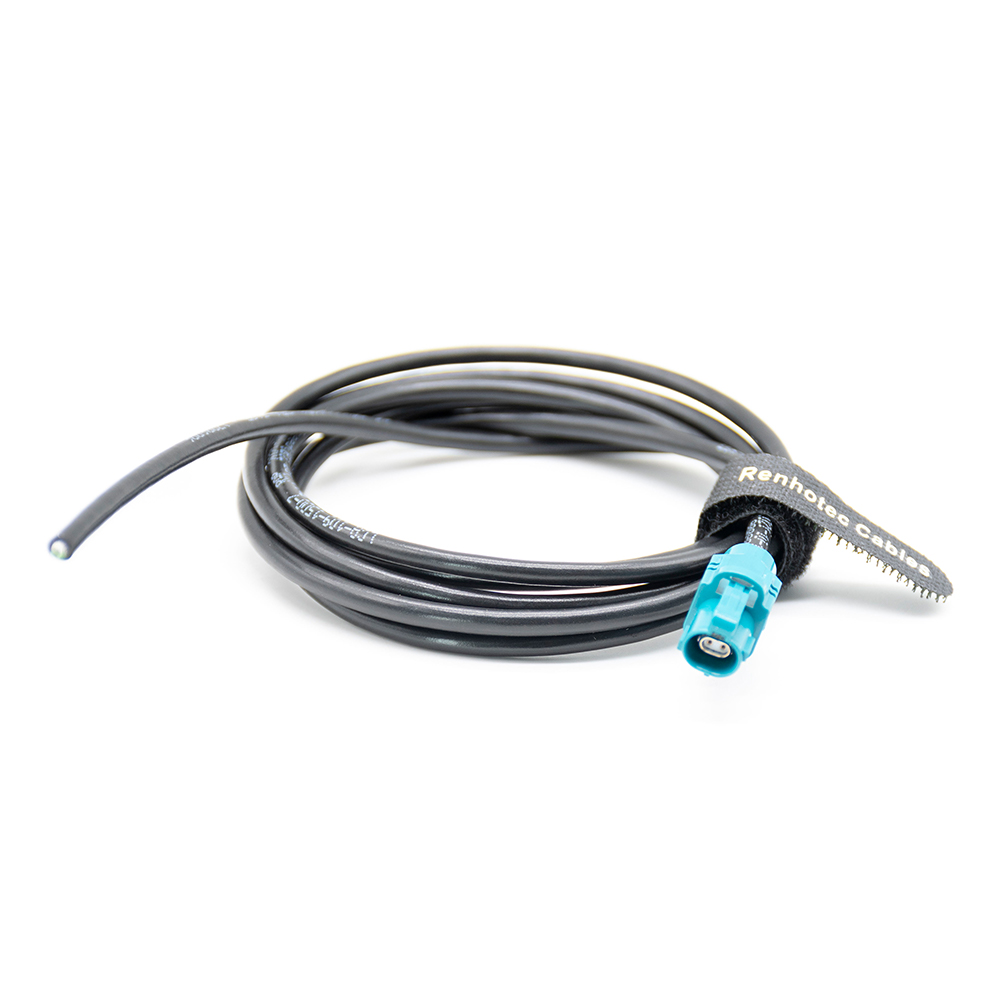

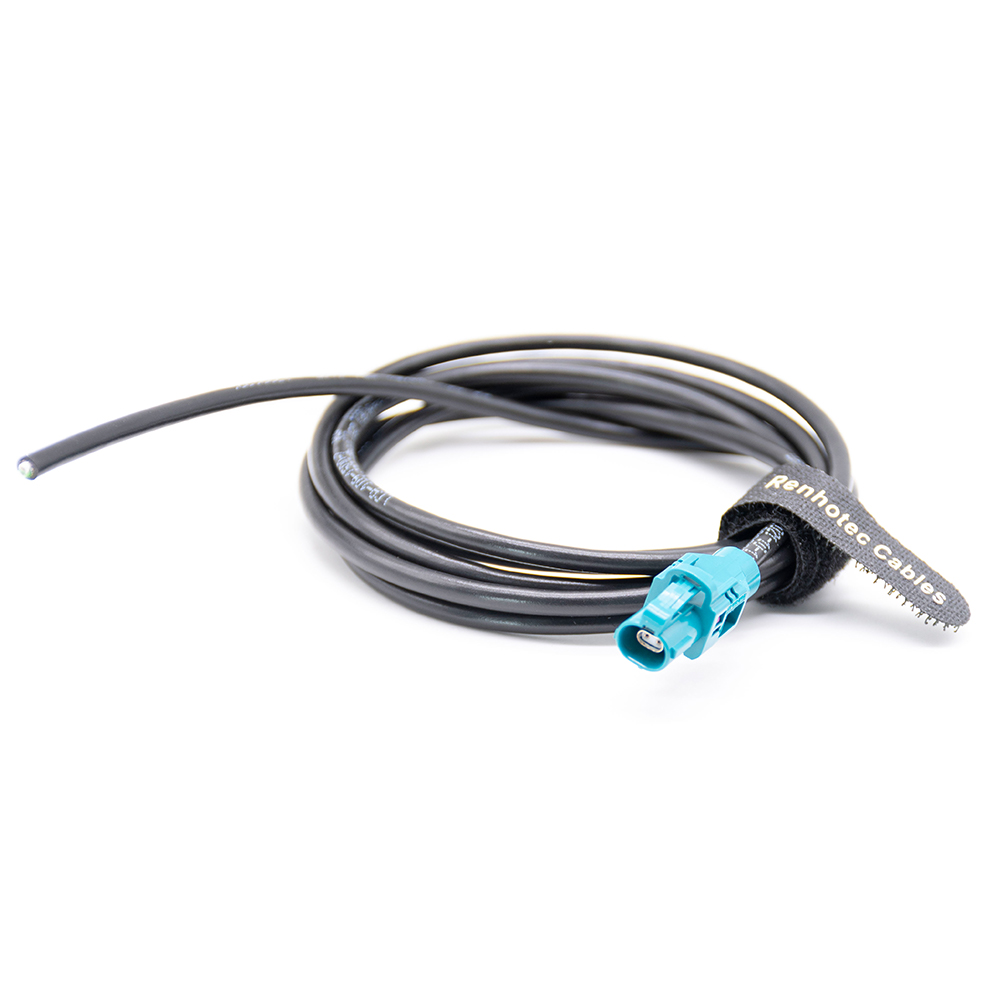

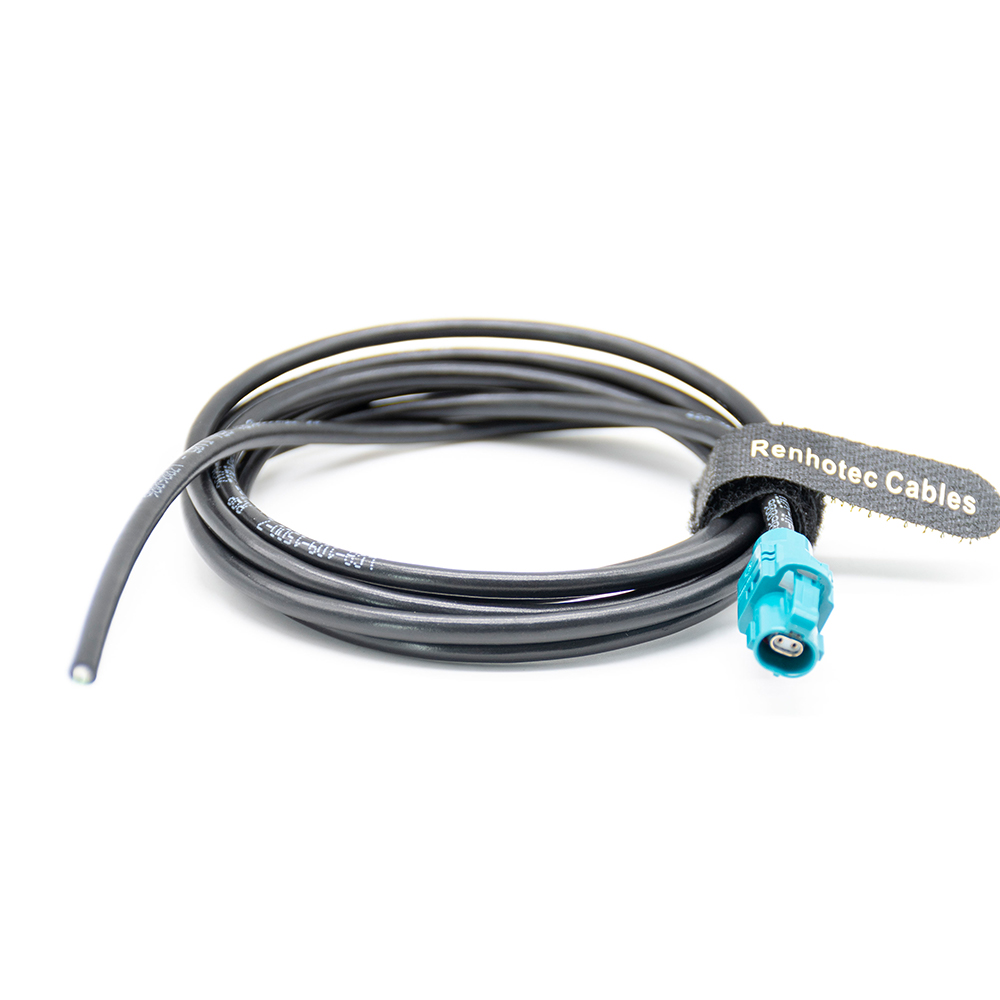

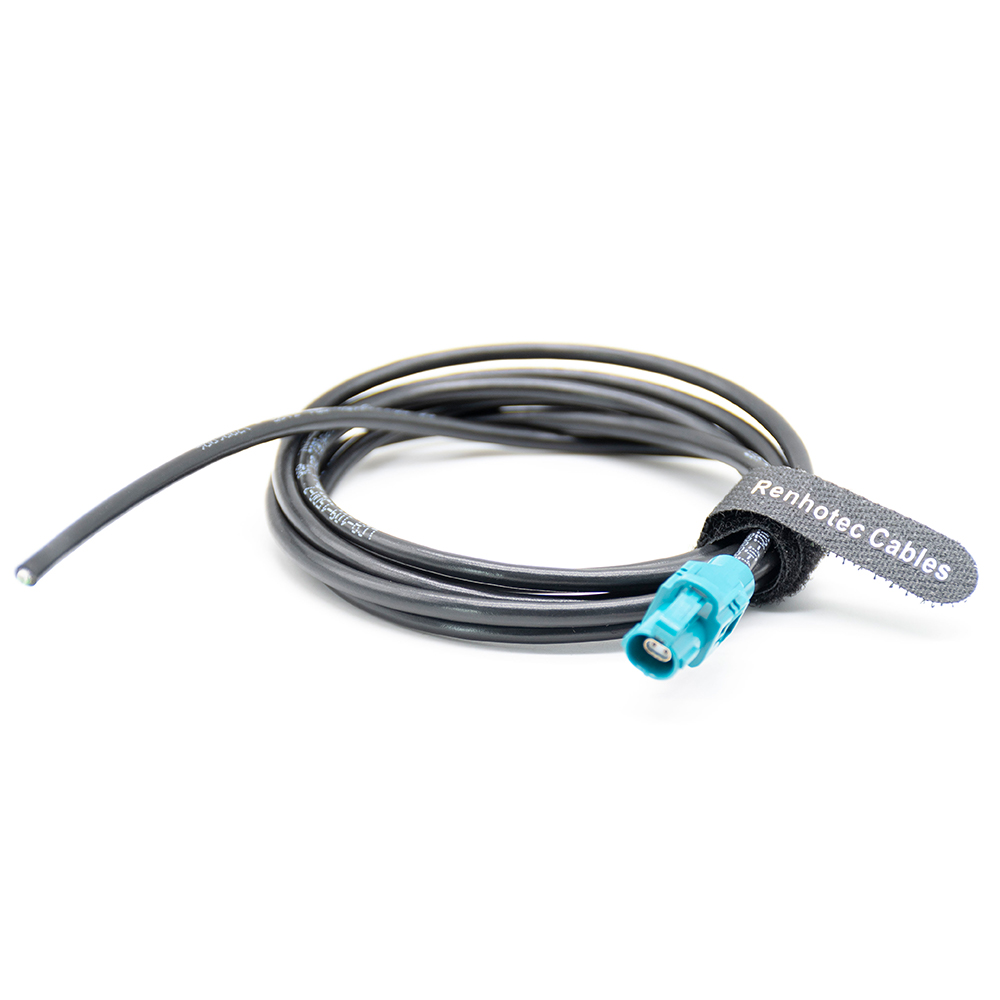

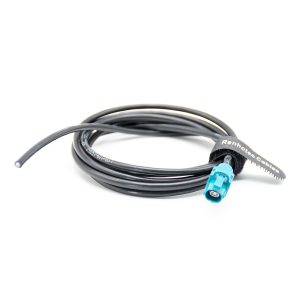

H-MTD E6K14A-1CAZ5 Automotive Ethernet Cable Assemblies, Single Ended Z Code Female Cable

Part NO.: 104-12-10003 Category: Tag:

  • Primary and secondary lock
  • High cable retention force
  • High coding efficiency (different codings on plastichousings to avoid misconnections)
  • No contact pin damage possible
  • Optional Connector Position Assurance (CPA)

H-MTD Automotive Ethernet Connectors

H-MTD is a differential connector system for high-speed data transmission of up to 20 GHz or 56 Gbps, contained in a compact yet robust automotive grade housing.

Apart from ensuring high-bitrate data transmission and savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols.

The application field of the H-MTD is countless as it can be used with a variety of different cables including Shielded Twisted Pair, Unshielded Twisted Pair and new High-Performance cables. With H-MTD the customer can count on an interface that accommodates future vehicle networks, applications and protocols.

Application

H-MTD Pinnings

H-MTD Codings

Basic Specifications

1st Connector

E6K14A-1CAZ5-A

1st Contact Gender

Female

1st Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Electrical Specifications

Impedance

100 Ξ©

1st Connector

E6K14A-1CAZ5-A

1st Contact Gender

Female

1st Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Impedance

100 Ξ©
