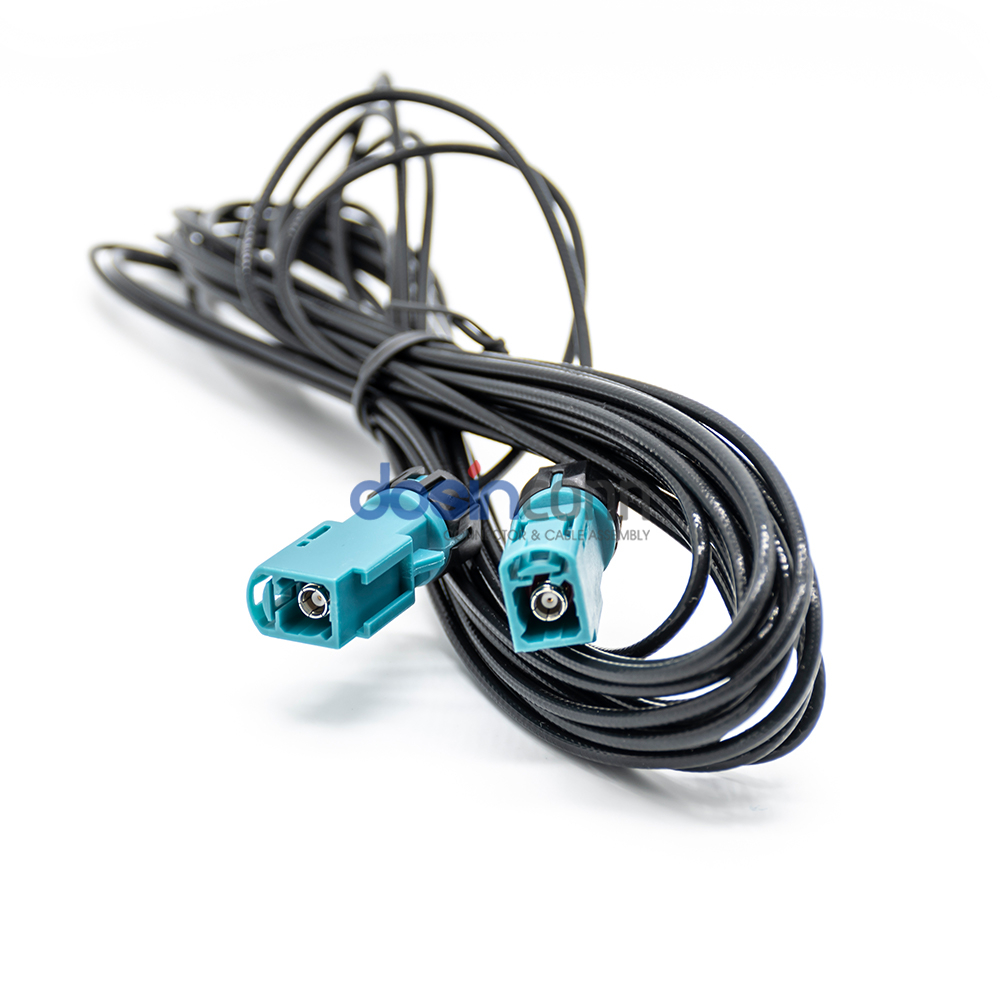

Fakra Z Code Waterblue Jack to Fakra Jack RG174 Cable Waterproof

Part NO.: 101-12-10032 Category:

  • 14 different mechanical and color codes
  • Plastic housing with locking feature
  • Frequency range of DC – 6GHz

Fakra connectors are specifically designed for automotive applications. They are based on the SMB connector interface Fakra (Automated Expert Group) to establish a unified connector system and standards that everyone will follow. Due to its special standard locking system, Fakra connectors meet the high performance and safety requirements of today’s automotive industry.

Fakra Electrotechnical Elements

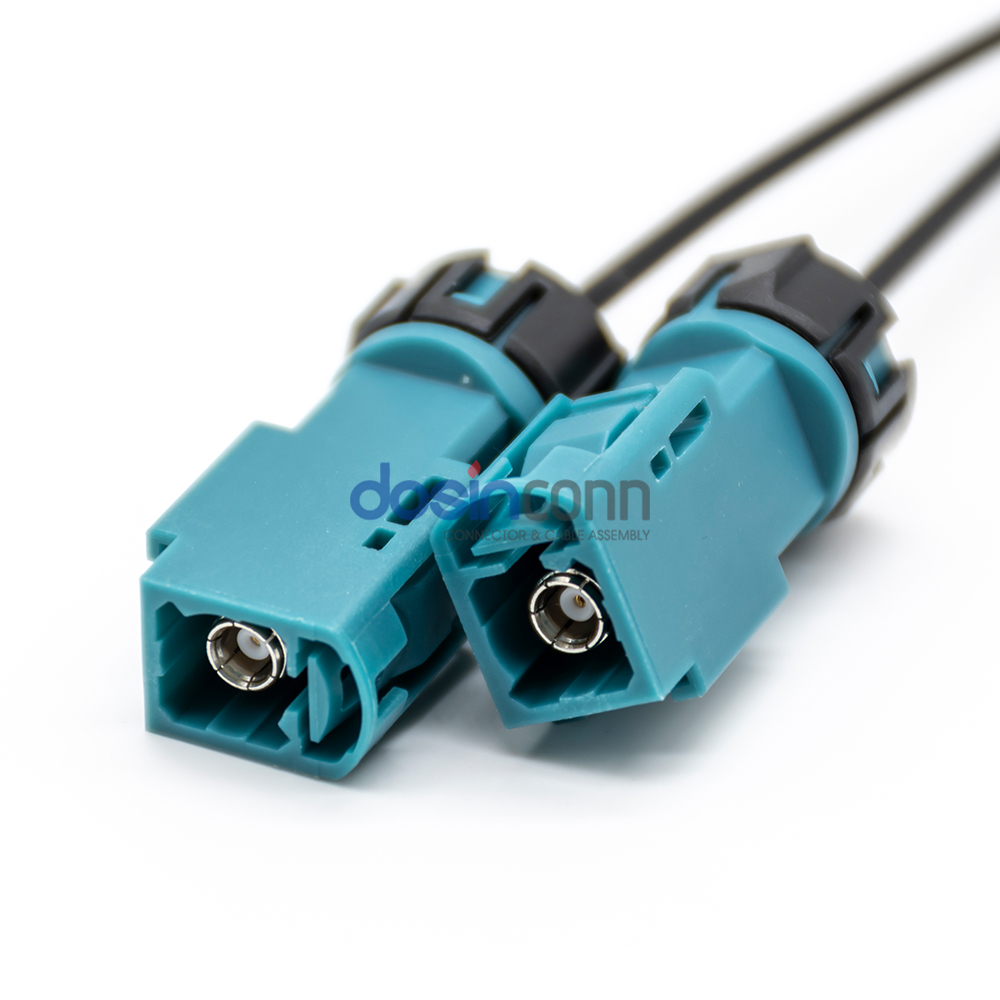

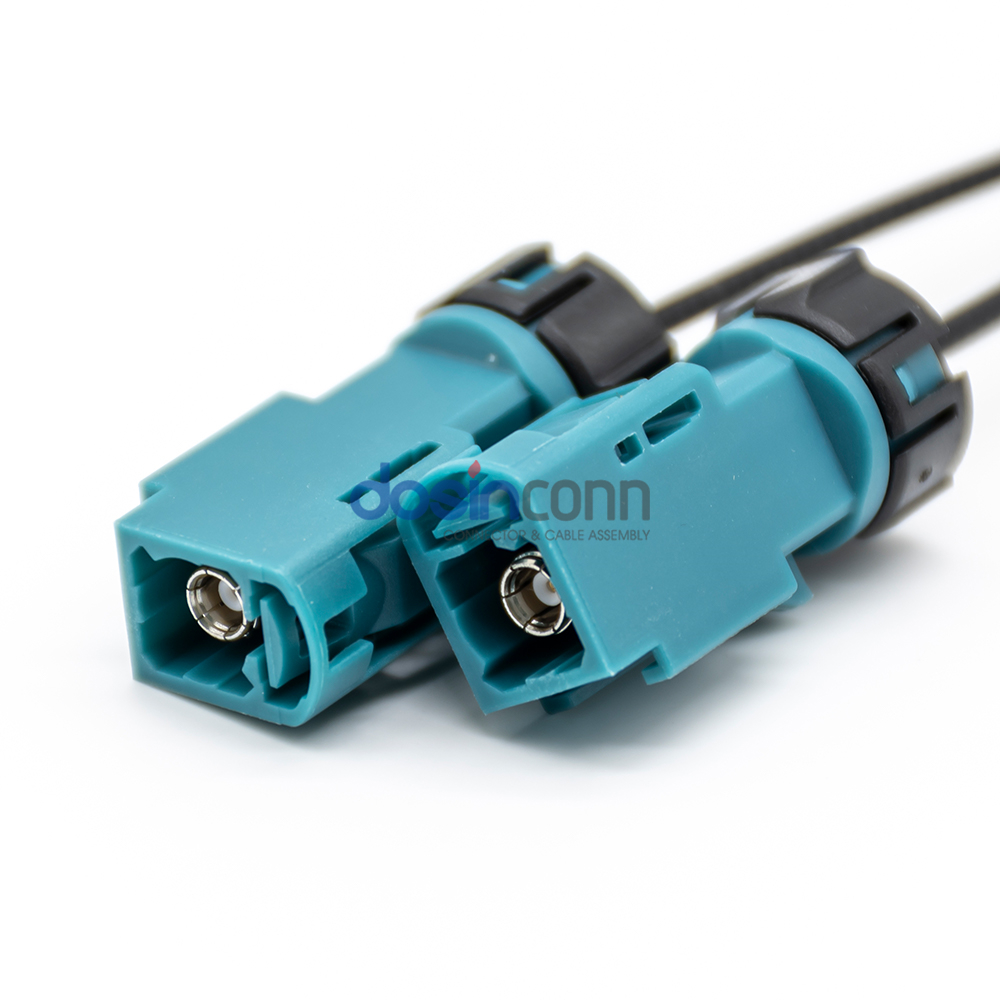

Fakra Close-up View

1. Mounting groove for cable connectors for chassis mounting
2. Secure primary locking system between plug and coupler with tactile and audible locking
3. Protection bars and protective strips prevent unintentional opening of the primary latching arm

4. Protection of the coaxial insert by shock and vibration resistant coded housing
5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
6. Sophisticated mechanical and color-coding system with 13 different codes

Fakra Coding

Basic Specifications

Style

Fakra to Fakra

1st Connector

Fakra Jack, Z Code

1st Contact Gender

Female

1st Connector Orientation

Straight

2nd Connector

Fakra Jack, Z Code

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Plastic Housing

PA66+30%GF

Contact Material

Copper

Insulator Material

PTFE

Electrical Specifications

Impedance

50 Ξ©

Frequency - Max

6GHz

Insultation Resistance

≧ 5 Γ— 10Β³ MΞ© (Milliohms min.)

Maximum Carrying Current

1A

Operating Voltage

335V r.m.s at sea level

Withstand Voltage

1000V r.m.s at sea level

Core Connection Resistance

≀ 20 MΞ©

Mechanical Specifications

Mating Durability

≧ 25 Cycles

Latch Holding Force

β‰₯110N

Anti-error Force

β‰₯40N

Environmental Specifications

Operating Temperature

-40Β°C~+85Β°C

Style

Fakra to Fakra

1st Connector

Fakra Jack, Z Code

1st Contact Gender

Female

1st Connector Orientation

Straight

2nd Connector

Fakra Jack, Z Code

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Plastic Housing

PA66+30%GF

Contact Material

Copper

Insulator Material

PTFE

Impedance

50 Ξ©

Frequency - Max

6GHz

Insultation Resistance

≧ 5 Γ— 10Β³ MΞ© (Milliohms min.)

Maximum Carrying Current

1A

Operating Voltage

335V r.m.s at sea level

Withstand Voltage

1000V r.m.s at sea level

Core Connection Resistance

≀ 20 MΞ©

Mating Durability

≧ 25 Cycles

Latch Holding Force

β‰₯110N

Anti-error Force

β‰₯40N

Operating Temperature

-40Β°C~+85Β°C
