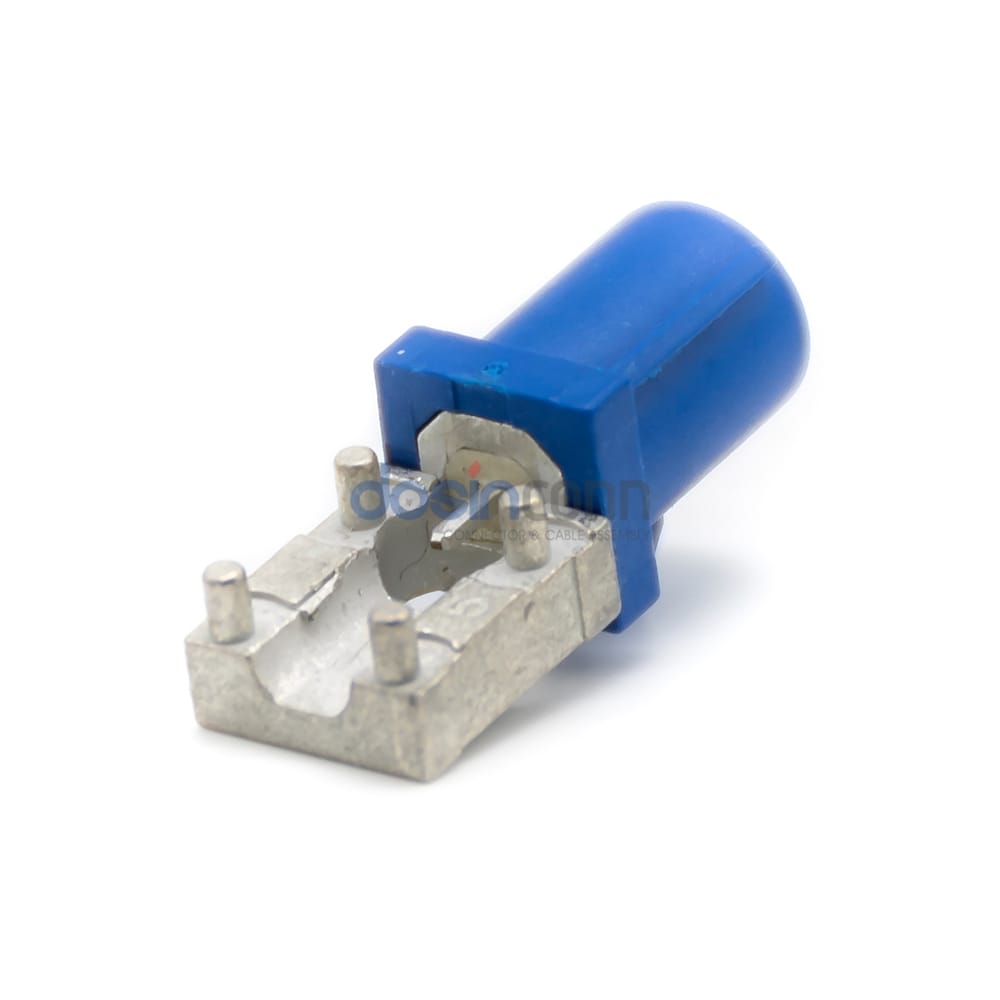

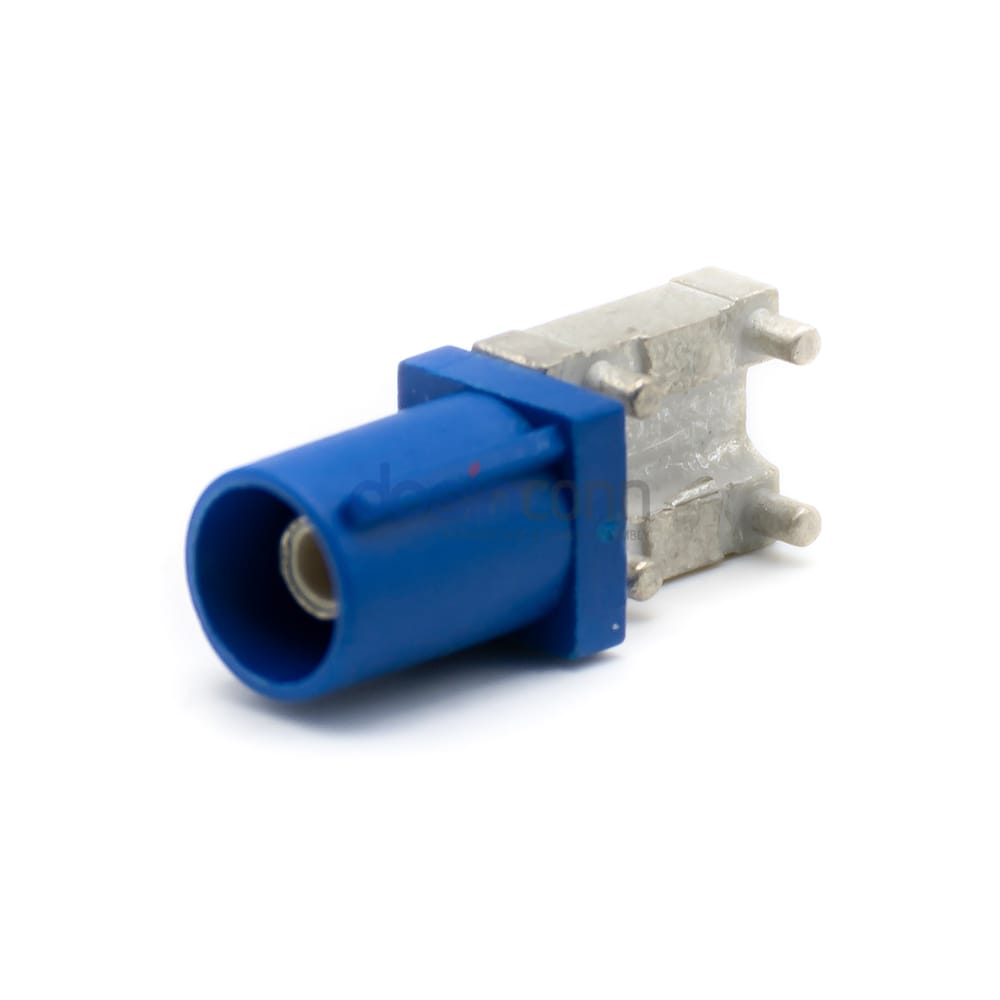

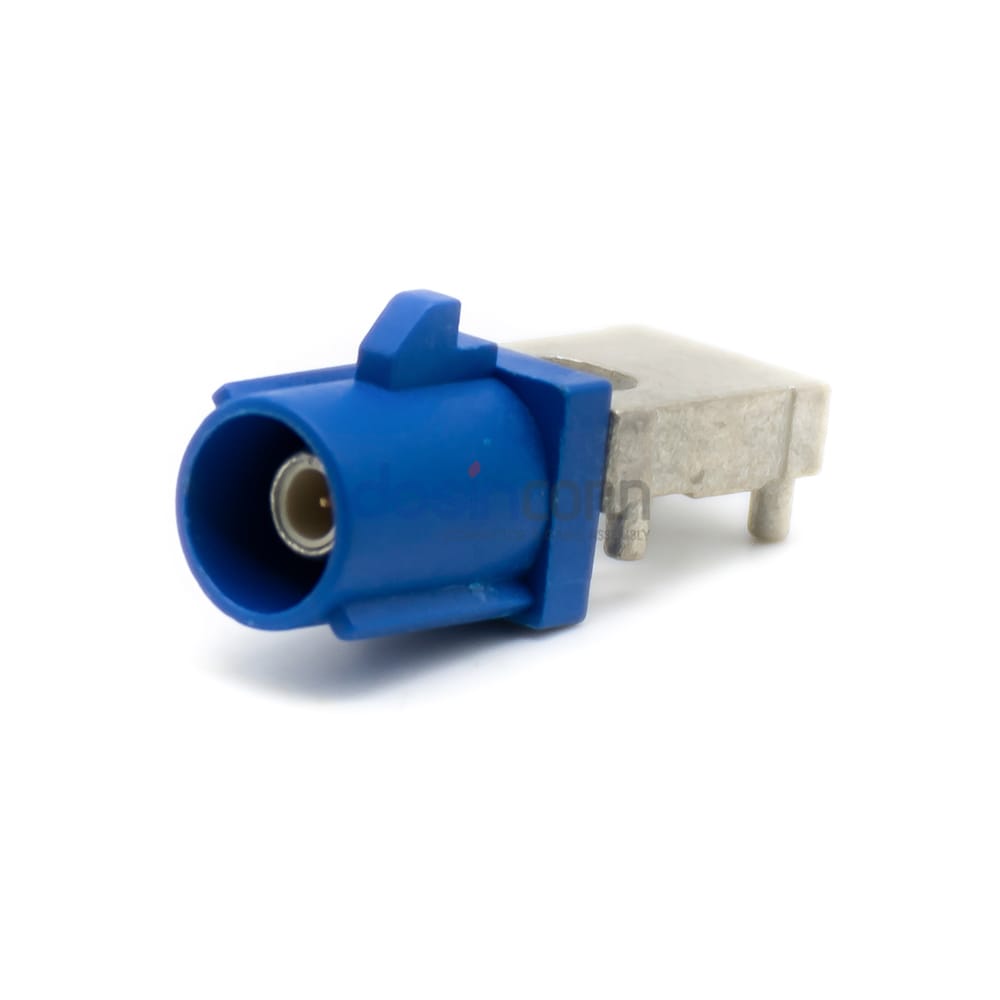

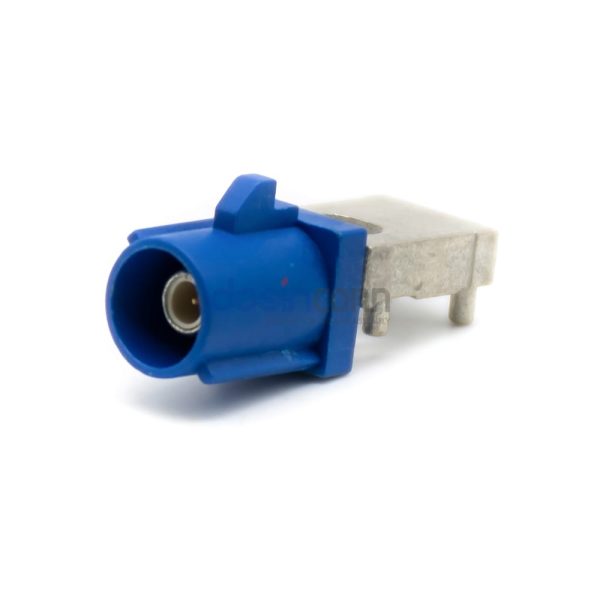

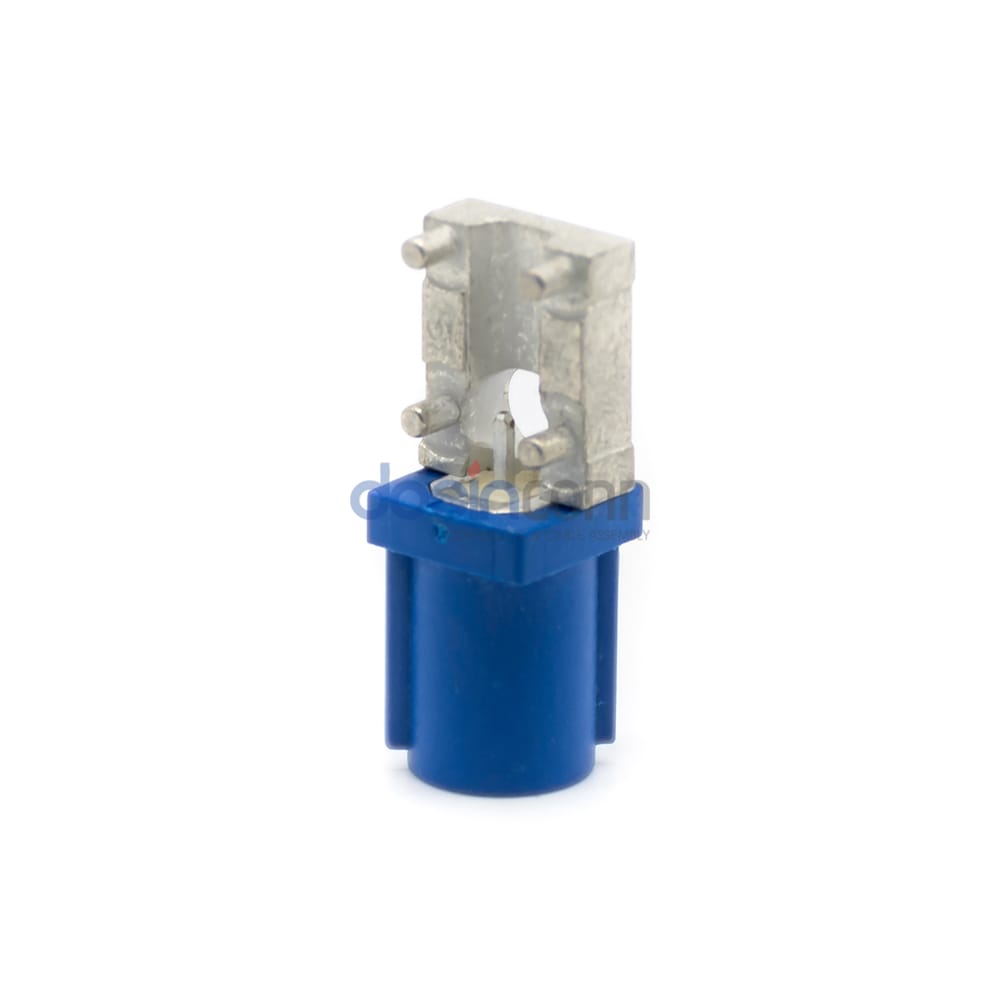

Fakra Plug Right Angle Male Pin Panel Mount SMT Blue C Code Solder

Part NO.: 101-11-10027 Category:

Authorized Sellers

  • 14 different mechanical and color codes
  • Plastic housing with locking feature
  • The frequency range of DC – 6GHz
  • Sealed units available

FAKRA (Fachkreis Automobil, a german standard) connectors are SMB based automotive-grade connectors that can operate up to 6 GHz. These connectors are embedded within a plastic housing with a locking feature that has an audible clicking noise that lets you know a connection has been made. They are available in 14 different mechanical layouts which are color coded for easy identification and mismatching prevention.

FAKRA connectors meet the mechanical and environmental requirements of the automotive industry. The worldwide automotive industry has standardized connectors based on the FAKRA and USCAR standards.

They can apply to a variety of connections in automotive vehicles. With applications including SDARS, cellular telephony, GPS navigation, keyless entry, and satellite radio.

Fakra Close-up View

1. Mounting groove for cable connectors for chassis mounting
2. Secure primary locking system between plug and coupler with tactile and audible locking
3. Protection bars and protective strips prevent unintentional opening of the primary latching arm

4. Protection of the coaxial insert by shock and vibration resistant coded housing
5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
6. Sophisticated mechanical and color-coding system with 14 different codes

Fakra Code

Interface



Basic Specifications

RF Series

Fakra

Connector Type

Plug

Contact Type

Male Pin

Orientation

Right Angle

Mounting Type

Mounting Feature

Number of Ports

Color

Plastic Housing

PA66+30%GF

Body Material

Body Plating

Nickel Plating

Contact Material

Copper Alloy

Contact Plating

Gold Plating

Insulator Material

PTFE

Mechanical Specifications

Fastening Type

Push-on

Mating Durability

≧ 25 Cycles

Anti-error Force

β‰₯40N

Latch Holding Force

β‰₯110N

Electrical Specifications

Frequency - Max

6GHz

Impedance

50 Ξ©

Withstand Voltage

750V r.m.s

Operating Voltage

335V r.m.s at sea level

Insultation Resistance

β‰₯ 1000 MΞ©

Environmental Specifications

Temperature Range

-40Β°C to +105Β°C

RF Series

Fakra

Connector Type

Plug

Contact Type

Male Pin

Orientation

Right Angle

Mounting Type

Mounting Feature

Number of Ports

Fastening Type

Push-on

Color

Plastic Housing

PA66+30%GF

Body Material

Body Plating

Nickel Plating

Contact Material

Copper Alloy

Contact Plating

Gold Plating

Insulator Material

PTFE

Frequency - Max

6GHz

Impedance

50 Ξ©

Temperature Range

-40Β°C to +105Β°C

Withstand Voltage

750V r.m.s

Operating Voltage

335V r.m.s at sea level

Mating Durability

≧ 25 Cycles

Insultation Resistance

β‰₯ 1000 MΞ©

Anti-error Force

β‰₯40N

Latch Holding Force

β‰₯110N
