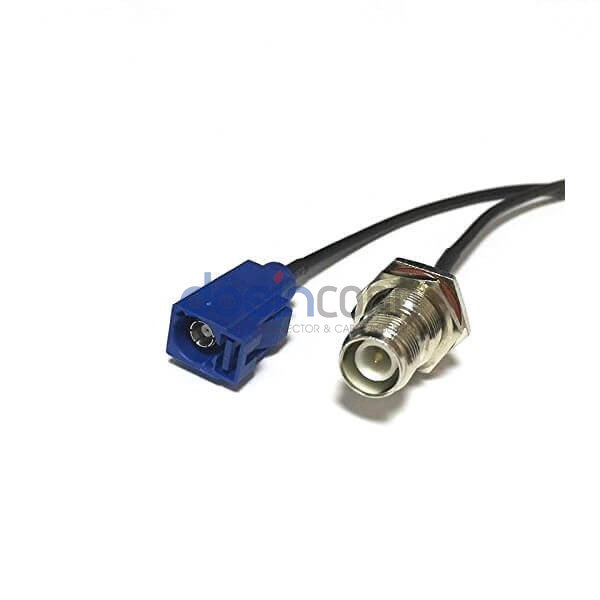

Fakra C Jack to RP TNC Jack Cable Assemblies 15cm RG174 cable 50ohm

Part NO.: 101-12-10126 Categories: ,

  • 14 different mechanical and color codes
  • Plastic housing with locking feature
  • Frequency range of DC – 6GHz

Fakra connectors are specifically designed for automotive applications. They are based on the SMB connector interface Fakra (Automated Expert Group) to establish a unified connector system and standards that everyone will follow. Due to its special standard locking system, Fakra connectors meet the high performance and safety requirements of today’s automotive industry.

Fakra Electrotechnical Elements

Fakra Close-up View

1. Mounting groove for cable connectors for chassis mounting
2. Secure primary locking system between plug and coupler with tactile and audible locking
3. Protection bars and protective strips prevent unintentional opening of the primary latching arm

4. Protection of the coaxial insert by shock and vibration resistant coded housing
5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
6. Sophisticated mechanical and color-coding system with 13 different codes

Fakra Coding

Basic Specifications

Style

Fakra C to TNC

1st Connector

Fakra C Jack

1st Contact Gender

Female

1st Connector Orientation

Straight

2nd Connector

RP TNC Jack

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Cable Type

Electrical Specifications

Impedance

50 Ξ©

Frequency Range

0-14GHz

Environmental Specifications

Operating Temperature

-65Β°C~+165Β°C

Style

Fakra C to TNC

1st Connector

Fakra C Jack

1st Contact Gender

Female

1st Connector Orientation

Straight

2nd Connector

RP TNC Jack

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Impedance

50 Ξ©

Frequency Range

0-14GHz

Cable Type

Operating Temperature

-65Β°C~+165Β°C
