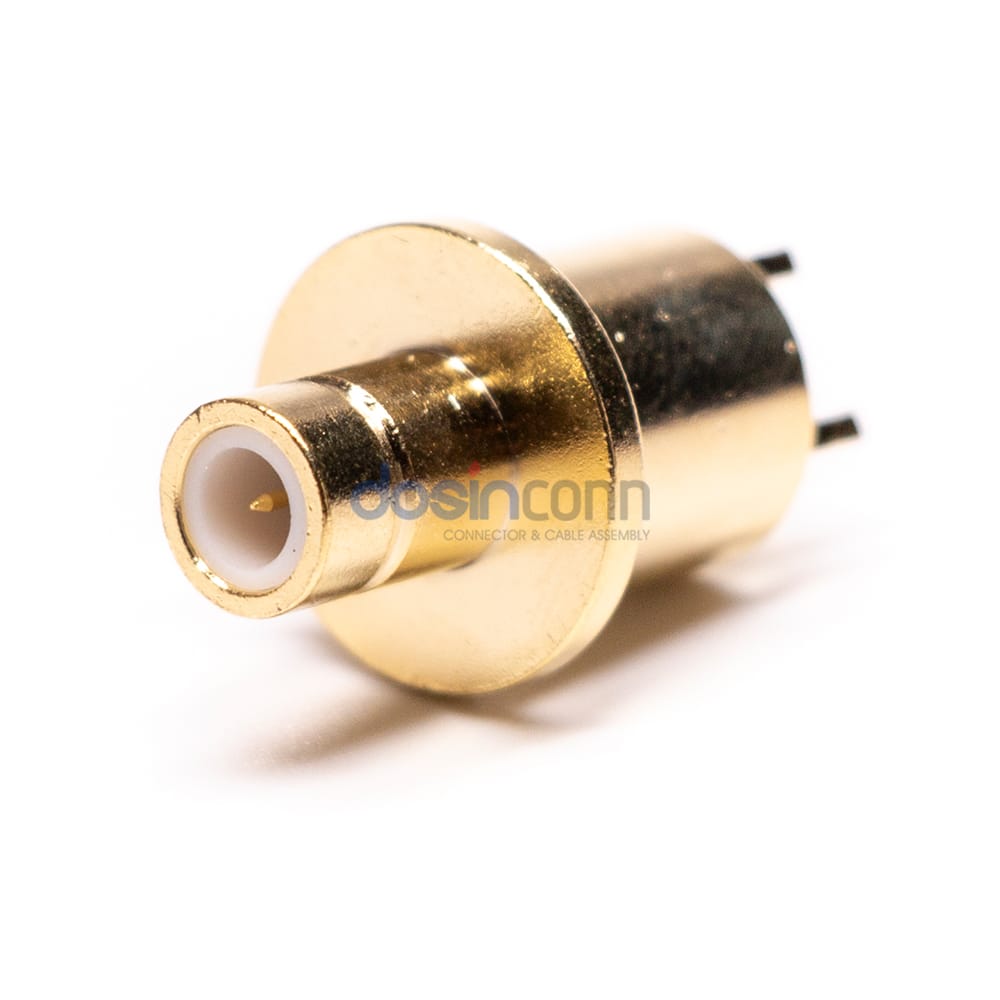

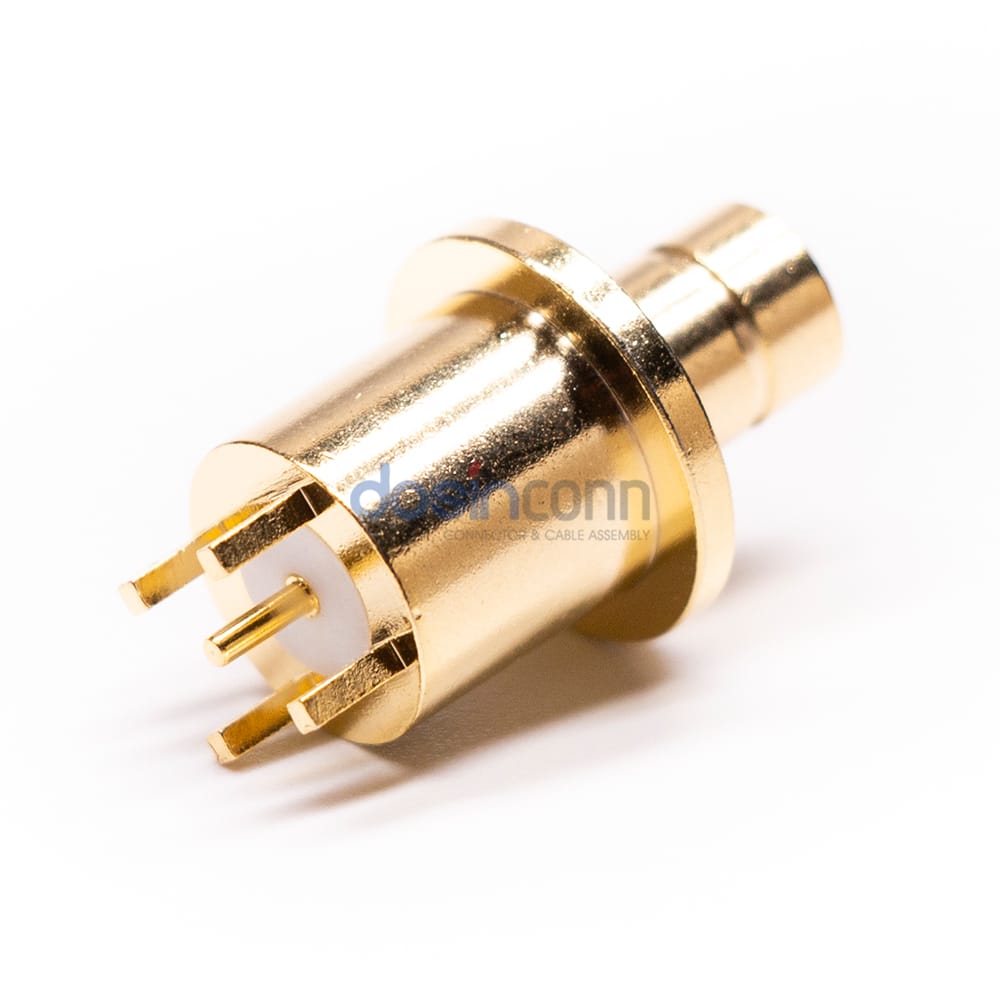

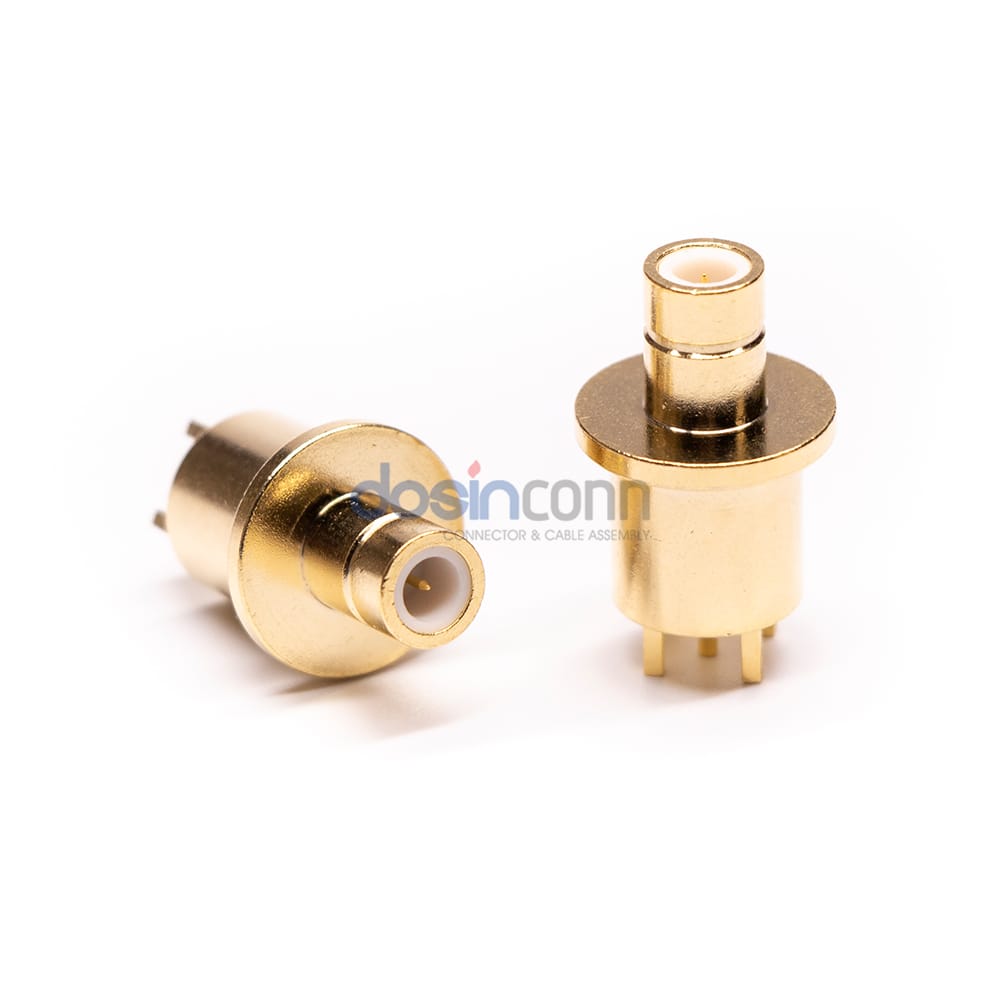

SMZ 75 Ohm connectors are designed to provide a well-matched system impedance for critical telecommunication and CATV applications. The SMZ is a snap-on series with an interface similar to, but larger than the SMB series. These connectors are rated to 2 GHz but have been successfully used above 4 GHz.
| RF Series | SMZ Type |
|---|---|
| Connector Type | Jack |
| Orientation | Straight |
| Contact Type | Male Pin |
| Contact Termination Style | |
| Mounting Type | |
| Mounting Feature | |
| Number of Ports | |
| Body Material | |
| Body Plating | Nickel Plating |
| Insulator Material | Teflon White |
| Contact Material | Brass |
| Contact Plating | Gold Plating |
| Fastening Type | Snap On |
|---|
| Impedance | 75 Ξ© |
|---|---|
| Rated Voltage | 500 V rms. |
| Dielectric Withstanding Voltage | 1500 V rms |
| Insultation Resistance | 5GW |
| Center Contact Resistance | 3mW. |
| Outer Contact Resistance | 2.5mW. |
| Frequency Range | DC – 3 GHz for 75 ohm |
| Temperature Range | οΉ£65β to +165β |
|---|
| RF Series | SMZ Type |
|---|---|
| Connector Type | Jack |
| Orientation | Straight |
| Contact Type | Male Pin |
| Contact Termination Style | |
| Mounting Type | |
| Mounting Feature | |
| Fastening Type | Snap On |
| Number of Ports | |
| Impedance | 75 Ξ© |
| Body Material | |
| Body Plating | Nickel Plating |
| Insulator Material | Teflon White |
| Contact Material | Brass |
| Contact Plating | Gold Plating |
| Rated Voltage | 500 V rms. |
| Dielectric Withstanding Voltage | 1500 V rms |
| Insultation Resistance | 5GW |
| Center Contact Resistance | 3mW. |
| Outer Contact Resistance | 2.5mW. |
| Temperature Range | οΉ£65β to +165β |
| Frequency Range | DC – 3 GHz for 75 ohm |
