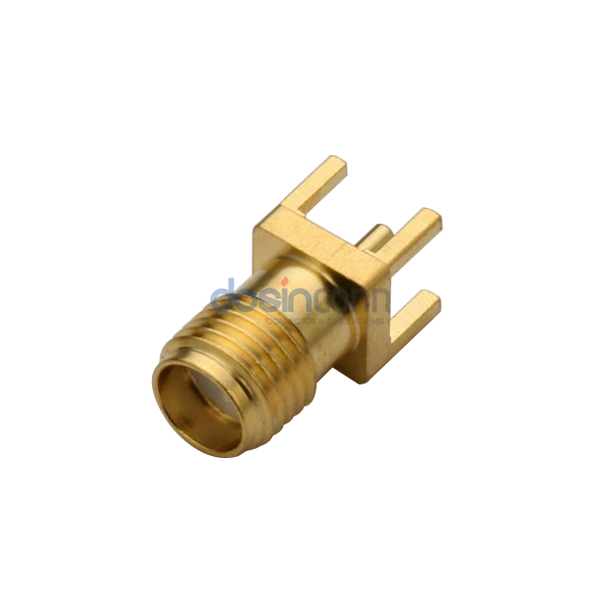

Coaxial Connector SMA Straight Jack Female Pin Panel Mount Through Hole 50 Ohm

Part NO.: RHT-612-0268 Category:

Authorized Sellers

  • Lightweight, compact, and vibration-proof design
  • High-strength designs for harsh environments
  • Available in brass and stainless steel with gold, nickel, and passivated plating
  • Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables, and industry-standard semi-rigid and conformable cables
  • Subminiature design: Space-saving vertical mating

The SMA connector is a semi-precision sub-miniature RF and microwave connector that is extensively used. Especially for RF connections within electronic systems for frequencies up to 18 GHz and sometimes more.

The SMA connector comes in a variety of formats, male, female, straight, right-angled, bulkhead fitting, and many more enabling it to meet most requirements. Its sub-miniature size also enables it to be used, even within relatively small items of electronic equipment.

Although now well established, the SMA connector is likely to see its use extended as many new RF systems see their operating frequencies extending well into the microwave region.

SMA Cable Connector

SMA_cable

SMA Panel Connector

SMA_Panel

SMA Connector Interface

SMA-Interface

Application

SMA-Application-2

Basic Specifications

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Mounting Feature

Contact Termination Style

Insulator Material

PTFE

Body Material

Body Plating

Gold Plating

Contact Material

Phosphor Bronze

Contact Plating

Gold Plating

Electrical Specifications

Impedance

50 Ξ©

VSWR

R/A type ≦ 1.5MAX, Straight type≦1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 MΩ Max

Outer Contact Resistance

≦ 2.0 MΞ© (Milliohms Max.)

Insultation Resistance

≧ 5 x 10Β³ MΞ© (Megohms MIN.)

Mechanical Specifications

Mating Durability

β‰₯ 500 Cycles

Fastening Type

1/4-36 Threaded

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Mounting Feature

Contact Termination Style

Insulator Material

PTFE

Body Material

Body Plating

Gold Plating

Contact Material

Phosphor Bronze

Contact Plating

Gold Plating

Impedance

50 Ξ©

VSWR

R/A type ≦ 1.5MAX, Straight type≦1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 MΩ Max

Outer Contact Resistance

≦ 2.0 MΞ© (Milliohms Max.)

Insultation Resistance

≧ 5 x 10Β³ MΞ© (Megohms MIN.)

Mating Durability

β‰₯ 500 Cycles

Fastening Type

1/4-36 Threaded
