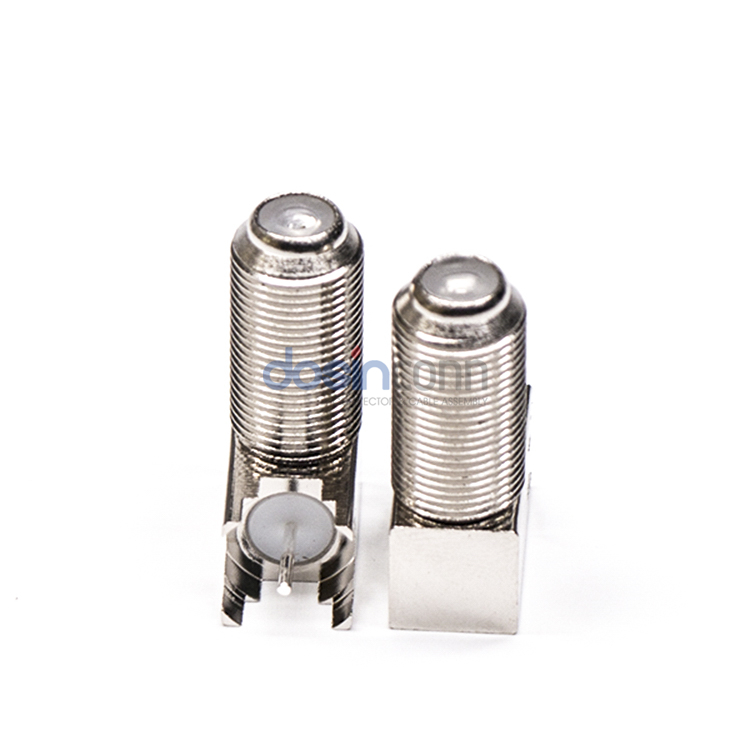

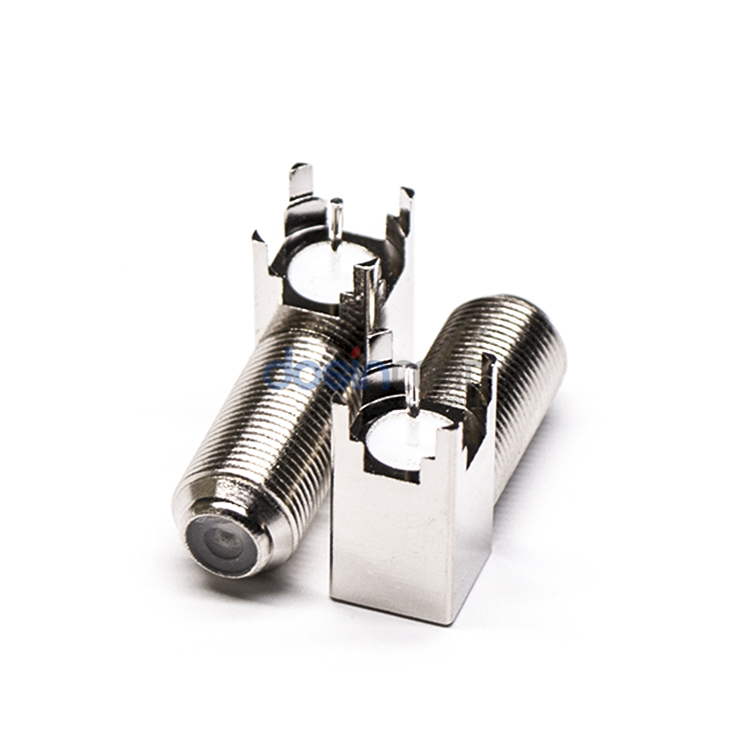

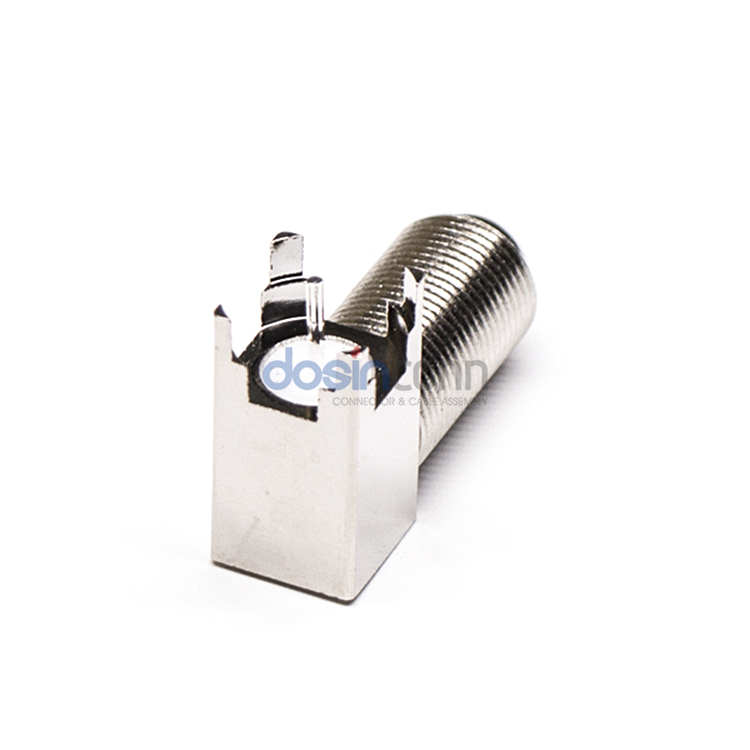

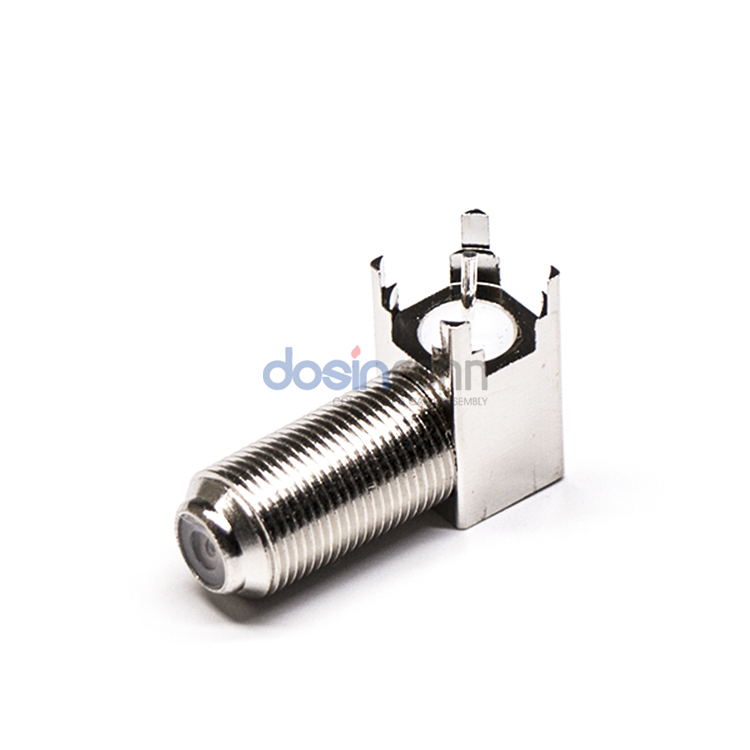

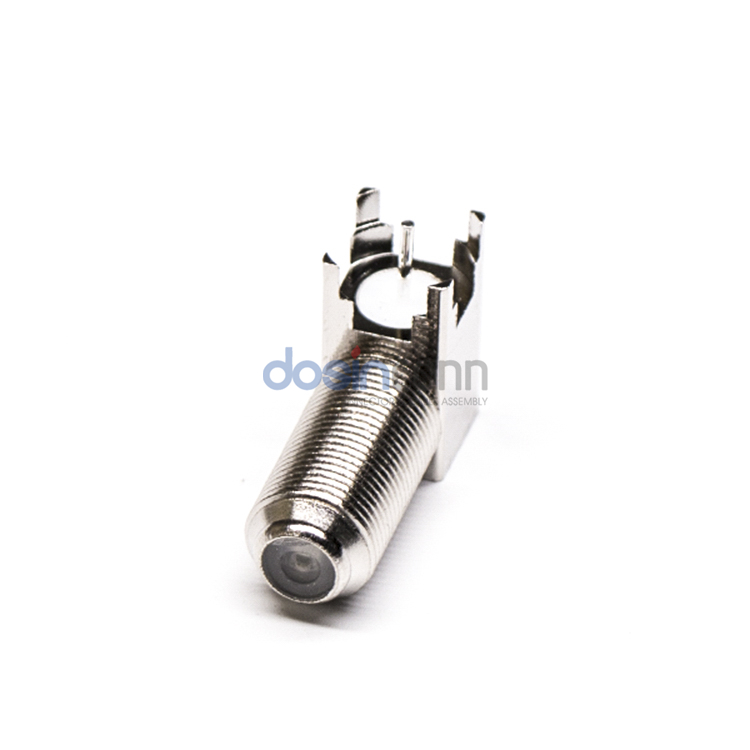

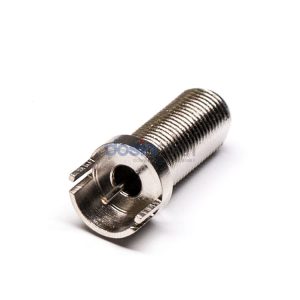

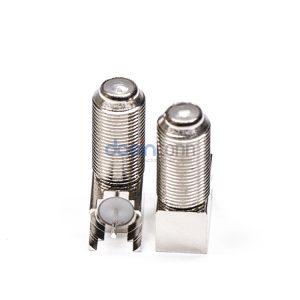

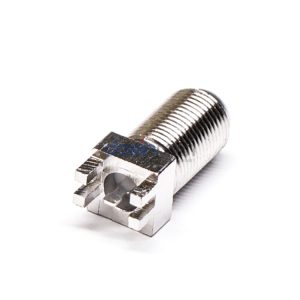

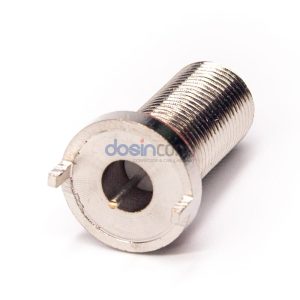

Coaxial Connector F Type Right Angle Jack Female Pin Panel Mount Through Hole 75 Ohm

Part NO.: RHT-611-0332 Category: F Type Connector

Authorized Sellers

Cylindrical coaxial contact provides superior RF performance and excellent insertion/withdrawal characteristics
Multiple PCB mount packages: surface mount, edge mount, right angle, and straight, meets many customer application need
Accommodates .022-.042 in. diameter conductor sizes
One connector accommodates a wide range of cable sizes, reducing part numbers

Chat Online

Get Quotation

The F-Type connector series is a durable, high-performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set-top boxes, and cable modems. The F connector (also F-type connector) is a coaxial RF connector commonly used for “over the air” terrestrial television, cable television, and universally for satellite television and cable modems, usually with RG-6/U cable or with RG-59/U cable.

F Type Cable Connector

F Type Panel Connector

F Type Plug and Jack Drawing

Application

Basic Specifications

RF Series	F Type
Connector Type	Jack
Contact Type	Female Pin
Orientation	Right Angle
Mounting Type	Panel Mount
Mounting Feature	Through Hole
Contact Termination Style	Solder
Insulator Material	Polypropylene
Body Material	Copper Alloy
Body Plating	Nickel Plating
Contact Material	Brass
Contact Plating	Tin Plating

Electrical Specifications

Impedance	75 Ω
Frequency Range	DC-1GHz
VSWR	R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Dielectric Withstanding Voltage	500 V rms
Working Voltage	170 V rms
Center Contact Resistance	≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance	≦ 5 MΩ (Milliohms Max.)
Insultation Resistance	≥ 1000 MΩ

Mechanical Specifications

Fastening Type	3/8-32 Threaded
Contact Retention	20 in-lbs min.
Mating Durability	≥ 500 Cycles

Environmental Specifications

Temperature Range	−40°C to +140°C
