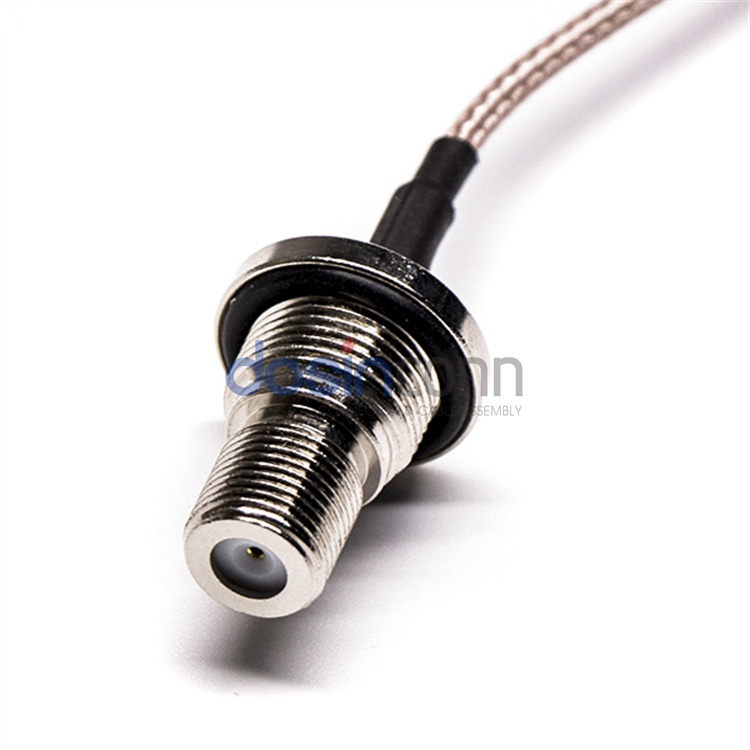

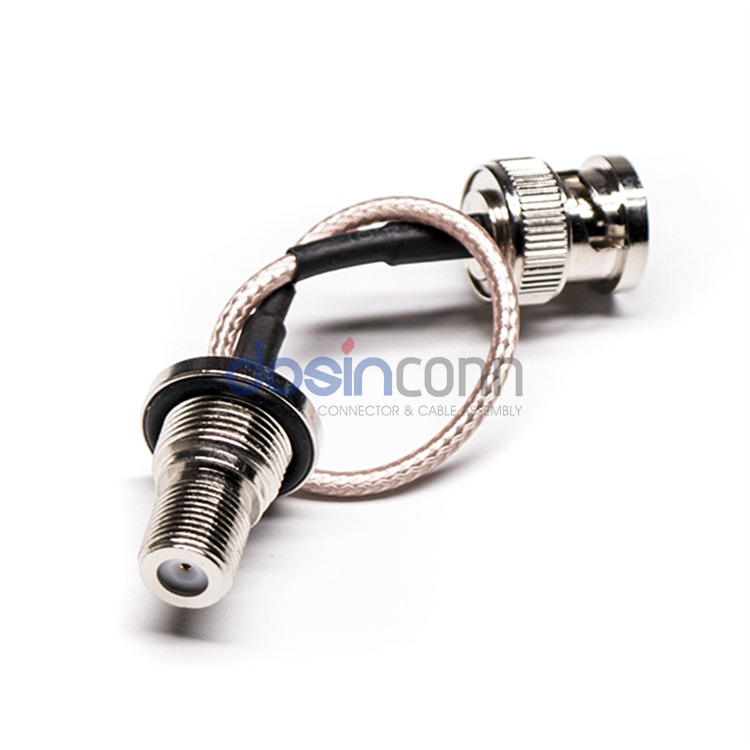

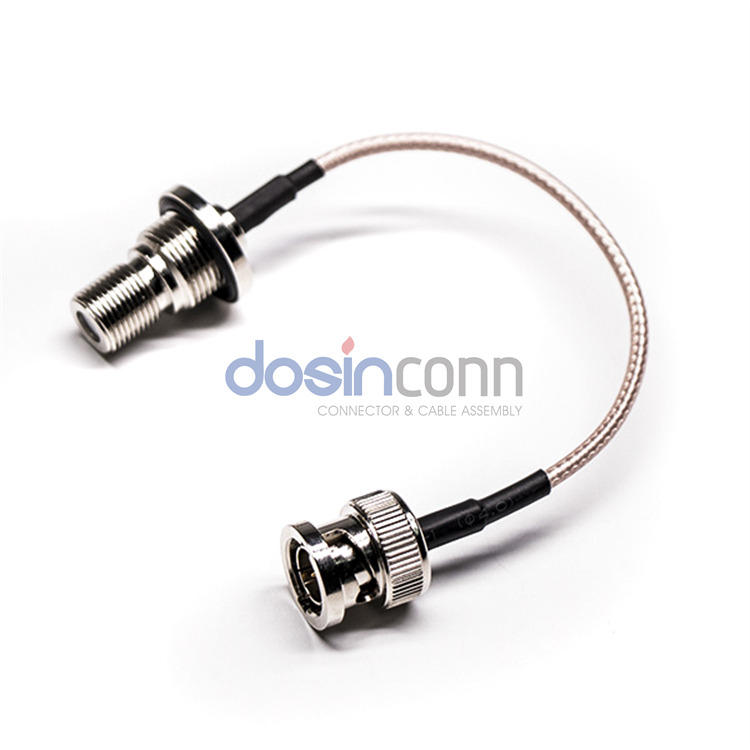

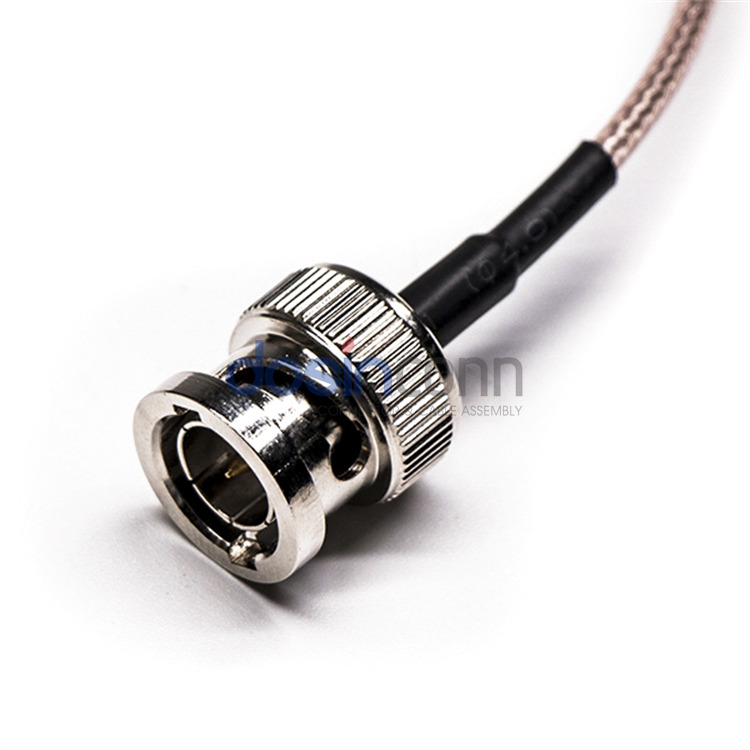

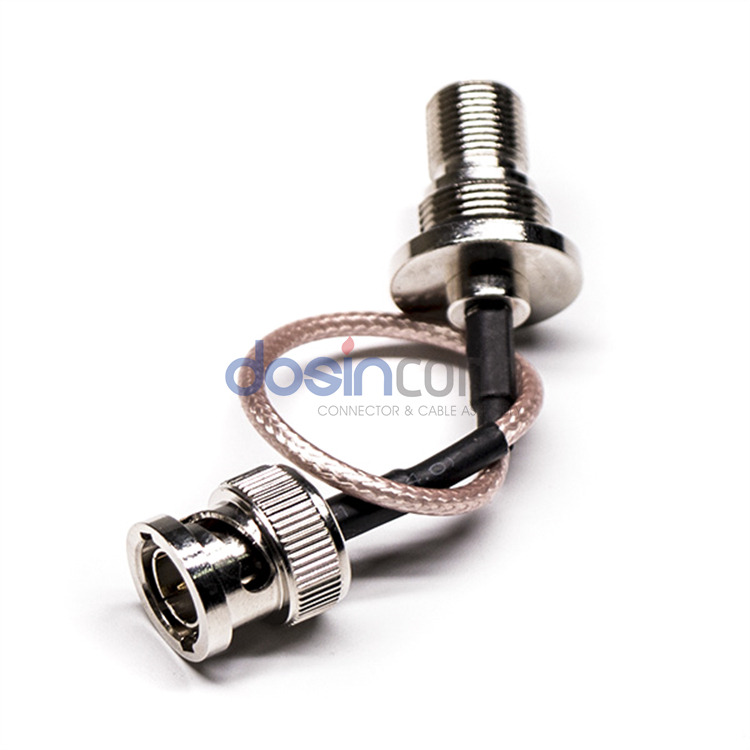

BNC Plug to F Jack RF Cable 10cm RG179 Cable 50ohm

Part NO.: R02-B01-10003-10 Categories: ,

Authorized Sellers

  • Simple Construction, Good Stability and Cost-Effective.
  • Good resistance to electromagnetic interference.
  • With excellent electrical and mechanical properties and good shielding.
  • Performing very well over short distances such as home installations.

RF Cable Assemblies

RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)

Structure Diagram of RF Harness

Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

Different Types of RF Harness

Coaxial cable

Send us your drawings or samples, we will customize them for you accordingly.

RF Harness Application Scenarios

bnc to f type cable Application Scenarios

Wired solutions are used in highly complex infrastructures where flexibility, security, and performance are critical. Examples include measurement lines in test laboratories. In addition, they are suitable for electrical and radio technology, communications, and data technology – all areas with high requirements for transmission quality or shielding.

Basic Specifications

Style

BNC to F

1st Connector

BNC Plug

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

F Jack

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Cable Type

Cable Length

10cm

Electrical Specifications

Impedance

50 Ξ©

Frequency Range

0-6GHz

Style

BNC to F

1st Connector

BNC Plug

1st Contact Gender

Male

1st Connector Orientation

Straight

2nd Connector

F Jack

2nd Contact Gender

Female

2nd Connector Orientation

Straight

Impedance

50 Ξ©

Frequency Range

0-6GHz

Cable Type

Cable Length

10cm
