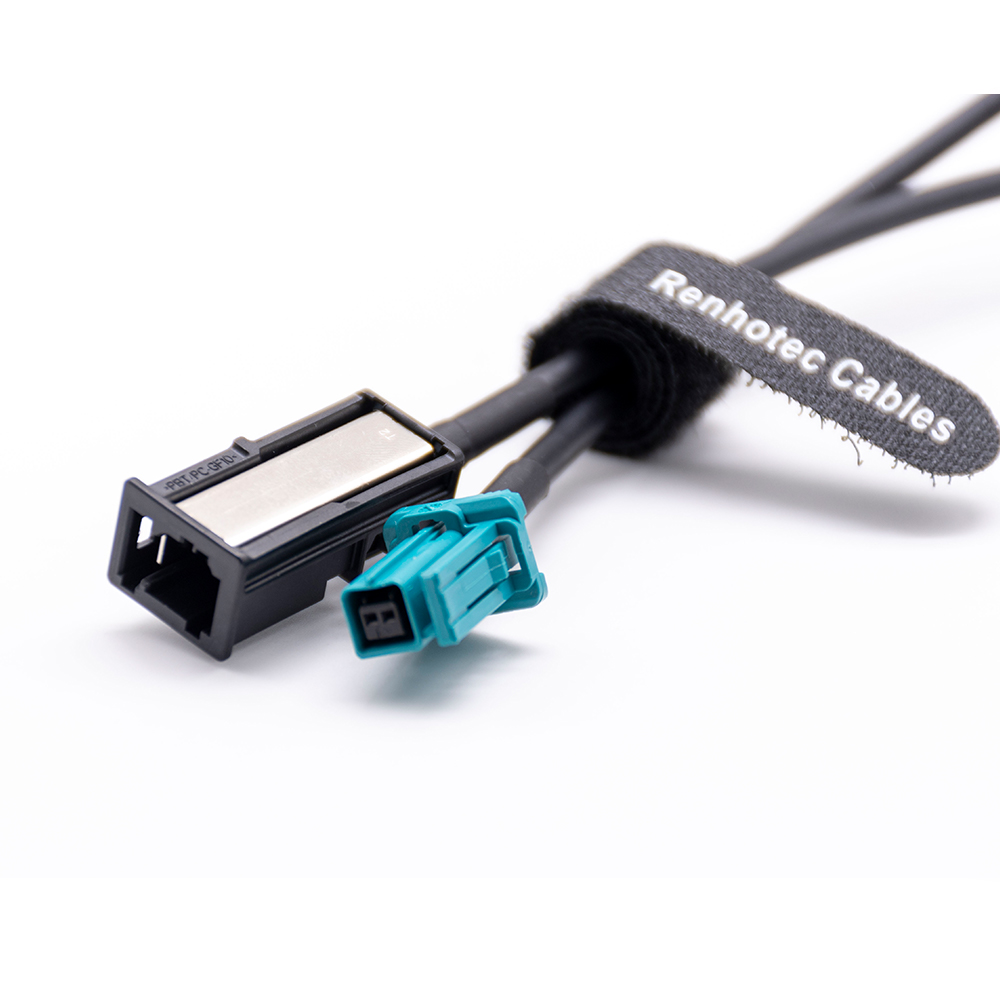

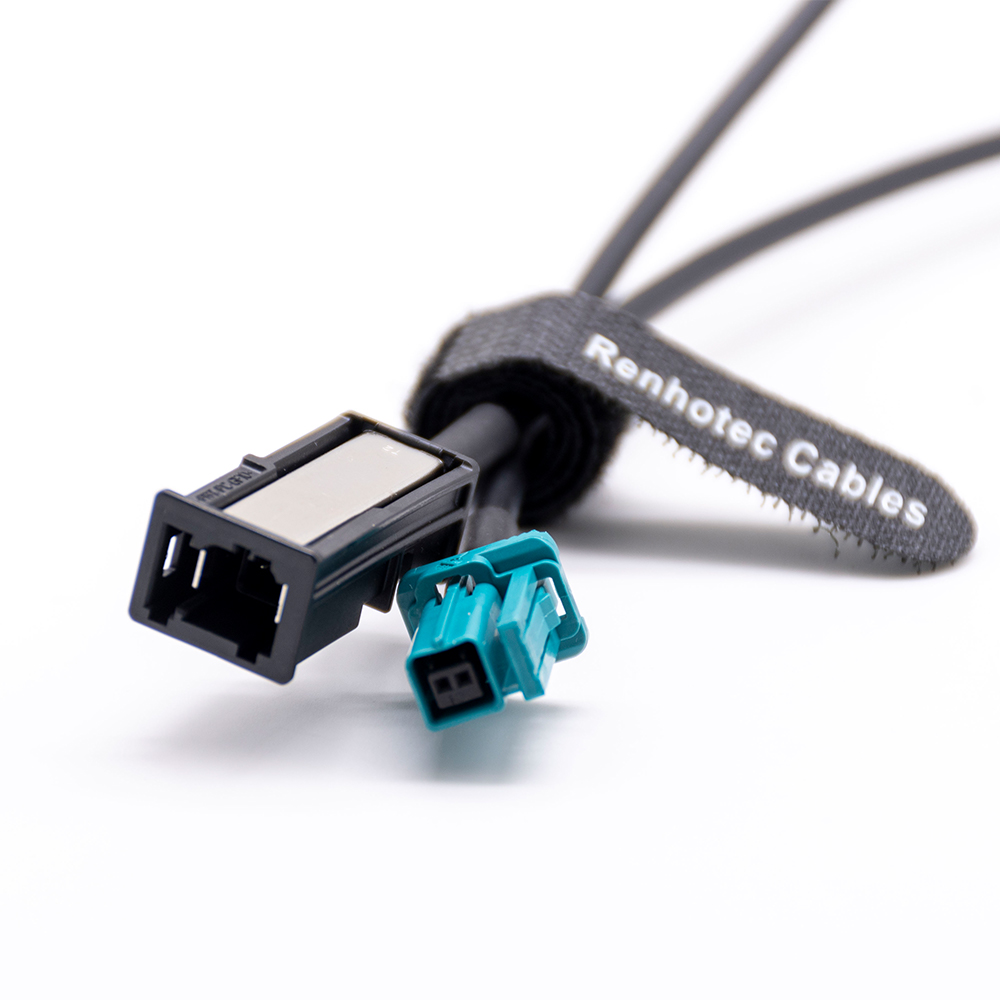

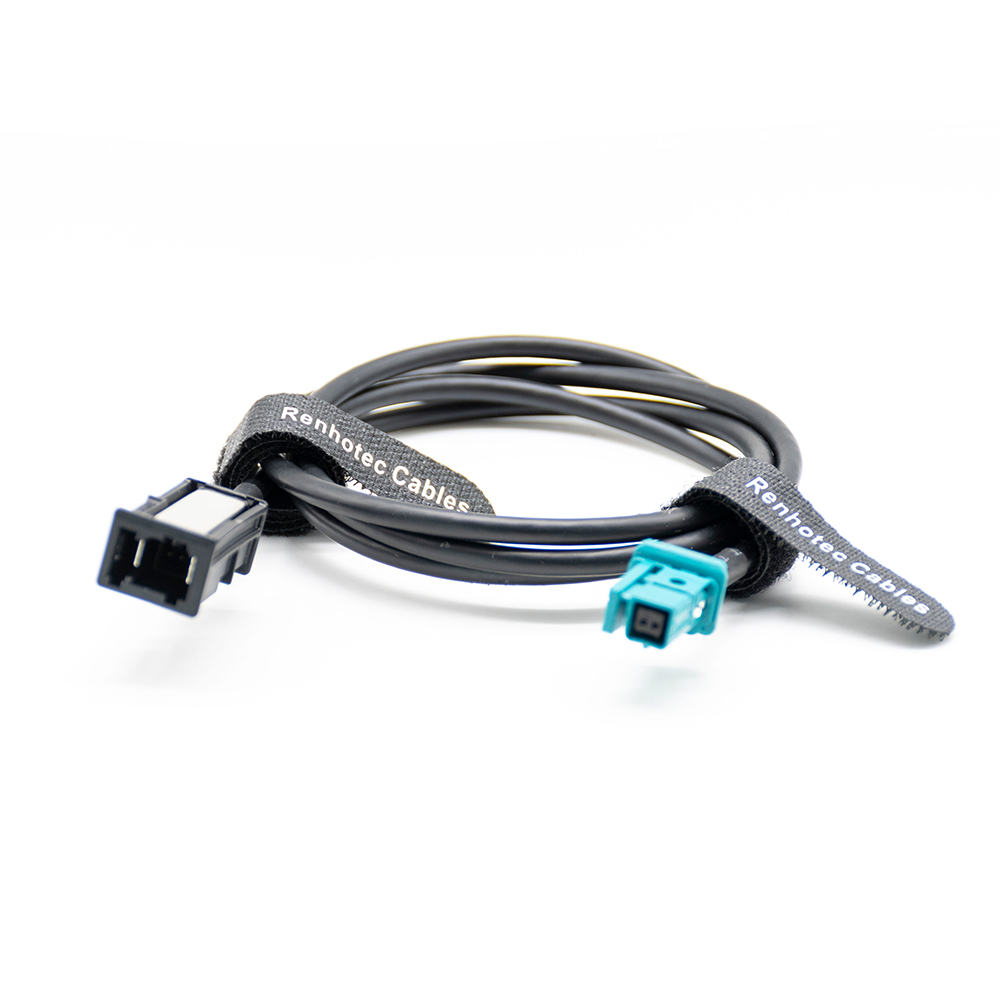

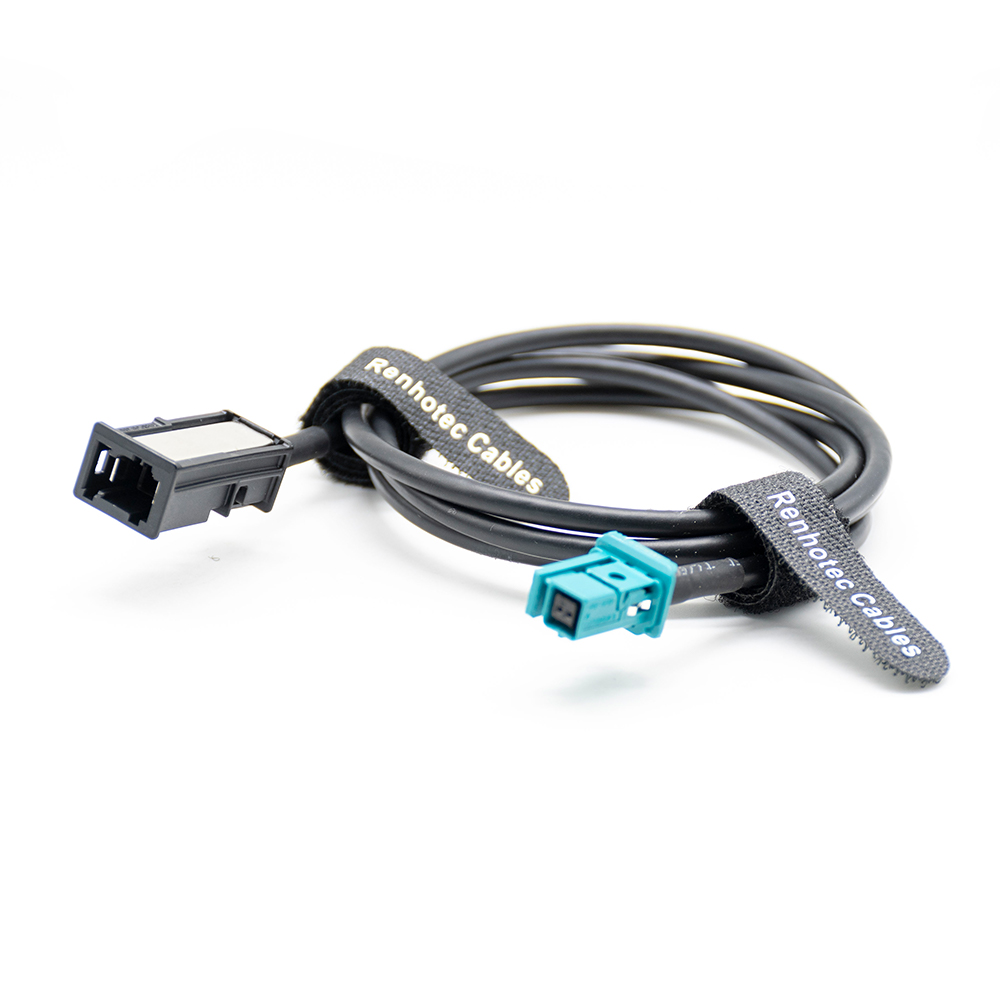

2302510-9 Automotive Ethernet Cable Assemblies,A Code Male to Z code Female

Part NO.: 104-12-10009 Category: Tag:

  • 600mm to 10m cable length range
  • Plug, receptacle, socket, and no connector ends available
  • Female/female, male, and male/male genders

Automotive Ethernet Cable Assemblies

Automotive Ethernet Cable Assemblies are modular and scalable miniaturized data connector system for Automotive Ethernet. It can transmit up to 1 Gbps according to IEEE 100BASE-T1 and 1000BASE-T1 standards, and up to 4 Gbps, based on alternative technologies. It offers true automotive robustness and is compatible with both unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP) variants.

Automotive Ethernet Cable Assemblies offer 600mm to 10m cable lengths and female/female, male, and male/male gender options. These cable assemblies include no connector, plug, receptacle, and socket connector ends. Automotive Ethernet Cable Assemblies are Miniaturized Automotive Terminals for Ethernet applications.

Application

Product Portfolio Overview

Automotive Ethernet Cable Assemblies

Basic Specifications

1st Connector

2302510-9, Z Code

1st Contact Gender

Female

1st Connector Orientation

Straight

2nd Connector

2302461-1, A Code, 2302461-3, C Code

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Electrical Specifications

Impedance

100 Ξ©

1st Connector

2302510-9, Z Code

1st Contact Gender

Female

1st Connector Orientation

Straight

2nd Connector

2302461-1, A Code, 2302461-3, C Code

2nd Contact Gender

Male

2nd Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Impedance

100 Ξ©
