SSMB Connectors
SSMB coax connectors with 0-3GHz frequency and snap-on coupling. Widely used for Military, Instrumentation, PC/LAN, Wireless, etc.
SSMB connector is an an alternatinve of larger connectors like SMA、SMB connectors. With quick snap-on mating design for fast connection. It has compact design, high durability and outstanding electronic performance have made it one of the most widely used connectors in RF and Microwave applications across the board.
- Lightweight and space saving alternative to SMB;
- Snap-on interface for quick and easy installation;
- 50 Ohm options available;
SSMB Connector Products
SSMB Straight PCB Mount Jack Receptacle RF Connector Through Hole

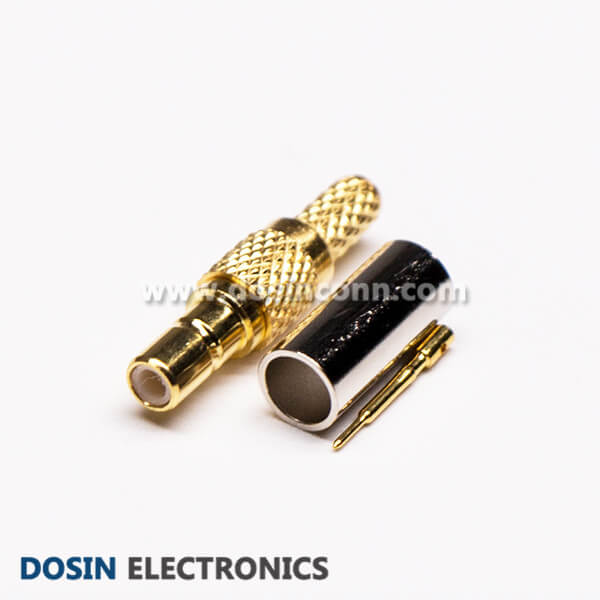

SSMB Straight Plug Crimp Microwave Radio Frequency Connectors Window Solder

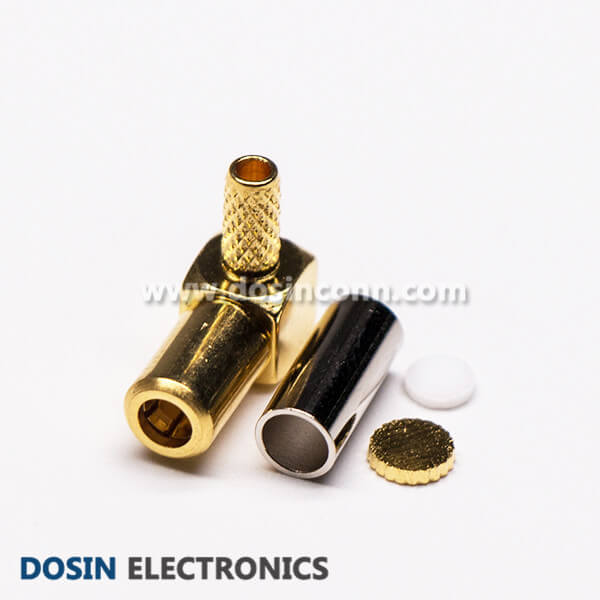

SSMB Connector Right Angle Plug Crimp for RG174 RG316

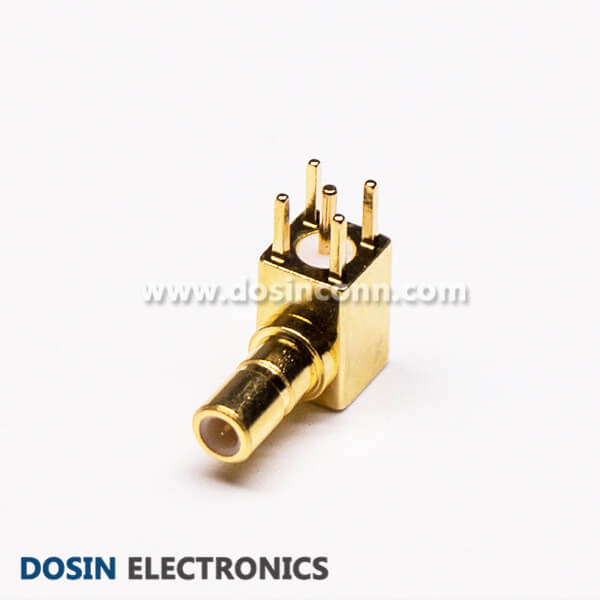

SSMB Right Angle PCB Mount Jack Receptacle Coaxial Connector Through Hole

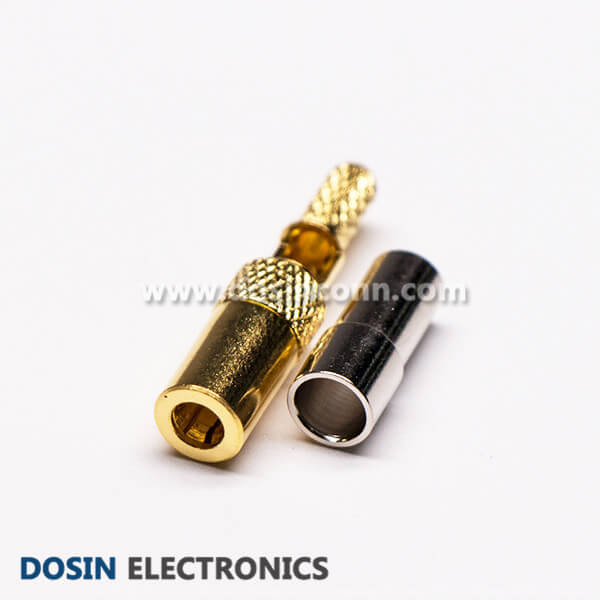

SSMB Straight Jack Crimp Type RF Connector for RG174
SSMB Connector Technical Datasheet
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: DC- 14 GHz
- Straight DC- 3 GHz: 1.05
- RF Leakage: -80 dB to 3 GHz (-70 dB to 6GHz)
- Power Handling:125 W at 40⁰C
Mechanical Characteristics
- Engagement Force: 25 N (5.6 lb) typical
- Disengagement Force: 20 N (4.5 lb) typical
- Connector Durability: 500 mating cycles min
Environmental Characteristics
- Temperature Range: -65⁰C to +165⁰C
