DIN 1.0/2.3 Connector

DIN 1.0/2.3 Connectors

DIN 1.0/2.3 rf connectors with frequency up to 10GHz support high data rates
Widely used for Aerospace and Defense (Communication systems),
Telecommunications (CATV, Central office, High-density Radios, Base station, Switching equipment ) Networking: Video Equipment, Radio boards etc…

DIN 1.0/2.3 connector is introduced in the 1990s for telecommunication applications. It has 50 Ω and 75 Ω impedance for choice and are compatible with the most widely used cable sizes. The push/pull lock and release feature to make it really easy to use.

Compact design is ideal for limit space application and save space in delivery;
Push/pull mating is excellent for quick installation without vibrate loose;
Great performance with frequency up to 10GHz support high data rates.

DIN 1.0/2.3 Connector Products

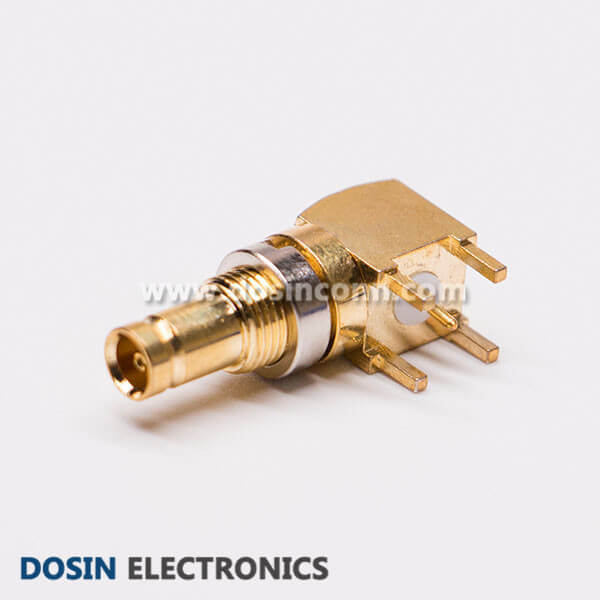

DIN 1.0/2.3 Bulkhead Right Angled Male Connector for PCB Mount

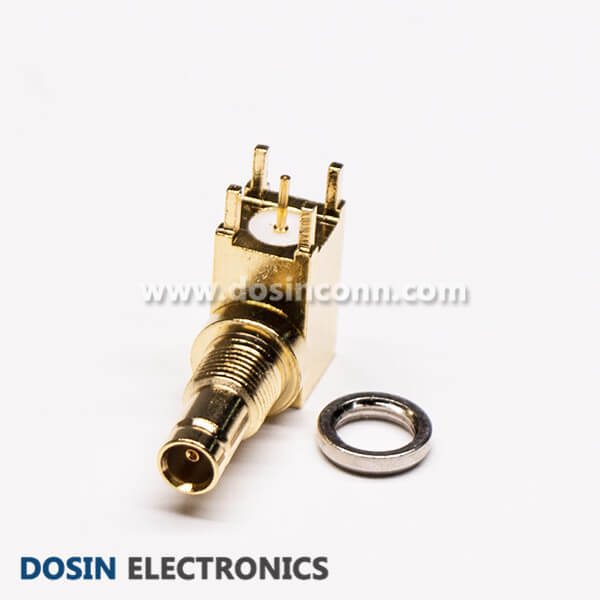

DIN 1.0/2.3 Right Angle Female Connector Through Hole for PCB Mount

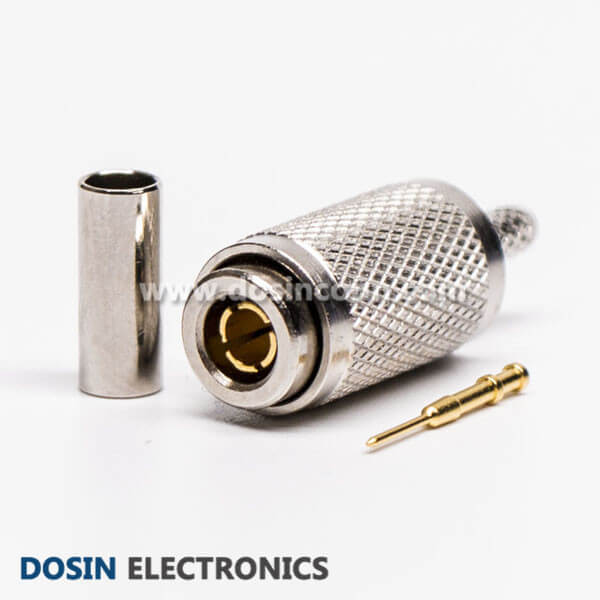

DIN 1.0/2.3 Male 180 Degree Crimp Type Connector for 1855A Cable

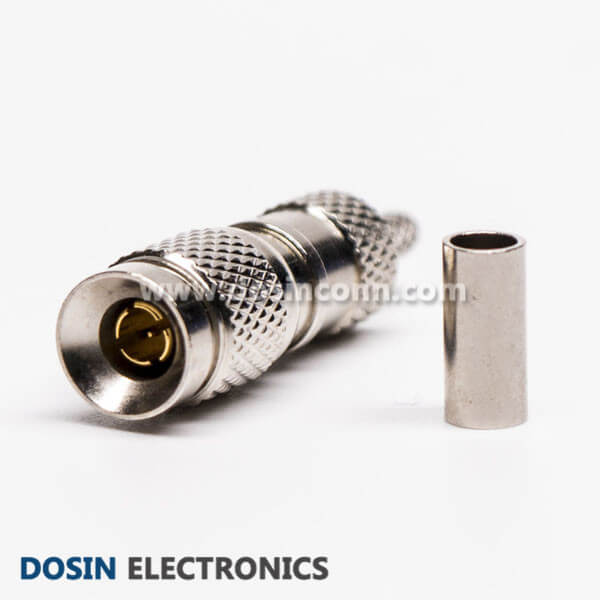

DIN 1.0/2.3 Connector Straight Crimp Type Plug for Cable RG316 RG174

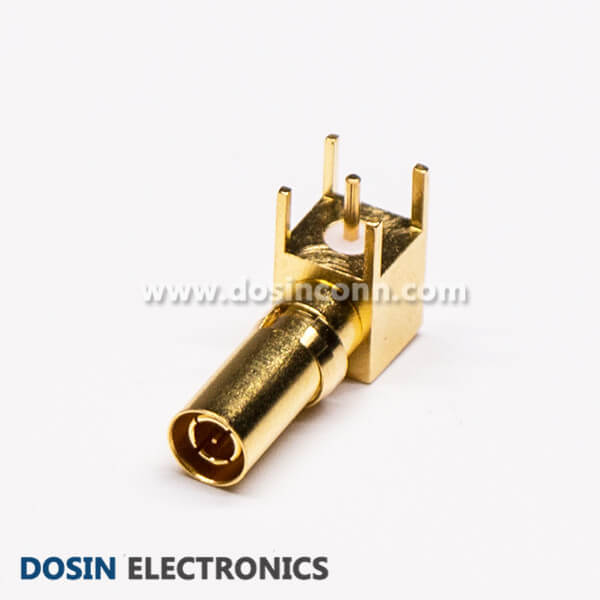

Right Angle DIN 1.0/2.3 Female Connector for PCB Mount

Interested with our DIN 1.0/2.3 Connectors?
Ask for a FREE sample for test now!

We will send you FREE sample for test before you make decision, no cost, no risk!

Ask For A free Sample

DIN 1.0/2.3 Connector Interface

DIN 1.0/2.3 Connector Technical Datasheet

Electrical Characteristics

Impedance：50 ohm or 75 ohm
Frequency Range: 0~6
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage: 750 V rms
Working Voltage: 500 V rms
Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance 3.0 mΩ (Milliohms max.)
Insulation Resistance ≧ 10⁴ mΩ

Mechanical Characteristics

Coupling: Push-pull
Contact Retention: 4 lbs min.
Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

Environmental Characteristics: -65°C ~ +165°C

DIN 1.0/2.3 Connectors

DIN 1.0/2.3 Connector Products

DIN 1.0/2.3 Bulkhead Right Angled Male Connector for PCB Mount

DIN 1.0/2.3 Right Angle Female Connector Through Hole for PCB Mount

DIN 1.0/2.3 Male 180 Degree Crimp Type Connector for 1855A Cable
