DIN 7/16 Connectors
DIN 7/16 rf connectors is a 50 Ω threaded RF connector used to join coaxial cables. It is among the most widely used high power RF connectors in cellular network antenna systems.
DIN 7/16 connector is a type of high power RF coaxial connector originally popular in Europe, it has gained widespread use in the USA and elsewhere. It out performs other non-flange options, such as N connectors and BNC connectors, when it comes to interference and intermodulation rejection or higher power handling at RF frequencies.
- Designed to minimize signal distortion from inter modulation;
- Screw on coupling ensure high durability and allow toolless application;
- Excellent performance up to 5.2GHz frequency.
DIN 7/16 Connector Products

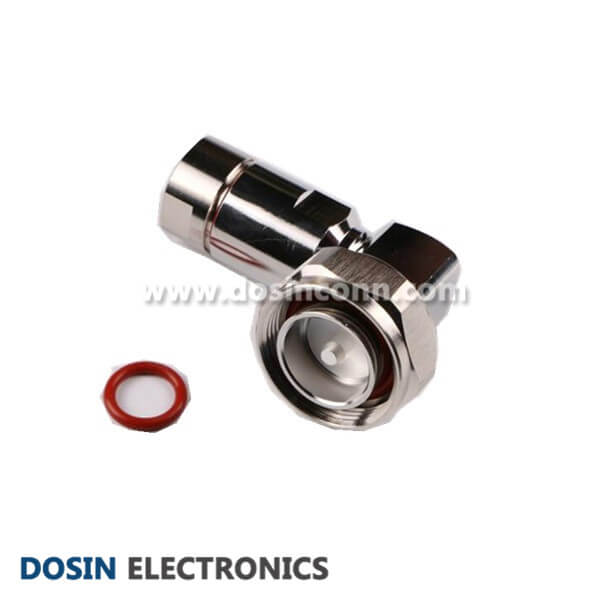

7/16 DIN Connector for LMR 600 Cable Waterproof Clamp Type

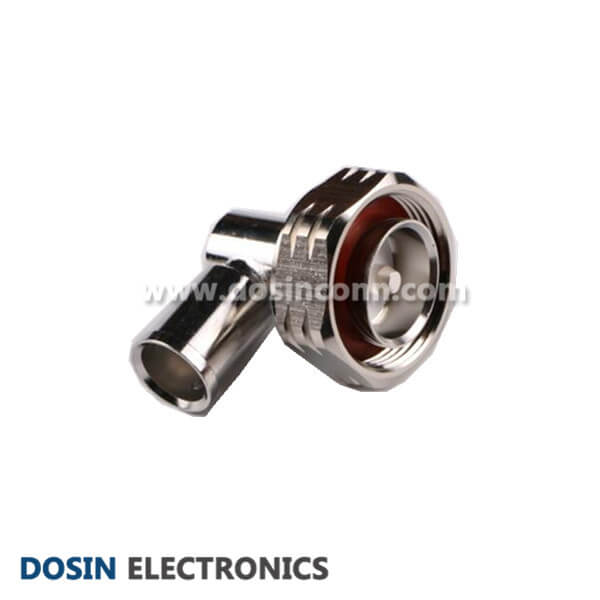

7 16 DIN Coax Connectors Solder Type Right Angled for 1/2 Cable

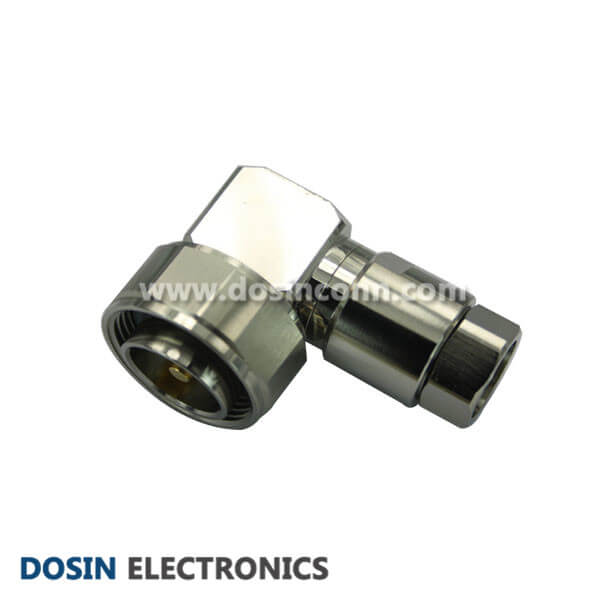

7/16 DIN Connectors Waterproof Angled Clamp Type Plug for Cable

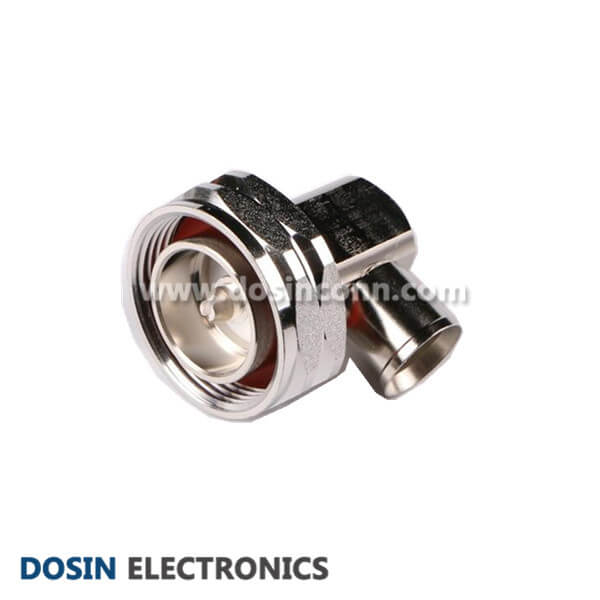

7/16 DIN Male Right Angle Connector Solder Type Plug for 7/8 Cable

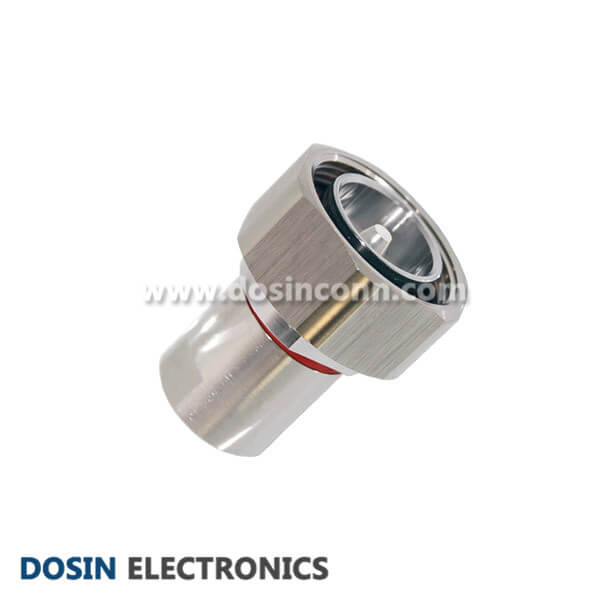

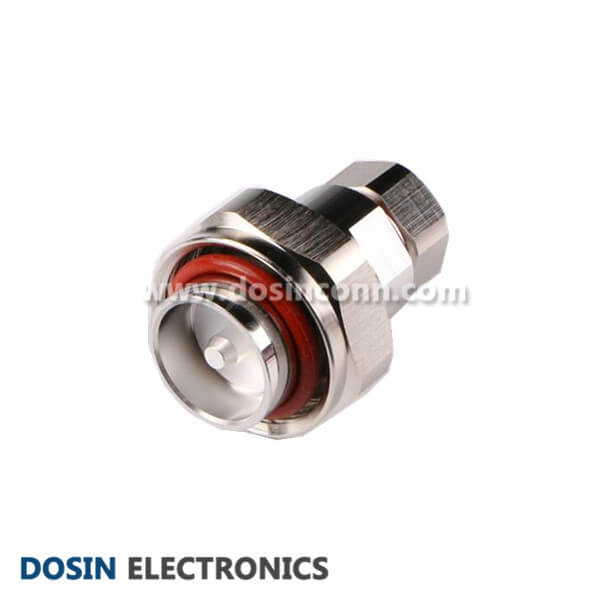

7/16 DIN M Connector Waterproof Straight Clamp Type for 1/2 Cable
7/16 DIN Connector 180 Degree Solder Type Plug for 7/8 Cable

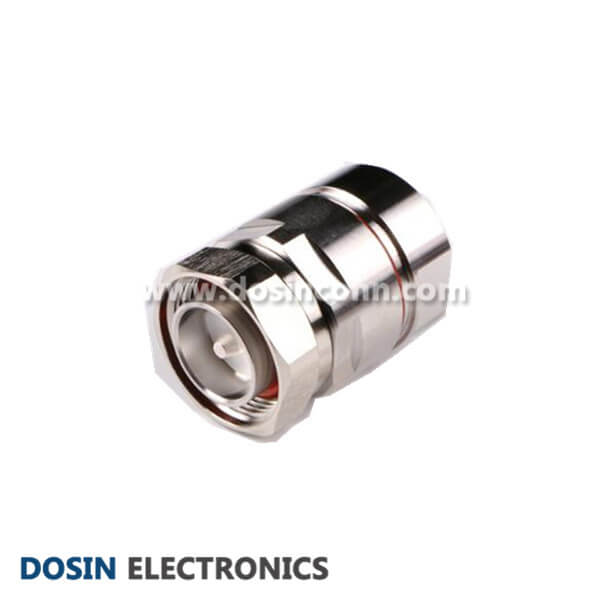

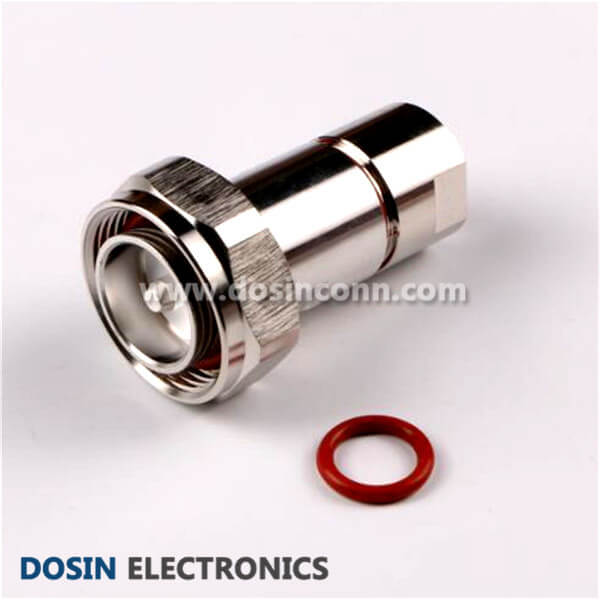

Connector DIN 7/16 Straight Plug Coaxial Connector for 1/2 Cable
7/16 DIN Coaxial Cable Connector Straight Male for Power Divider

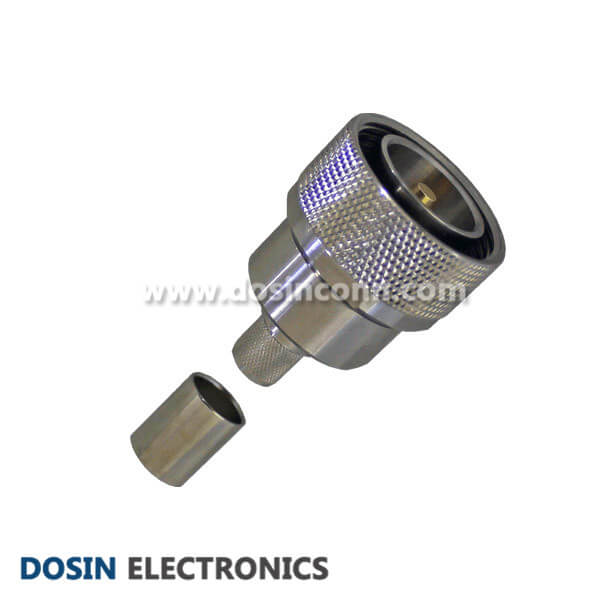

7/16 DIN Type Connector Straight Plug Crimp Type for Cable

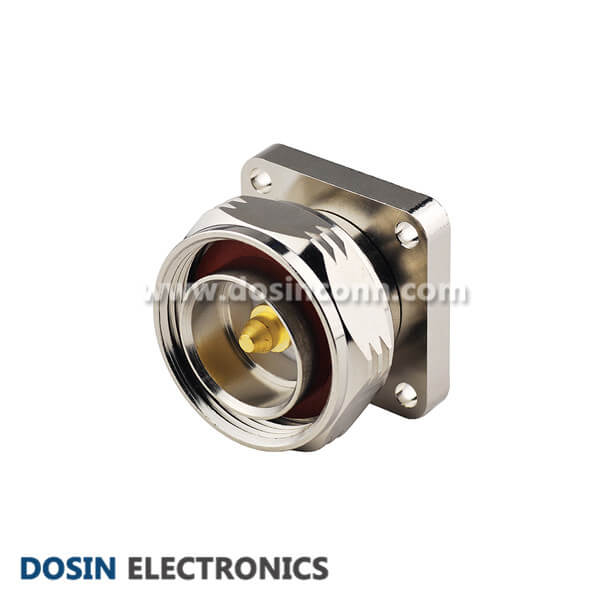

7/16 DIN Coaxial Connector Plug 4 Hole Flange Waterproof Panel Mount
7/16 DIN Male Connector Straight for 1/2 Super Flexible Cable
7/16 DIN Plug Clamp Type Right Angled Connector for LMR195 RG214
DIN 7/16 Connector Interface
DIN 7/16 Connector Technical Datasheet
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~7 GHz
- VSWR: 1.3 max
- Dielectric Withstanding Voltage: 4000 V rms
- Voltage Rating: ≦2700 V rms
- Insulation Resistance ≧ 5000 mΩ
Mechanical Characteristics
- Coupling: M29 x 1.5 Thread
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Environmental Characteristics: -40°C ~ +155°C
