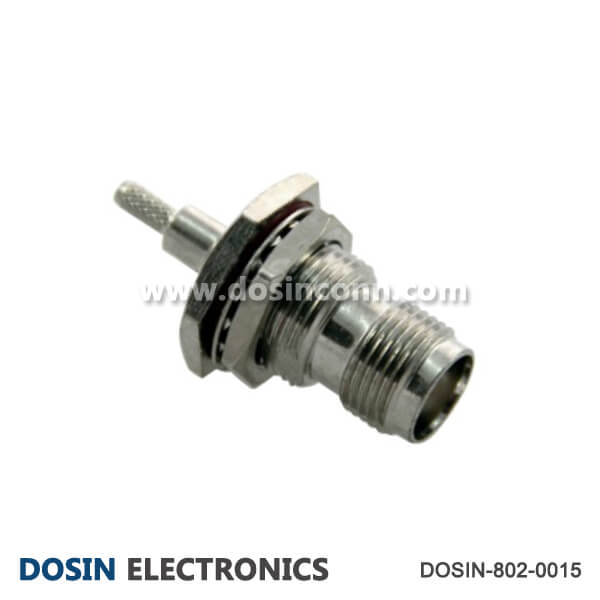

TNC Female Bulkhead Connector Straight Crimp Type for Cable

TNC Female Bulkhead Connector Straight Crimp Type for Cable

Part NO.: DOSIN-802-0015

Tags:  Cable Connector, Jack/female, Straight/180°,50Ω, Crimp Type, Waterproof, Bulkhead, RG58, RG59, RG6, RG174

Material:Copper/Delrin/Brass/Phos Bronze/Gold Plated/Nickel Plated
Features:

  • 12 Months Quality Insurance

  • Free sample available for quality test

  • Can be Customized for unique material or performance requirement

  • Thread Version of BNC used in Vibration-Intense application with high durability

  • Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50 Ω impendance.

  • High cost-effective with good quality according to MIL-C-39012

Specification
Major Technical Characteristics
Temperature Range -55°C to 155°C
Vibration 100m/S2 (10 to 2000 Hz) 15g
Impendance 50Ω
Frenquency Range DC-11GHZ
Working Voltage 500V r.m.s at sea level
Workstandinging Voltage 1500V r.m.s at sea level
Center Contact Resistance ≦10mΩ
Outer Contact Resistance ≦2.5mΩ
Insulation Resistance ≧5000MΩ
Center conductor Retention Force ≦0.57N
Insertion Loss ≤0.20dB
VSWR Straight ≤1.22/3GHz
VSWR Right Angle ≤1.30/3GHz
Durability (Mating) ≧500(cycles)

VSWR: Voltagge Standing Wave Ratio

Material & Finish

Component Numer Material Finish
Body Brass Nickel
Insulator Delrin Natural
Center contact Phosphor Bronzec Gold
Delivery & Payment

Payment Term

Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union

Delivery Term

Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Dongguan Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
Drawing

Accessories
Photo Description Function
nickel-plating-hex-nut Nickel Plating Hex Nut Panel Lock
nickel-plating-washer Nickel Plating Washer Panel Lock
crimp-feruule Crimp Ferrule Wire Tack
rubber-o-ring Rubber O-ring Waterproof

Notes:Accessories listed Above can be customized as requried, please contact our sales team for detailed dimension and material options.
