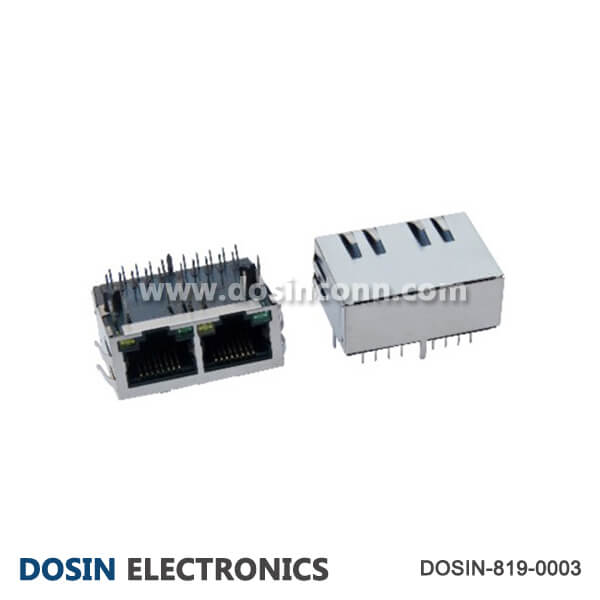

Dual RJ45 Connector Shield Jack with LED and EMI

Dual RJ45 Connector Shield Jack with LED and EMI

Part NO.: DOSIN-819-0003
Tags:  RJ45 PCB Connectors, Shield, dual port, Jack/female, 90 Degree, with LED and EMI

Features:

  • 12 Months’ Quality Insurance;

  • Free sample available for quality test;

  • Can be Customized for unique material or performance requirement;

  • Complies with IEEE standard and all 10/100 Ethernet specifications including 350 UH with 8ma DC bias;

  • OEM & ODM available for special design with competitive Factory price.

Specification

Technical Characteristics

Operating Temperature 0°C  to +70°C
Storage Temperature -40°C  to +85°C
Turn Ratio TX&RX=1:1±5%
Insertion Loss 1~80MHz: -1.0dB Max
100MHZ:-1.5dB Max
Return Loss 1~30MHZ:-20dB Min
60~80MHZ MHZ:-12dB Min
Common Mode Rejection 1~30MHZ:-20dB Min
200MHZ:-20dB Min
Crosstalk 1~100MHZ:-35Db Min
OCL 100KHZ.0.1V,8Madc:350Uh Min
Hi-Pot 1500VAC.1Ma.1Sec

Material

Insulater High Temp. thermoplastic
Complies with UL 94v-0
Contacts Phosphor Bronze Hard Temper with 6µ” gold plating;
nickel on contact mating area
Matte tin plating on soldering tail
Shield Stainless Steel with Tin dipped tails
LED Tin plating on LED tails
